Product Data Sheet
AMR/AGV- 7 Shock Absorbing Caster (Medium Duty)
  AQPU (grey round) Wheel Diameter × Wheel Width 100 x 31mm
  EAN
      KS-11650407602123

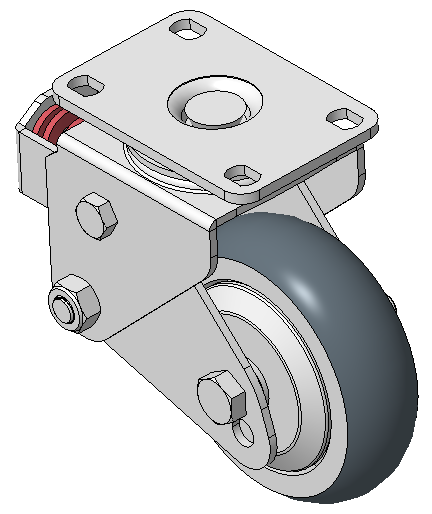

Spring-loaded Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 75x45 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, aluminum gray Bearing—Ball Bearing
  Wheel tread: Made of high-quality polyurethane
  Wheel Center: iron core/cast iron

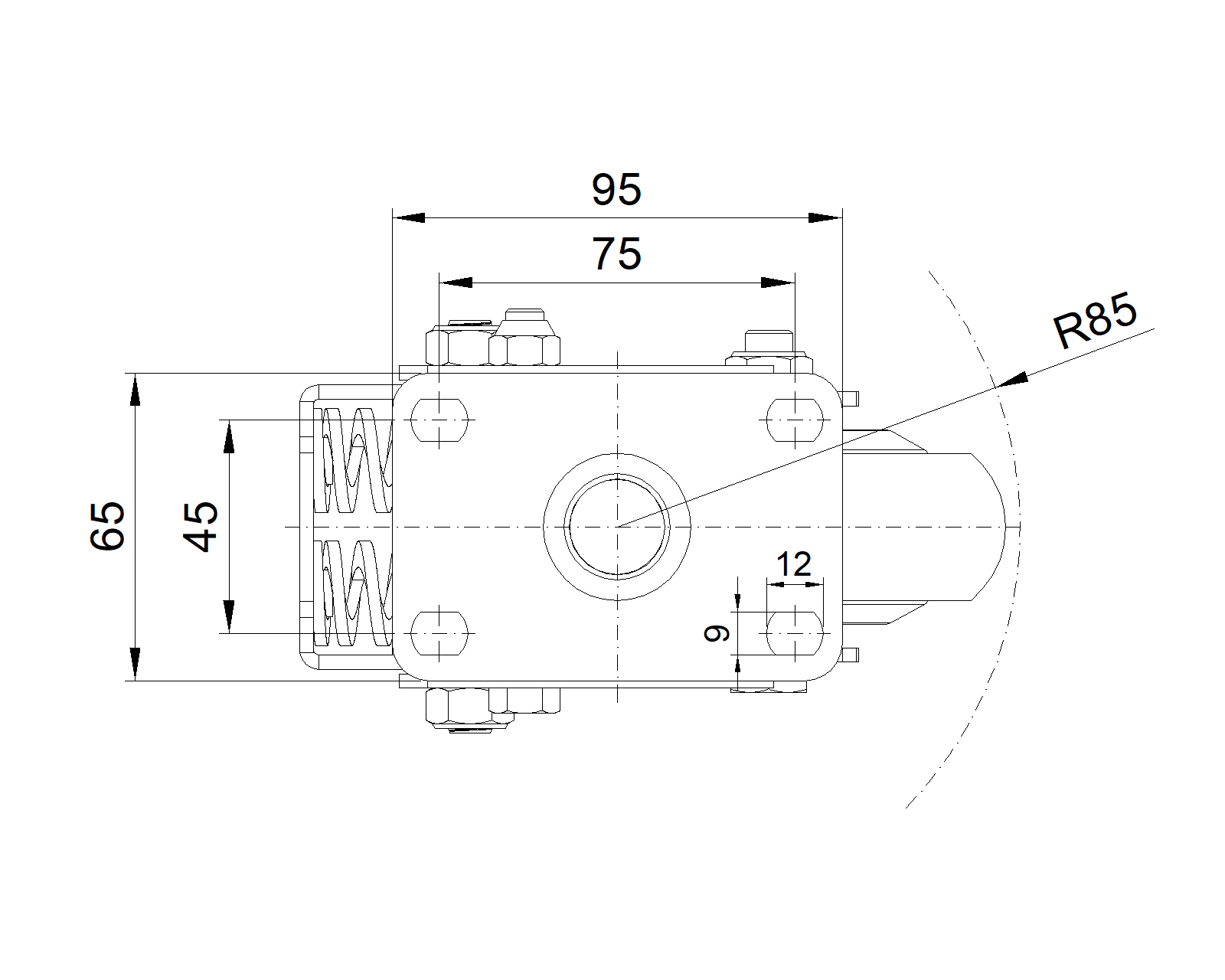

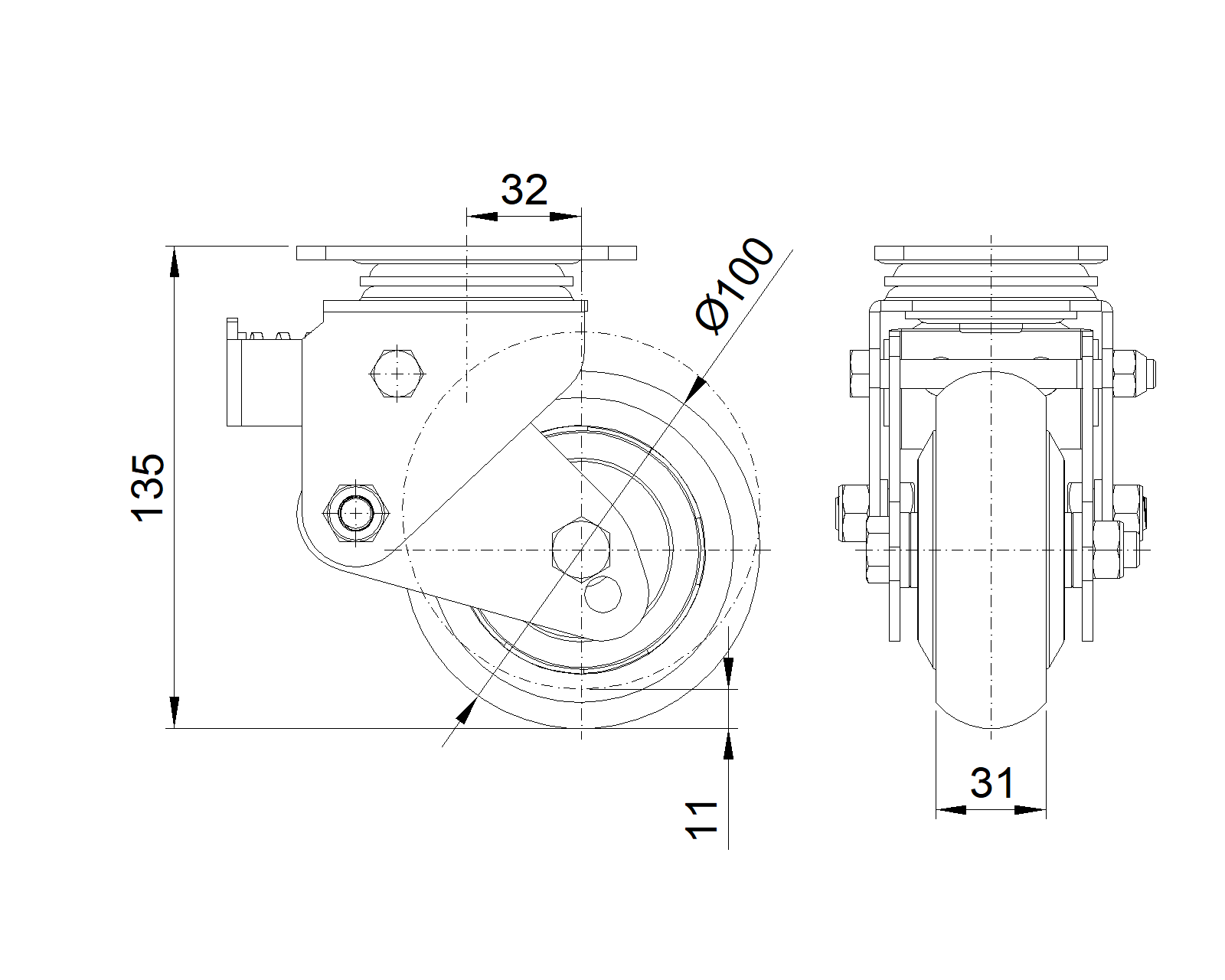

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 100mm

  Wheel Width 31mm
  Wheel Bearing Wheels With Ball Bearings
  Plate Size 95 x 65mm
  Bolt Hole Spacing 75 x 45mm
  Plate Hole 12 x 9mm
  Offset 32mm
  Swivel Interference 170mm
  Overall Height 135mm
  Swivel Radius 85mm
  Hardness Of Tread 77±5° Shore A
  Load Capacity (Dynamic) 180kgs


  Rolling Resistance
        ● ● ● ● ●

  Operating Noise        ● ● ● ● ●

  Floor Surface Preservation  ● ● ● ● ●

  Load Capacity (Static) 270kgs
  Temperature -20°C to +70°C
  Fork Type Swivel Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 2.54kgs
  Standard ISO22883
