    Product Data Sheet
AMR/AGV- 7 Shock Absorbing Caster (Medium Duty)
　　W Resolute (black, dark gray) Wheel Diameter × Wheel Width 125 x 38mm
　　EAN
　　　　　 KS-11650507452213
　　　　　 　　　

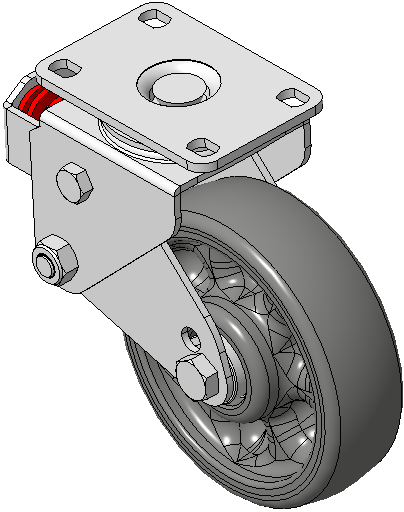

Spring-loaded Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 75x45 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread Pearl-finish dark gray, Bearing—Ball Bearing
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

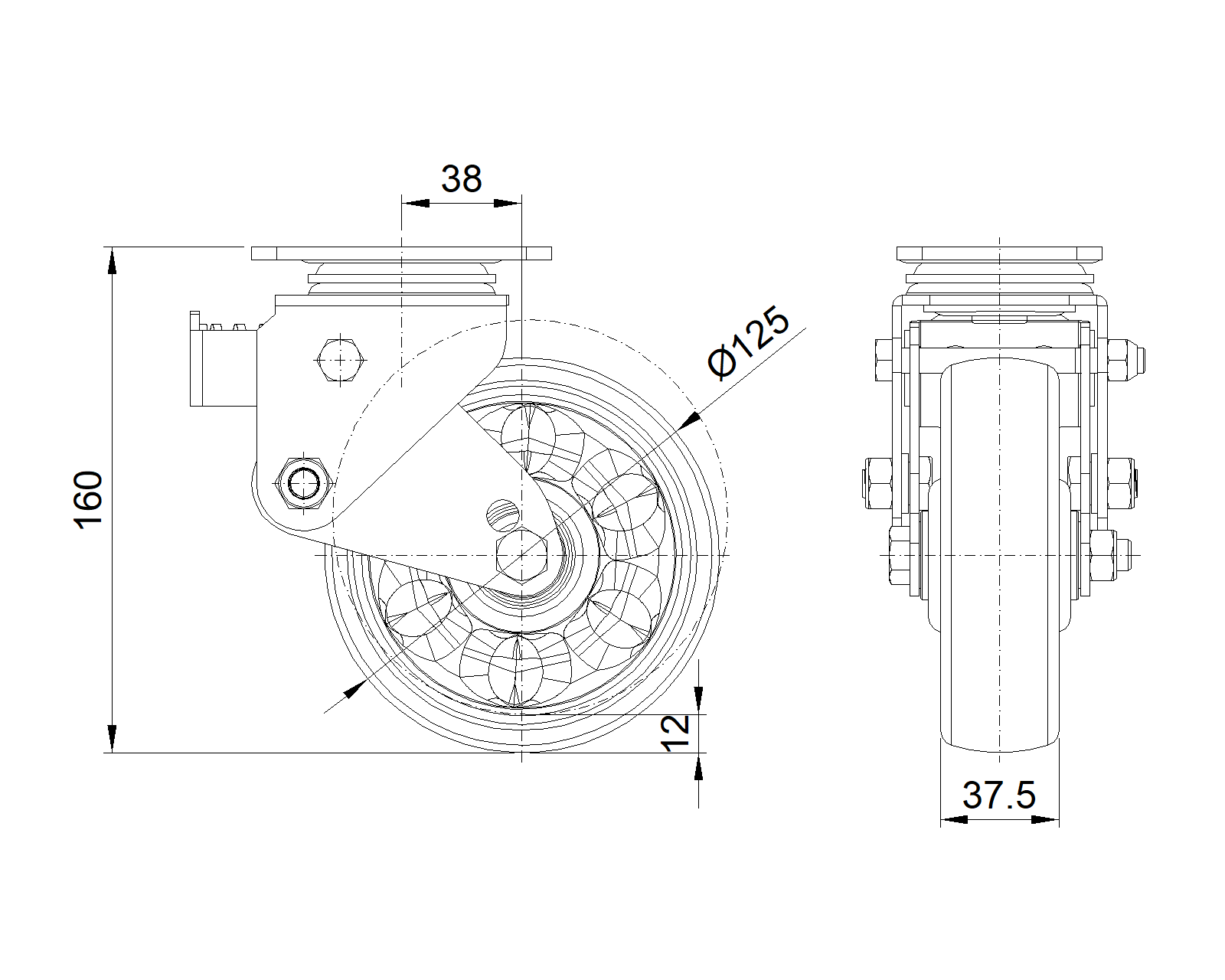

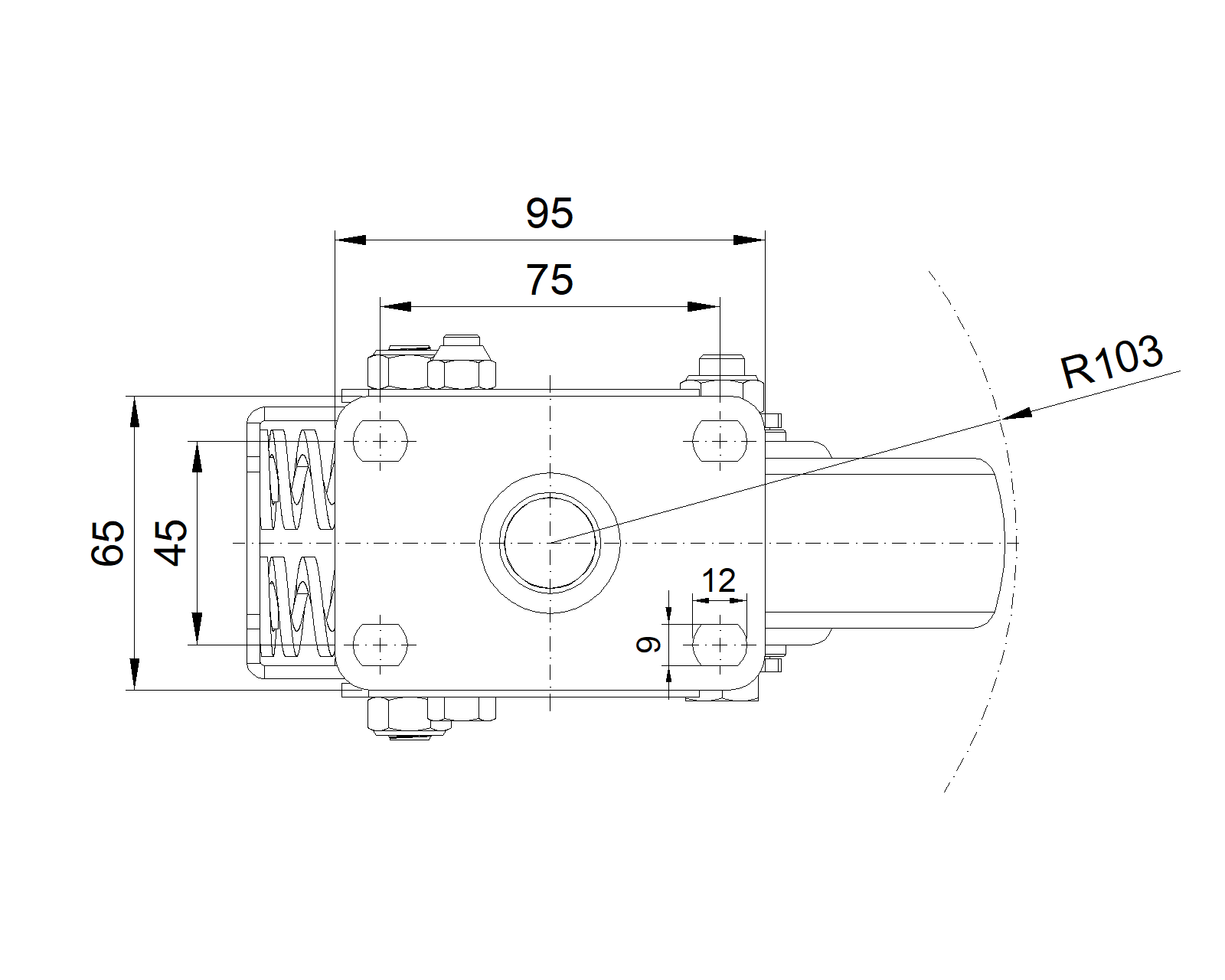

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 38mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 38mm　
　　Swivel Interference 206mm　
　　Overall Height 160mm　
　　Swivel Radius 103mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 125kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 187.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.69kgs　
　　Standard ISO22883
　　
　　
