    Product Data Sheet

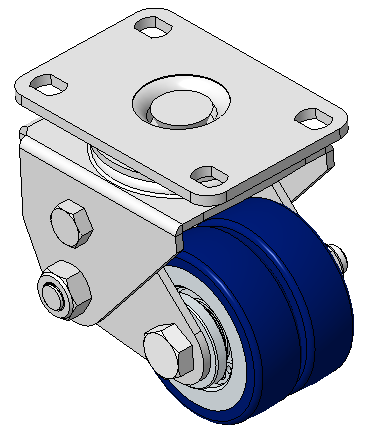

AMR/AGV- 7 Shock Absorbing Caster (Medium Duty)
　　ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm
　　EAN
　　　　　 KS-11655207802013
　　　　　 　　　
Spring-loaded Casters with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 75x45 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron blue Bearing—special Ball Bearing for reduced Rolling Resistance ZQPU Dual Wheels, Ergonomic design for easier starting and turning
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

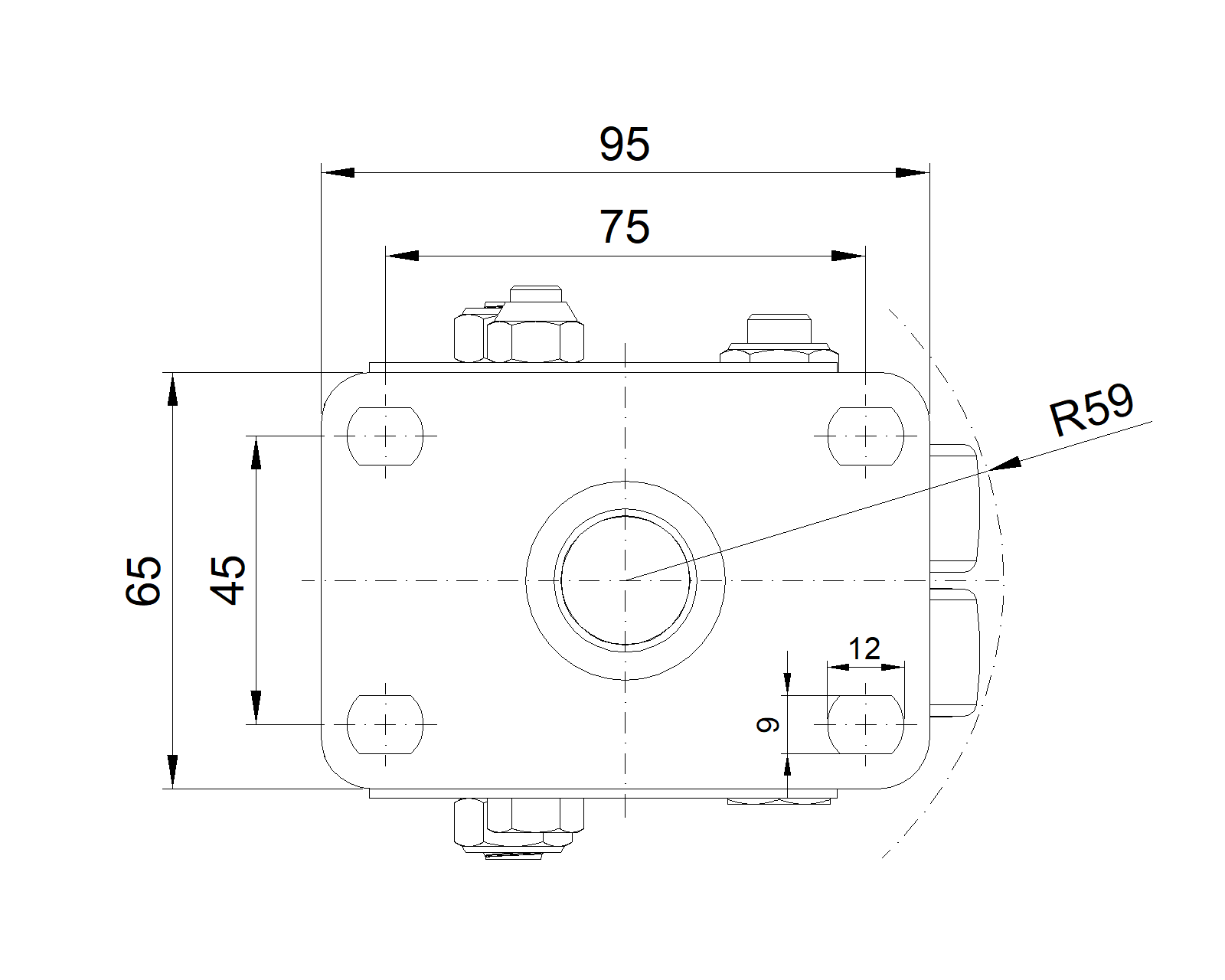

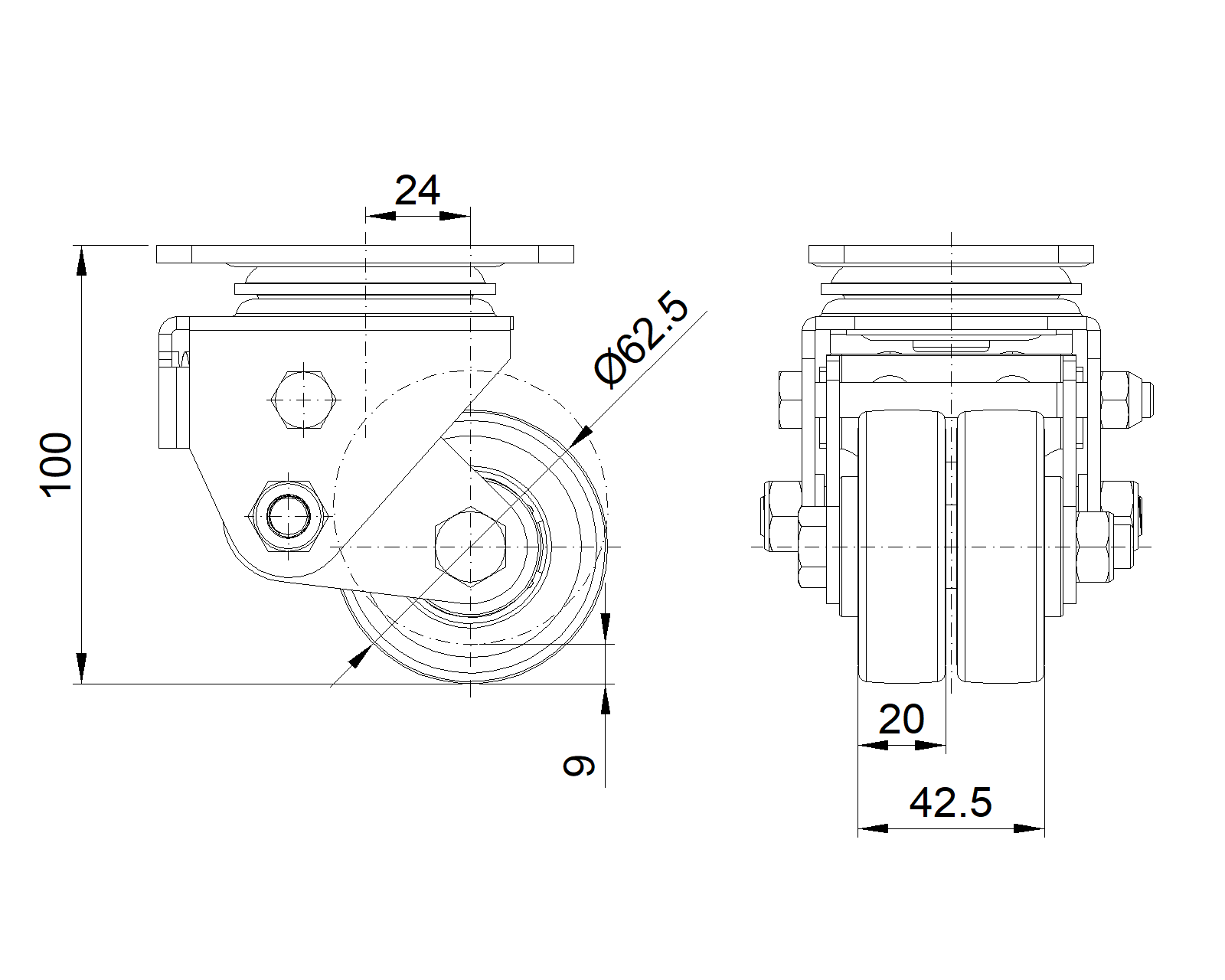

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 62.5mm　

　　Wheel Width 42.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 95 x 65mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 24mm　
　　Swivel Interference 118mm　
　　Overall Height 100mm　
　　Swivel Radius 59mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.84kgs　
　　Standard ISO22883
　　
　　
