    Product Data Sheet

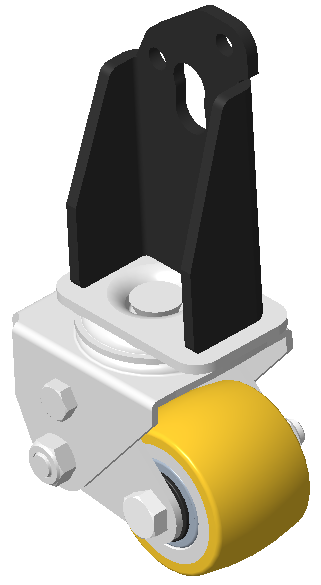

AMR/AGV- 7 Shock Absorbing Caster (Medium Duty)
　　HPU (brown orange yellow) Wheel Diameter x Wheel Width 62.5 x 45mm
　　EAN
　　　　　 KS-11655207762911
　　　　　 　　　
Sliding Spring-loaded Caster, Welded bracket/left (black paint) Zine-Plated, Mounting Type - Top Plate, 75x45 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread Iron orange, Bearing—Ball Bearing
　　Wheel Tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

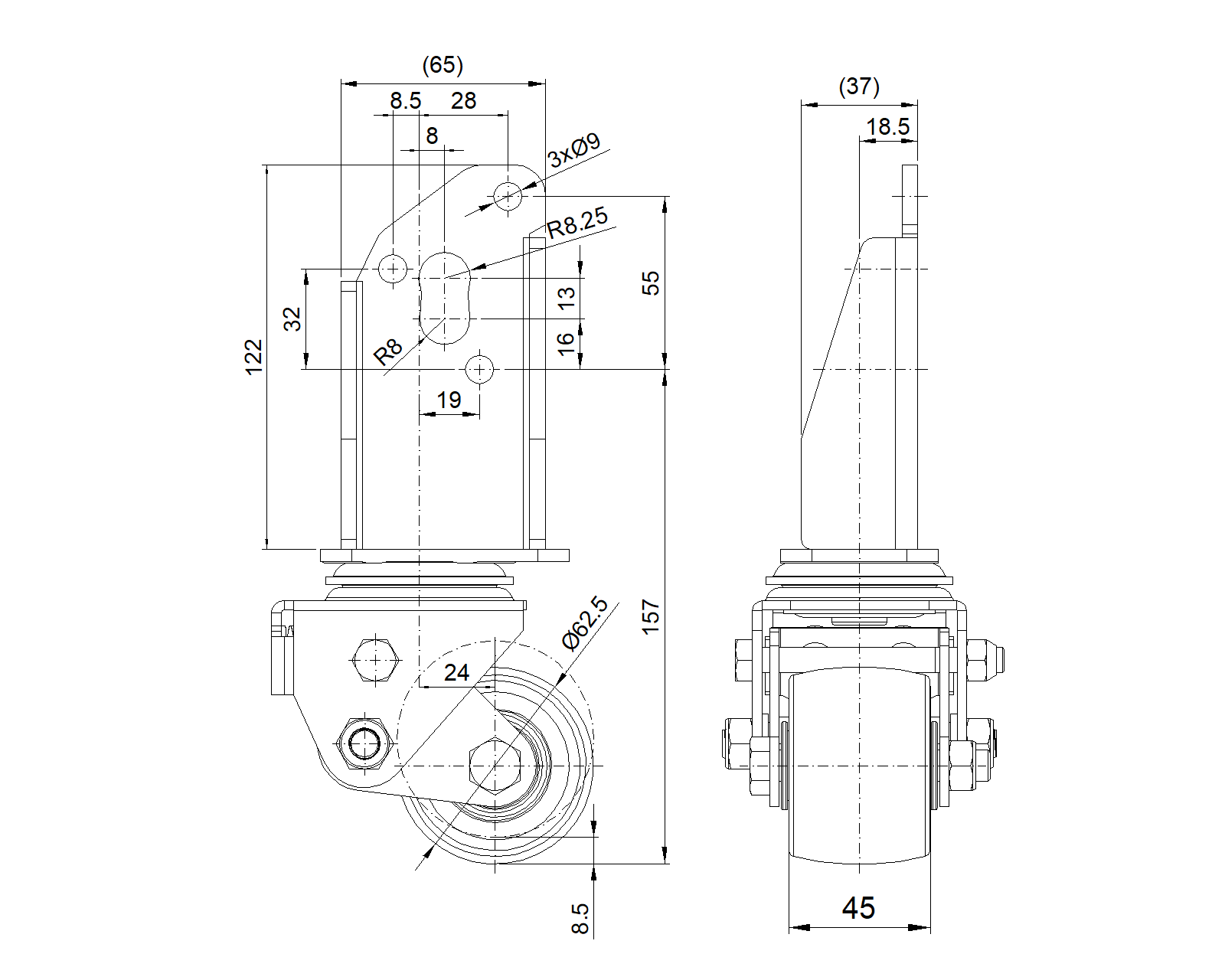

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 62.5mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 79 x 50mm　
　　Bolt Hole Spacing 51x68.75mm　
　　Plate Hole 　
　　Offset 24mm　
　　Swivel Interference 116mm　
　　Overall Height 100mm　

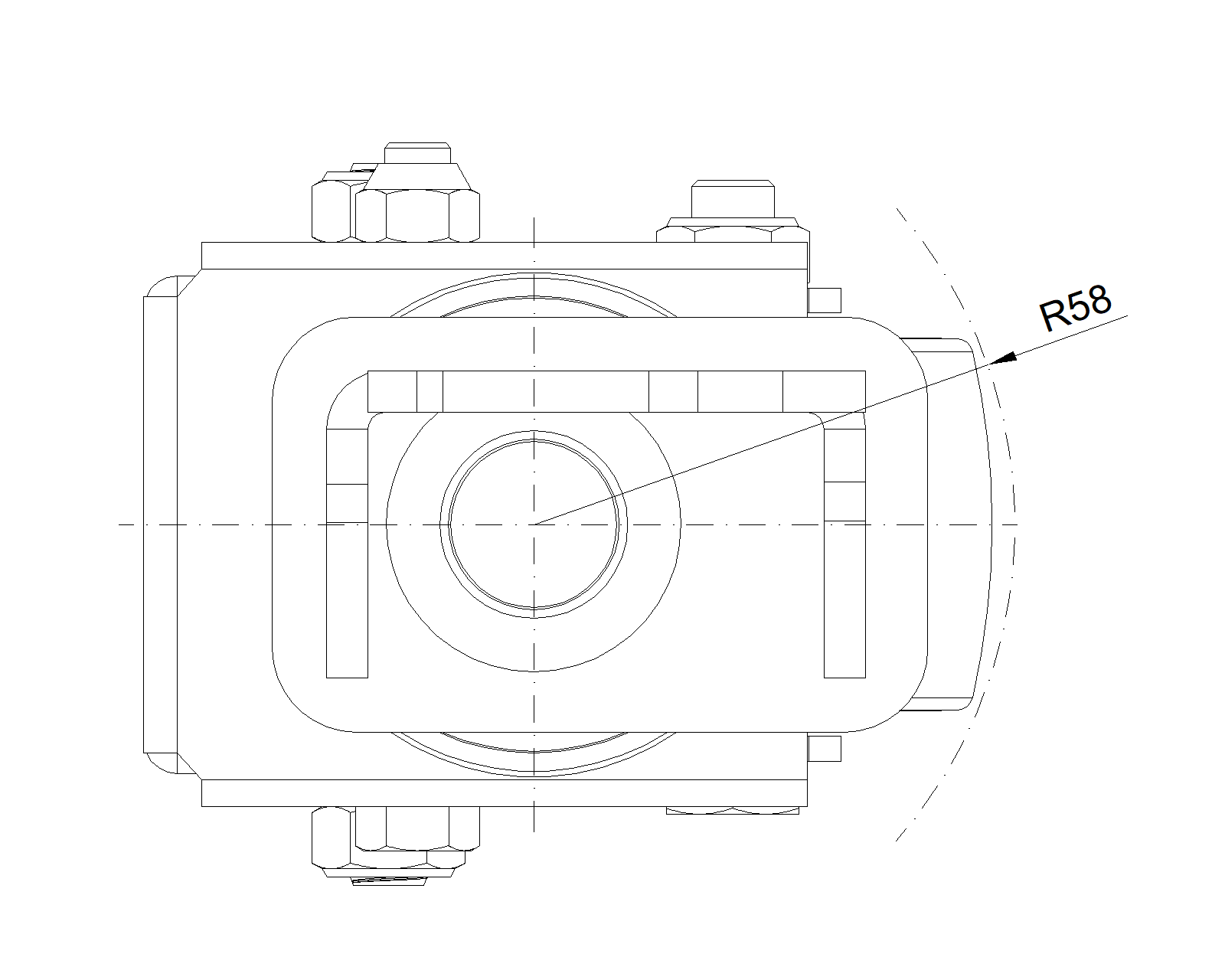

　　Swivel Radius 58mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.18kgs　
　　Standard ISO22883
　　
　　
