Picture may differ from original product

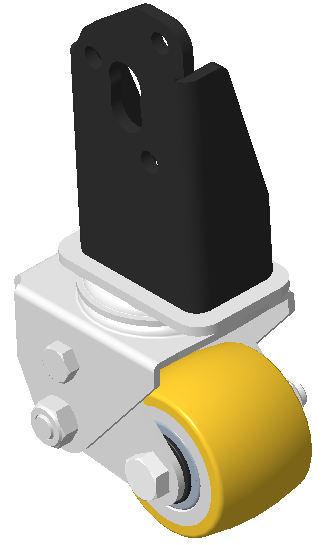

AMR/AGV- 7 Shock Absorbing Caster (Medium Duty)
HPU (brown orange yellow) Wheel Diameter x Wheel Width 62.5 x 45mm
KS-11655207762911A
Wheel Diameter62.5mm
Load Capacity (Dynamic)200kgs
Overall Height100mm
Wheel BearingWheels With Ball Bearings
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 62.5mm
- Wheel Width
- 45mm
- Wheel Bearing
- Wheels With Ball Bearings
- Plate Size
- 79 x 50mm
- Bolt Hole Spacing
- 51x68.75mm
- Plate Hole
- Offset
- 24mm
- Swivel Interference
- 116mm
- Overall Height
- 100mm
- Swivel Radius
- 58mm
- Hardness Of Tread
- 92±5° Shore A
- Load Capacity (Dynamic)
- 200kgs
- Load Capacity (Static)
- 300kgs
- Temperature
- -20°C to +70°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 2.18kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
