    Product Data Sheet
1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
　　QPU (blue round) Wheel Diameter × Wheel Width 75 × 45mm
　　EAN
　　　　　 KS-11650305532013
　　　　　 　　　

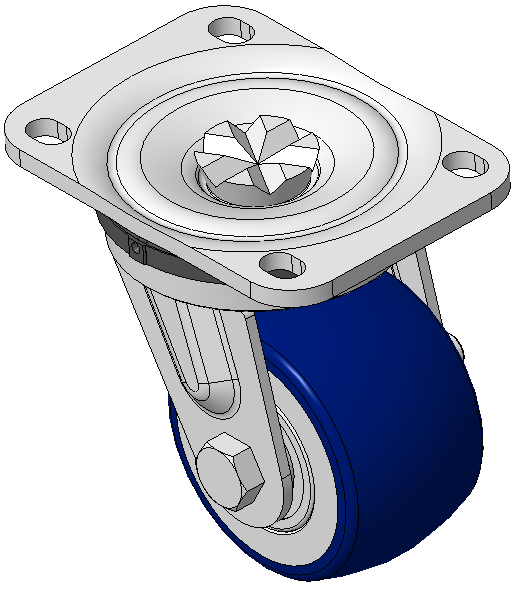

Swivel castor, Welded Caster Fork Extended control lever surface, Top Plate Mounting Type, Hole spacing 80x60 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread Iron blue, Bearing - Ball Bearing
　　Wheel tread: Made of high quality polyurethane
　　Wheel Center: iron core/cast iron

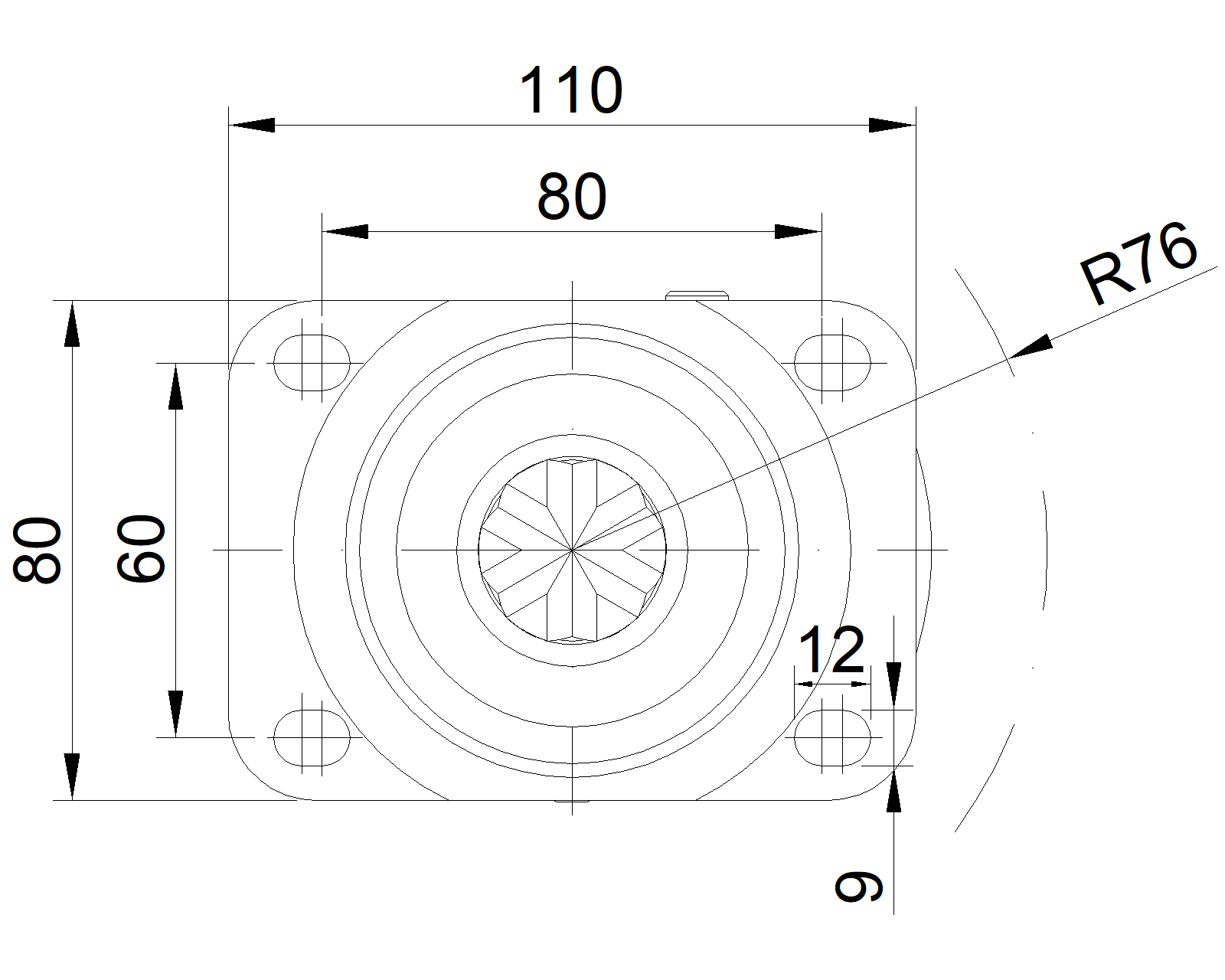

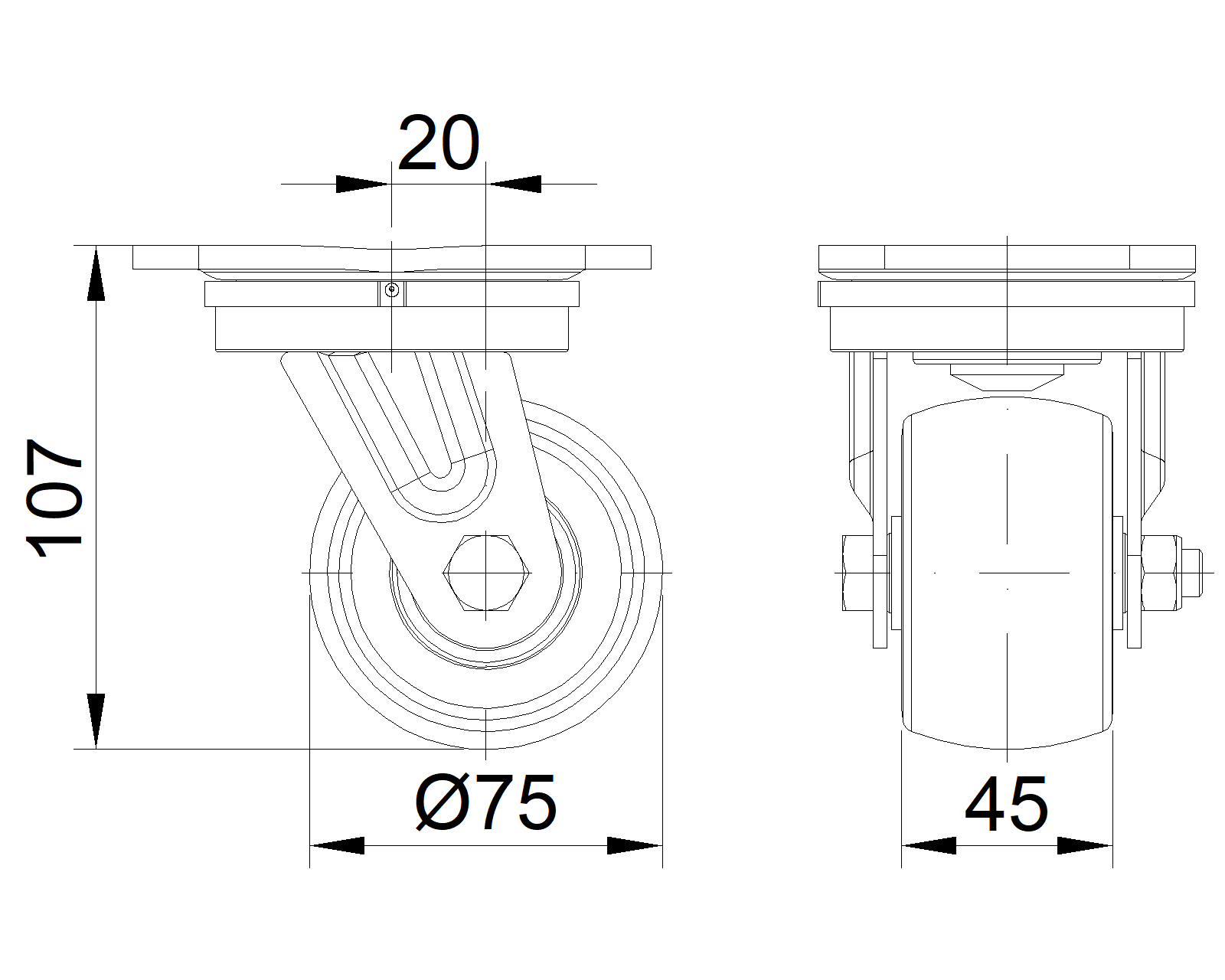

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 110 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 12 x 9mm　
　　Offset 20mm　
　　Swivel Interference 152mm　
　　Overall Height 107mm　
　　Swivel Radius 76mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.67kgs　
　　Standard ISO22883
　　
　　
