    Product Data Sheet
1168 Levelling Caster Series
　　ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm
　　EAN
　　　　　 　　　
　　YJ-11680250802013 　　　

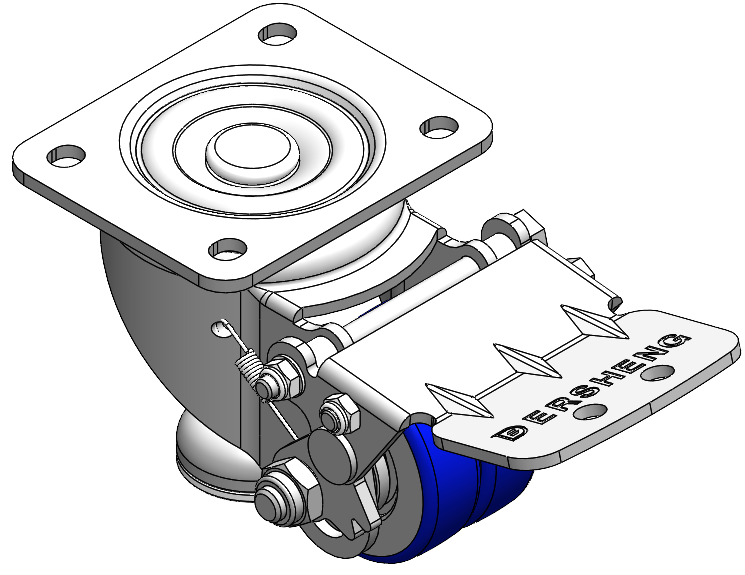

Height Adjustable Leveling Caster. Top Plate with Riveted, Stamping Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing, Long Pedal. Zine-Plated, Top Plate (4T) Mounting Type mechanism with Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color, Bearing with Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

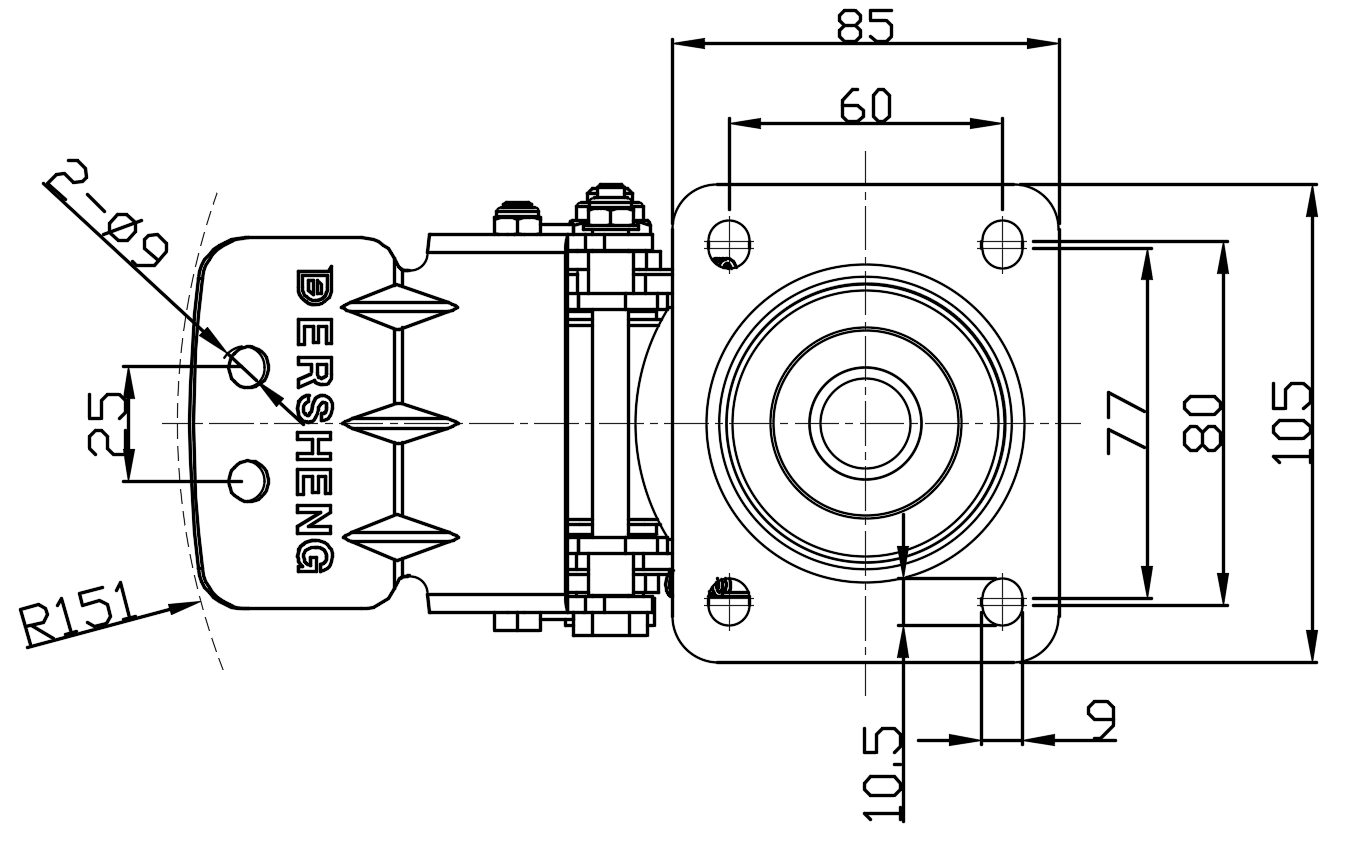

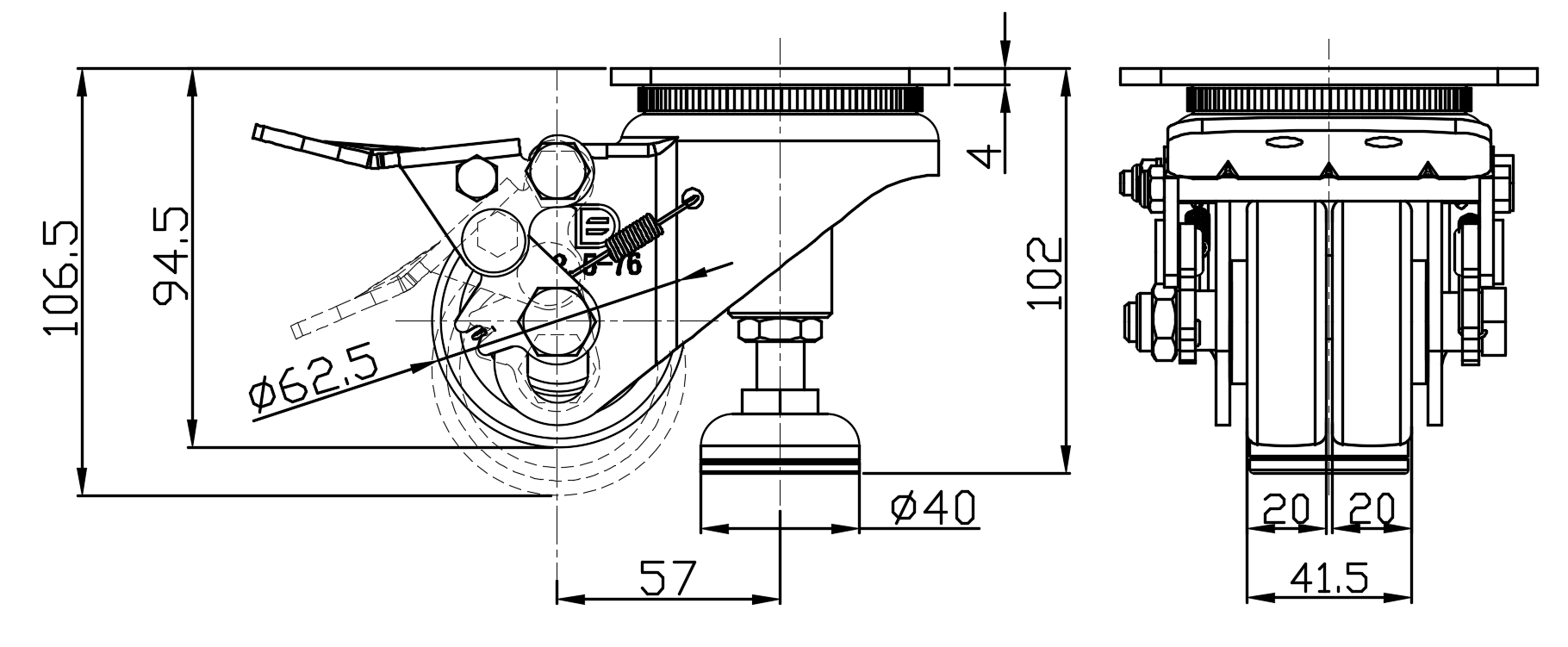

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 62.5mm　

　　Wheel Width 41.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 105 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 10.5 x 9mm　
　　Offset 57mm　
　　Swivel Interference 302mm　
　　Overall Height 102mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.14kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm

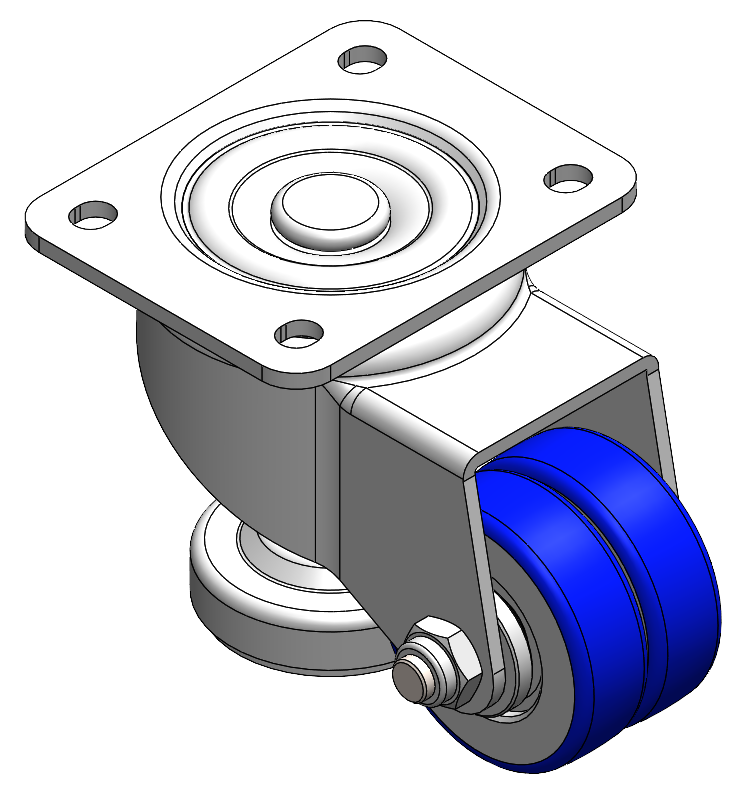

YJ-11680250802063
62.5 mm 200 Kgs 102 mm
Swivel Caster with Riveted, Stamping Fork and European standard holes. Zine-Plated, Top Plate (4T) Mounting Type mechanism with Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
1168 Levelling Caster Series
ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm

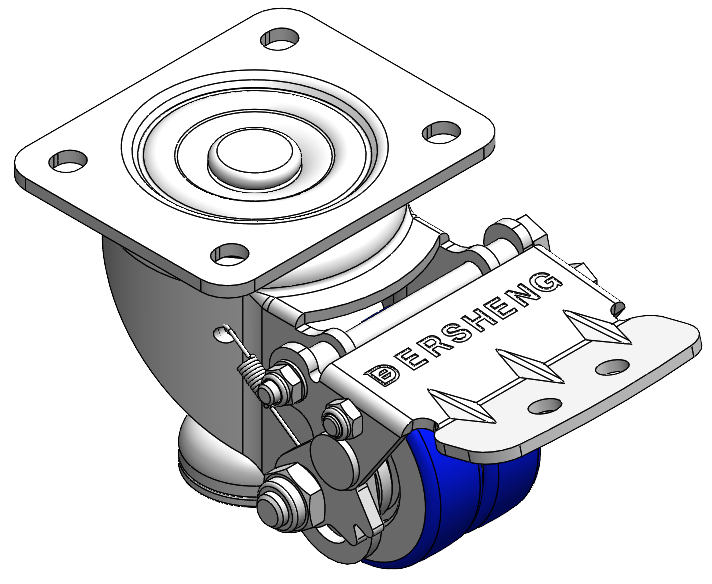

YJ-11680250802023
