    Product Data Sheet

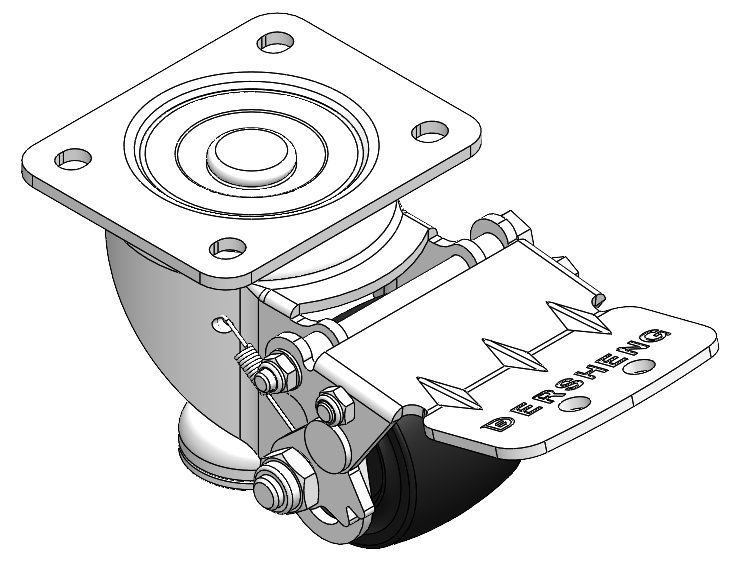

1168 Levelling Caster Series
　　King Kong Wheel (black) Wheel Diameter × Wheel Width 62.5×45 mm
　　EAN
　　　　　 　　　
　　YJ-11680250712013 　　　
Height Adjustable Leveling Caster. Top Plate Riveted and Stamping with European standard holes, Long Pedal. Zine-Plated, Top Plate (4T) Mounting Type mechanism with Height Adjustable Stand. Reinforced Polypropylene and tread. Black, Bearing—Ball Bearing.
　　Wheel Tread: Thermoplastic (POK)
　　Wheel Center: Thermoplastic (POK)

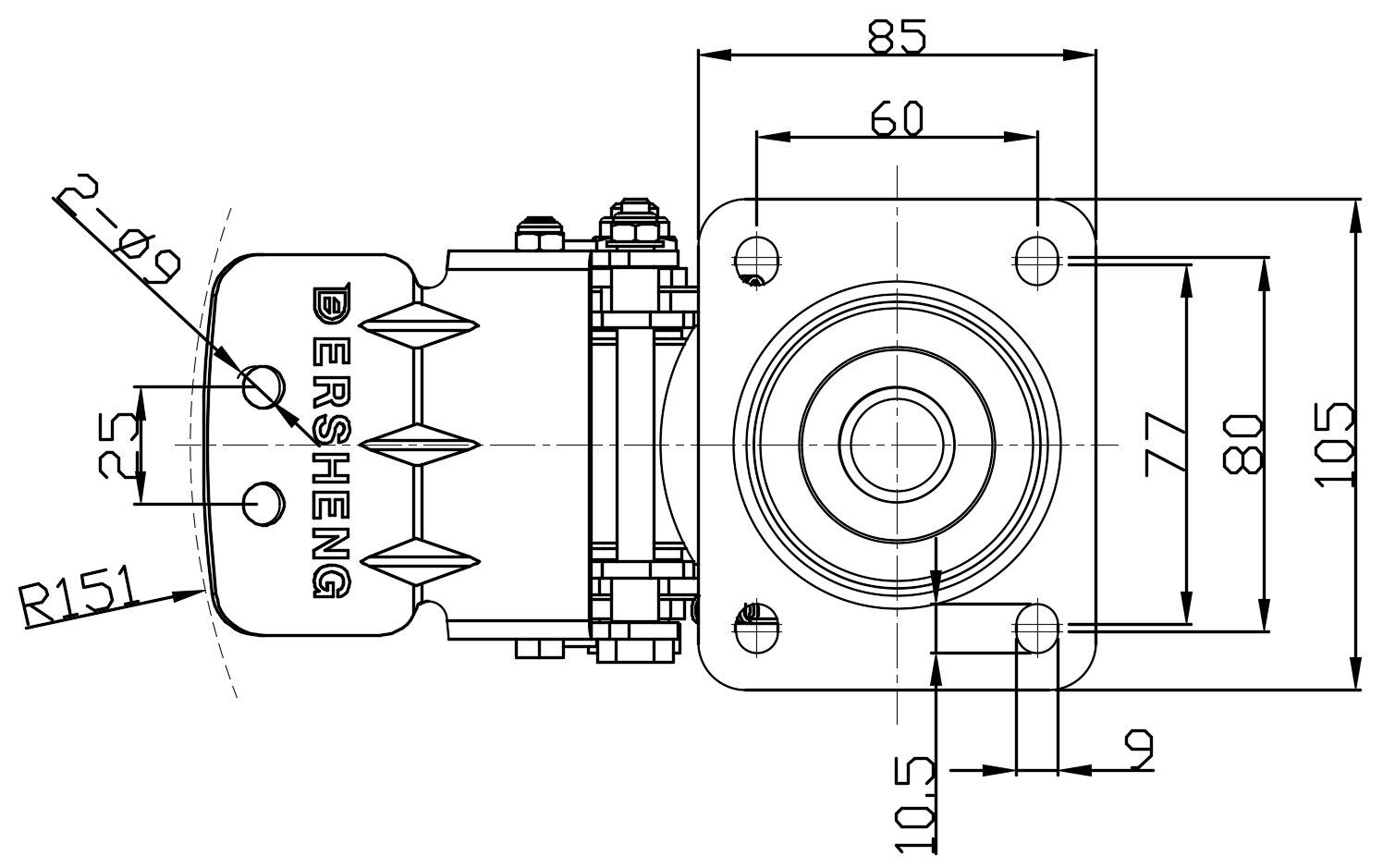

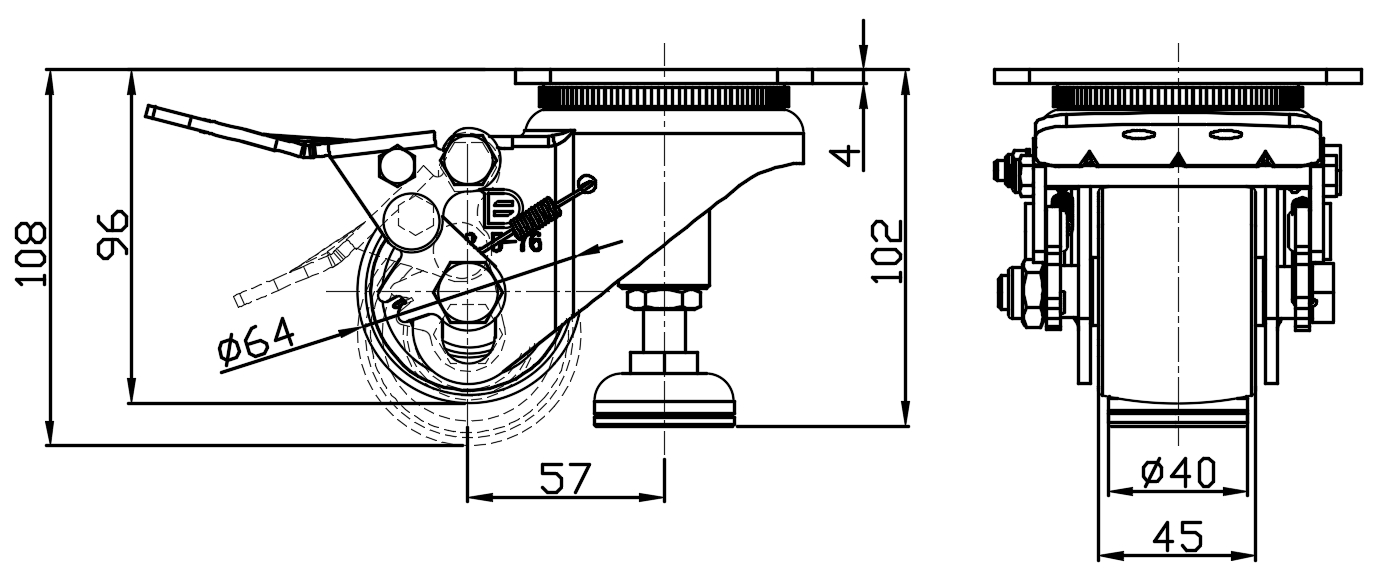

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 64mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 105 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 10.5 x 9mm　
　　Offset 57mm　
　　Swivel Interference 302mm　
　　Overall Height 102mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.9kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1168 Levelling Caster Series
King Kong Wheel (black) Wheel Diameter × Wheel Width 62.5×45 mm
YJ-11680250712063
64 mm 200 Kgs 102 mm

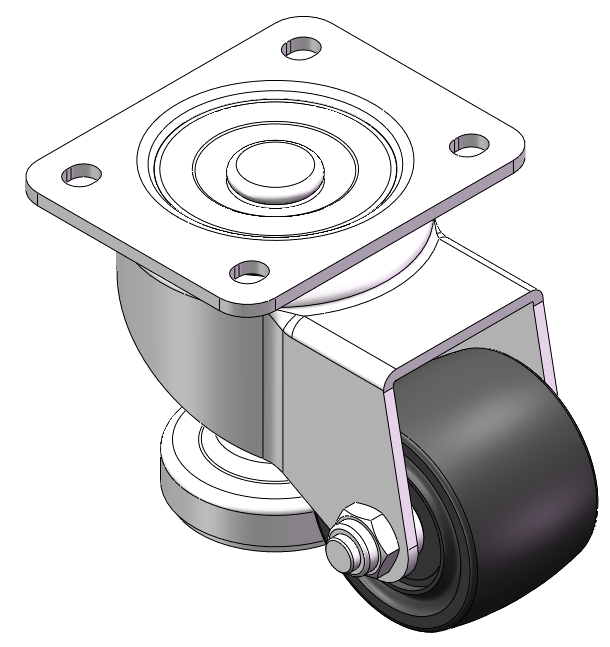

Swivel Caster with Riveted, Stamping Fork and European standard holes. Zine-Plated, Top Plate (4T) Mounting Type mechanism with Height Adjustable Stand. Reinforced Polypropylene and tread. Black, Bearing—Ball Bearing.
1168 Levelling Caster Series
King Kong Wheel (black) Wheel Diameter × Wheel Width 62.5×45 mm
YJ-11680250712023
64 mm 200 Kgs 102 mm

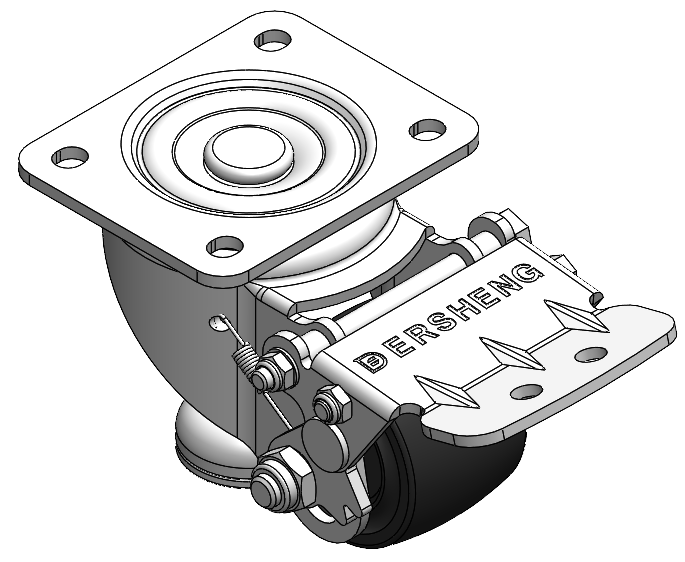

Height Adjustable Leveling Caster. Top Plate Riveted and Stamping with European standard holes, Short Pedal. Zine-Plated, Top Plate (4T) Mounting Type mechanism with adjustable support. Reinforced Polypropylene and tread. Black, Bearing—Ball Bearing.
