    Product Data Sheet
1168 Levelling Caster Series
　　ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
　　EAN
　　　　　 　　　
　　YJ-11680300801013 　　　

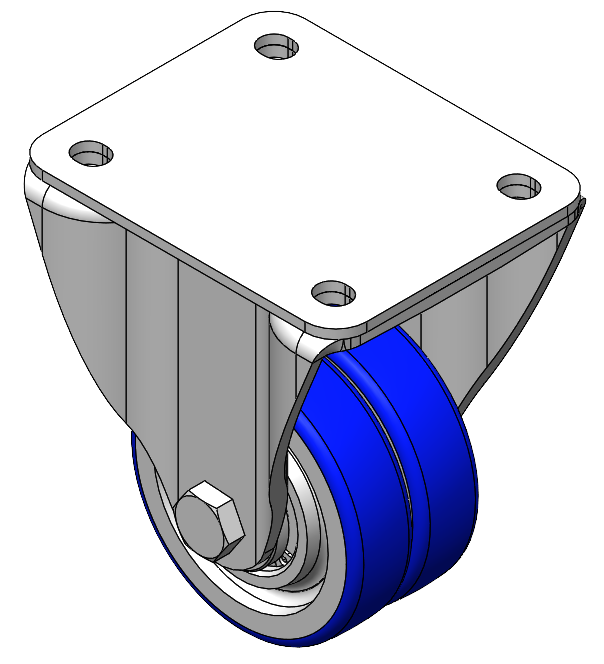

Rigid Caster with one-piece Stamping bracket 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

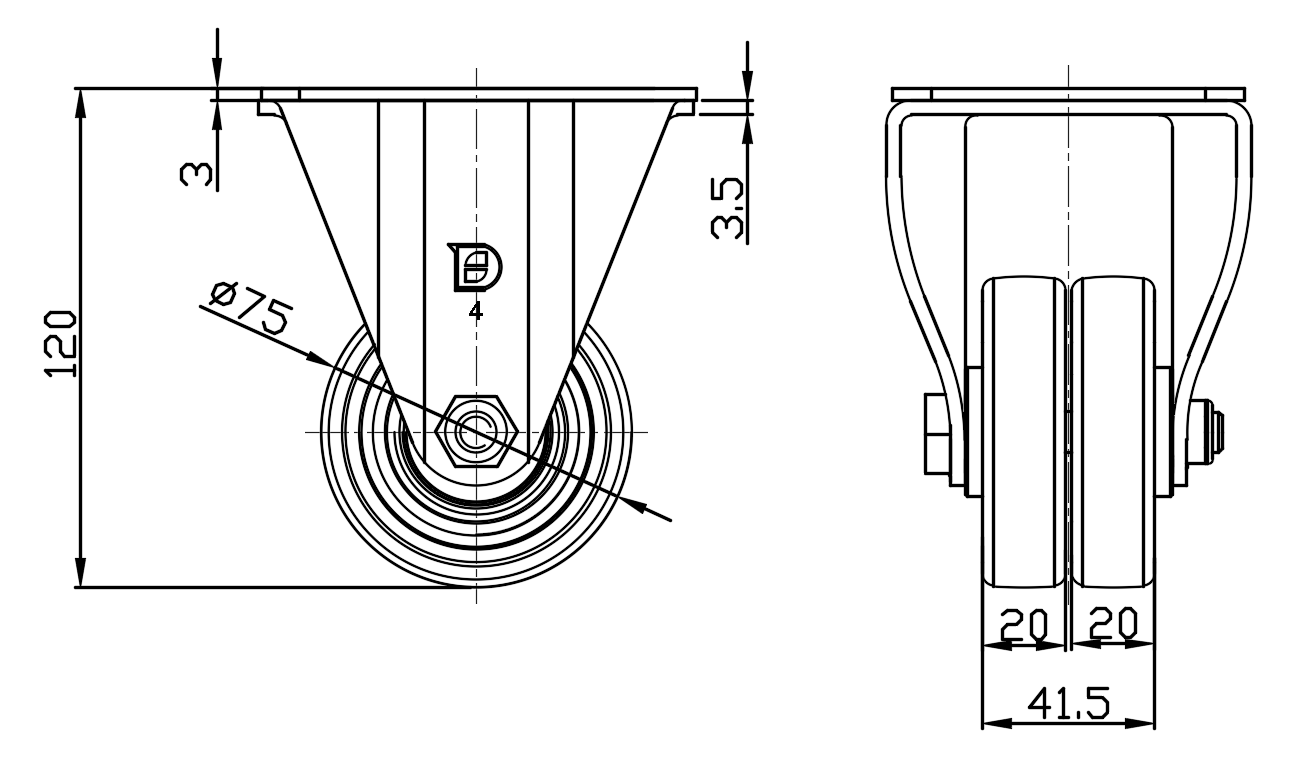

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 41.5mm　
　　Wheel Bearing Wheels With Ball Bearings

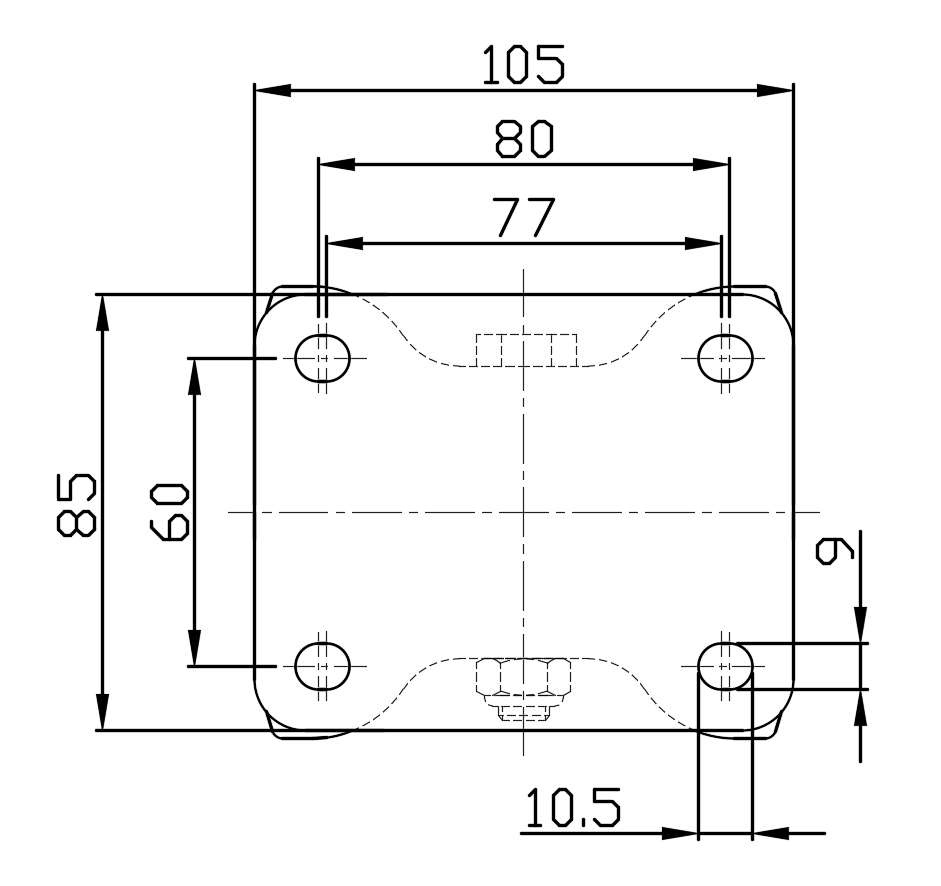

　　Plate Size 105 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 10.5 x 9mm　
　　Overall Height 120mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.46kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802053
75 mm 300 Kgs 120 mm

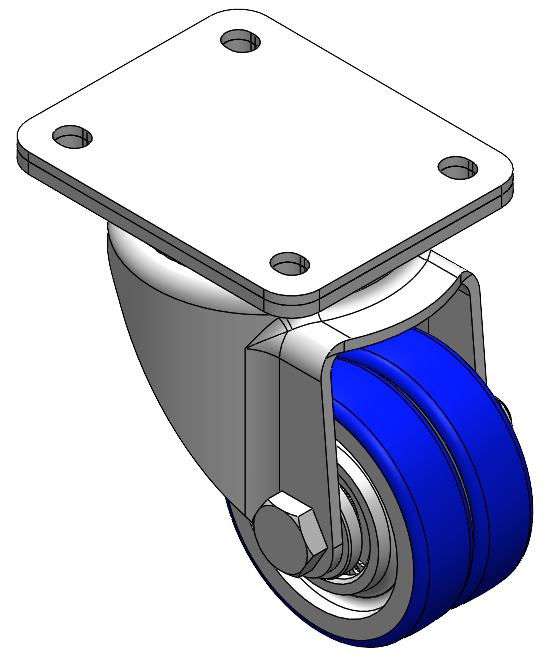

Swivel Caster with Riveted Fork and Stamping bracket - European standard holes Zine-Plated, Mounting Type - Top Plate Cast Iron Wheel Center, High Quality Polyurethane tread Blue color, Bearing - Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802073
75 mm 220 Kgs 120 mm

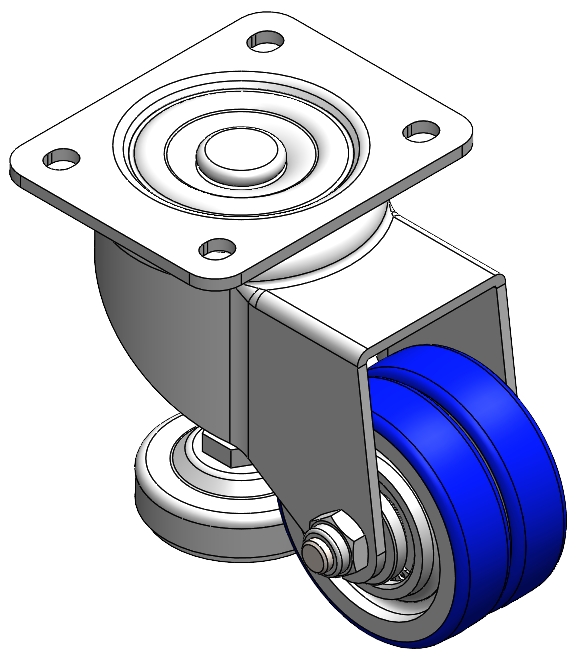

Swivel Caster with Riveted, Stamping Fork 44.5 x 30mm (1-3/4" x 1-1/8") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Blue color. Bearing: Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802013
75 mm 260 Kgs 120 mm

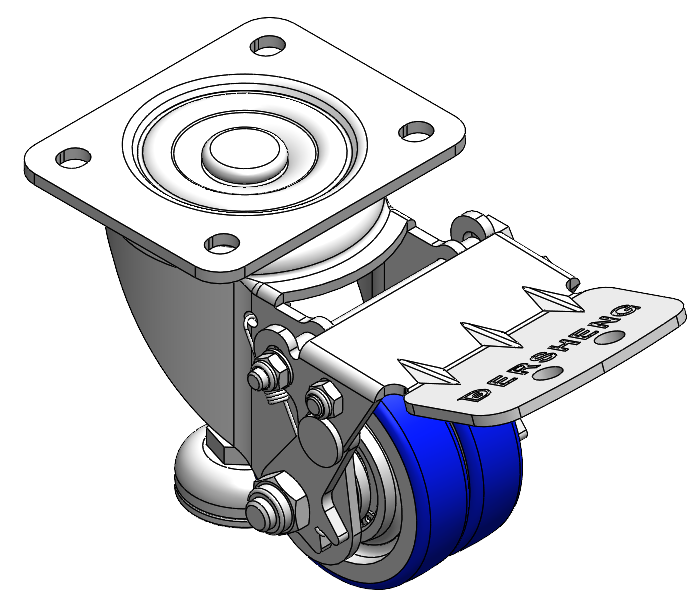

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and European standard holes, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Blue color, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (milling blue) Wheel Diameter × Wheel Width 75×20 (41.5) mm
YJ-11680300802023
75 mm 220 Kgs 120 mm

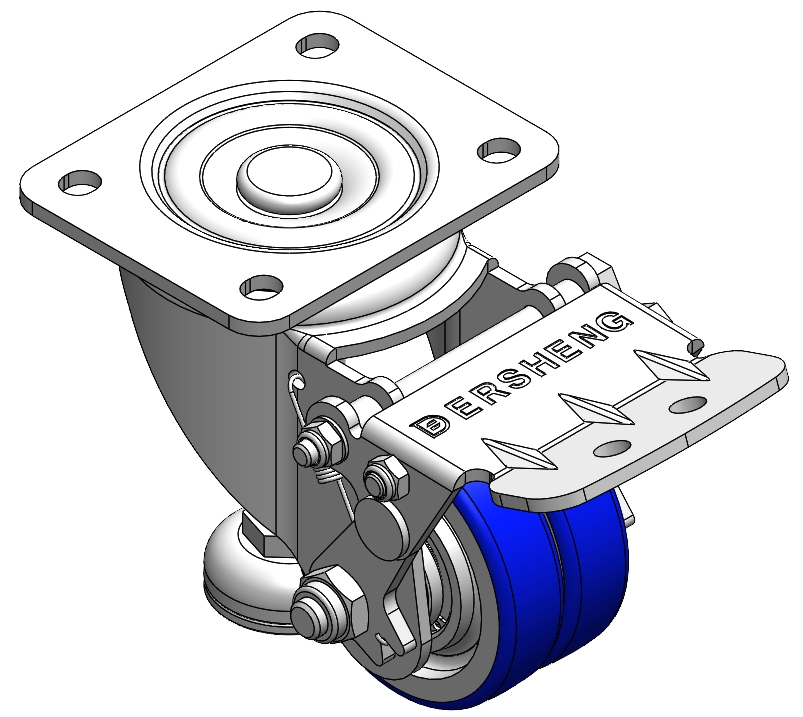

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and European standard holes, Short Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Blue color, Bearing with Ball Bearing.
