MRC (black) Wheel Diameter × Wheel Width 75 x 45 mm

Picture may differ from original product

1168 Levelling Caster Series

MRC (black) Wheel Diameter × Wheel Width 75 x 45 mm

YJ-11680300051023

Wheel Diameter75mm　

Load Capacity (Dynamic)300kgs　

Overall Height120mm　

Wheel BearingWheels With Ball Bearings

Rigid castor, Stamping Fabricated Caster Fork - D-shaped hole
Extended control lever surface, Mounting Type - Top Plate
Reinforced Polypropylene and Wheel Tread
Black, Bearing - Ball Bearing.
Wheel Tread: Thermoplastic (PA6)
Wheel Center: Thermoplastic (PA6)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

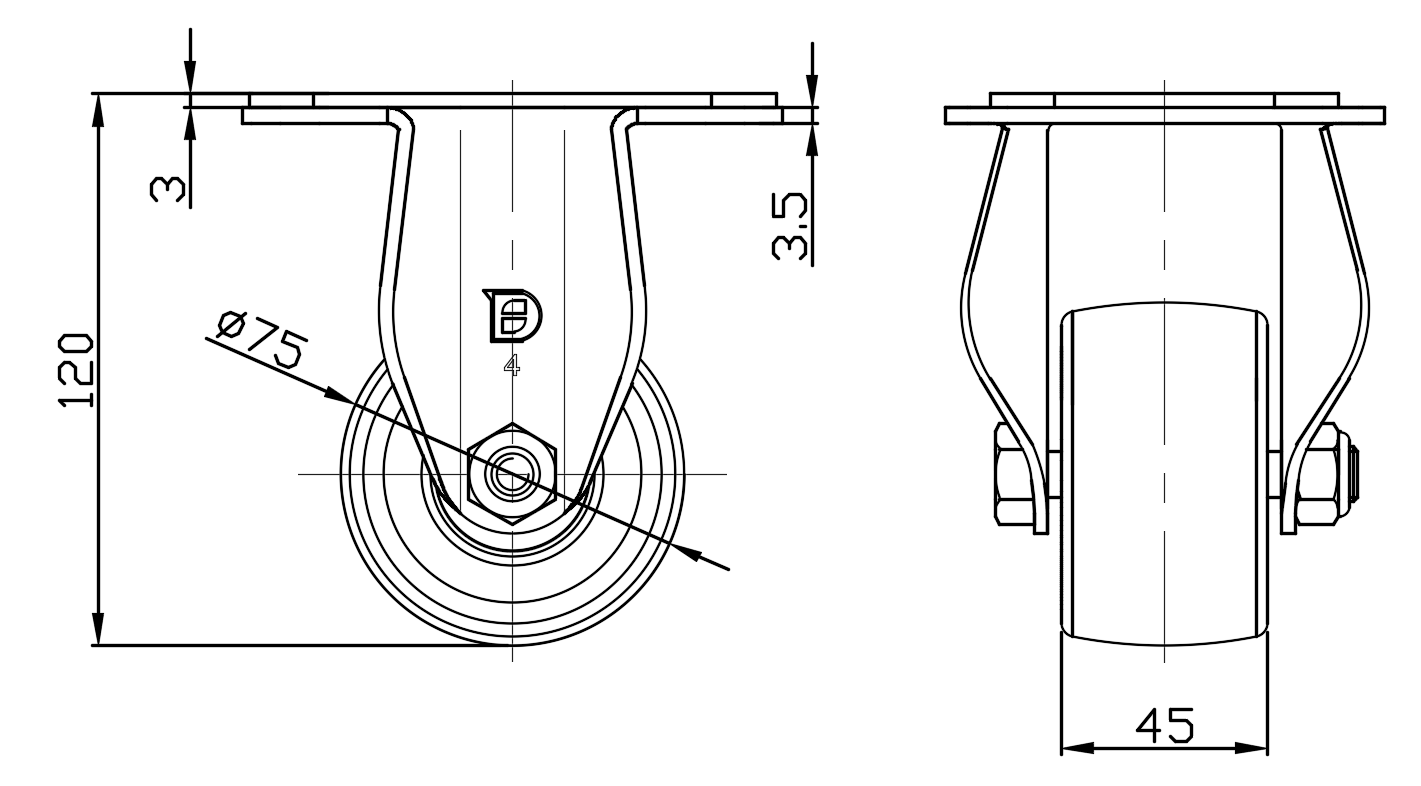

Wheel Diameter: 75mm
Wheel Width: 45mm
Wheel Bearing: Wheels With Ball Bearings

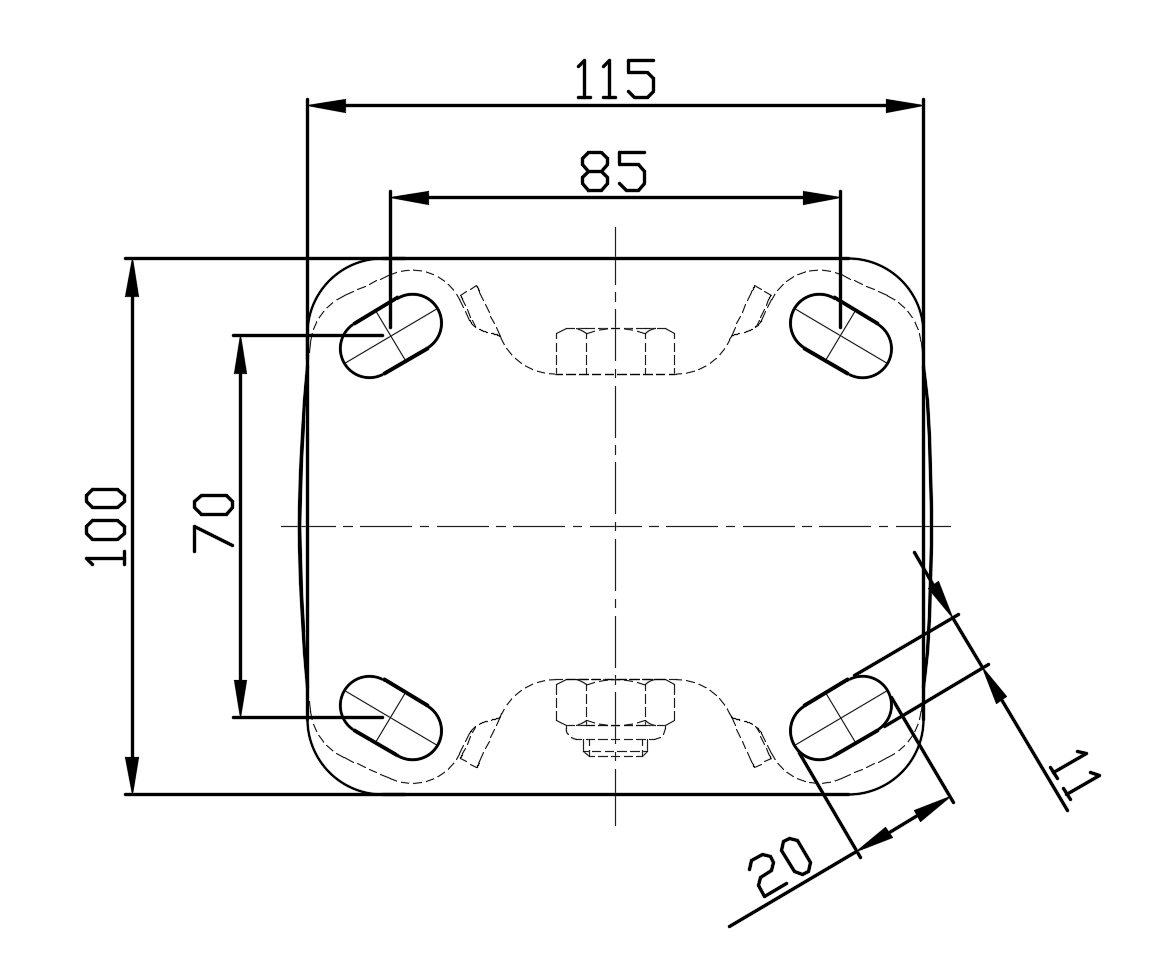

Plate Size: 115 x 100mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Overall Height: 120mm
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 300kgs
Load Capacity (Static): 450kgs
Temperature: -20°C to +80°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.05kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
