    Product Data Sheet
1168 Levelling Caster Series
　　QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm
　　EAN
　　　　　 　　　
　　YJ-11680300532033 　　　
Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Brown, Bearing with Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

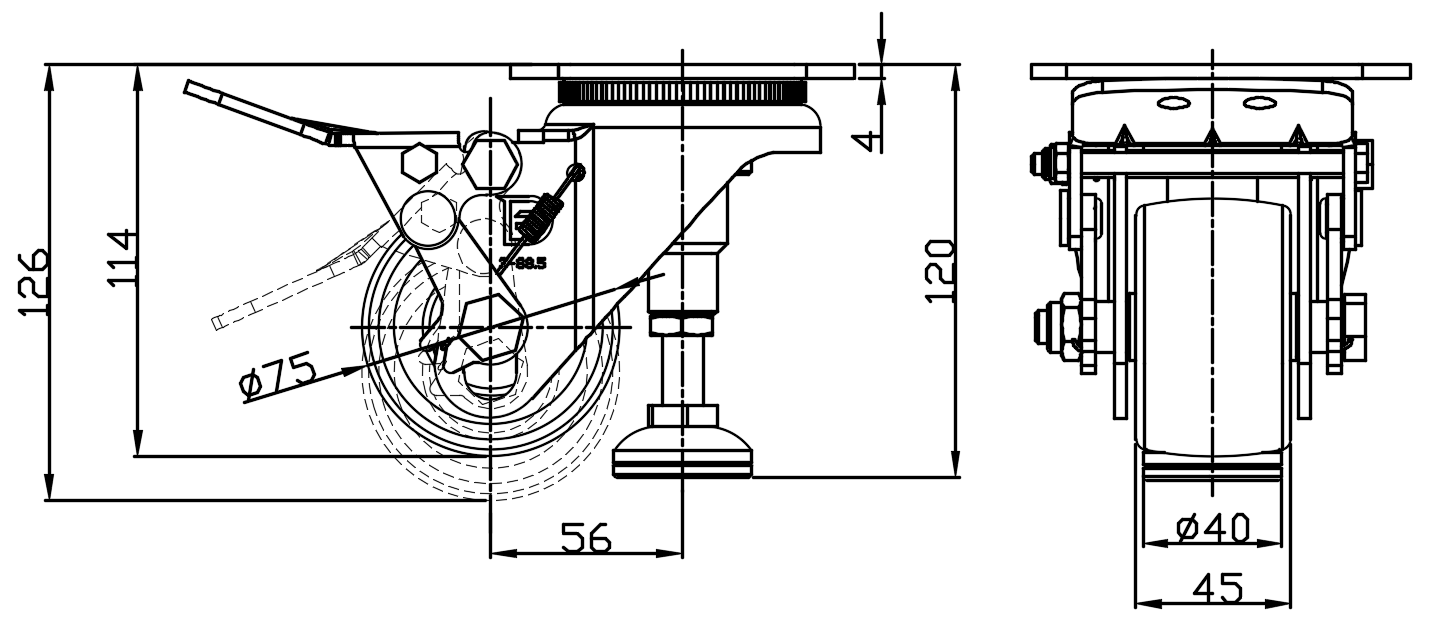

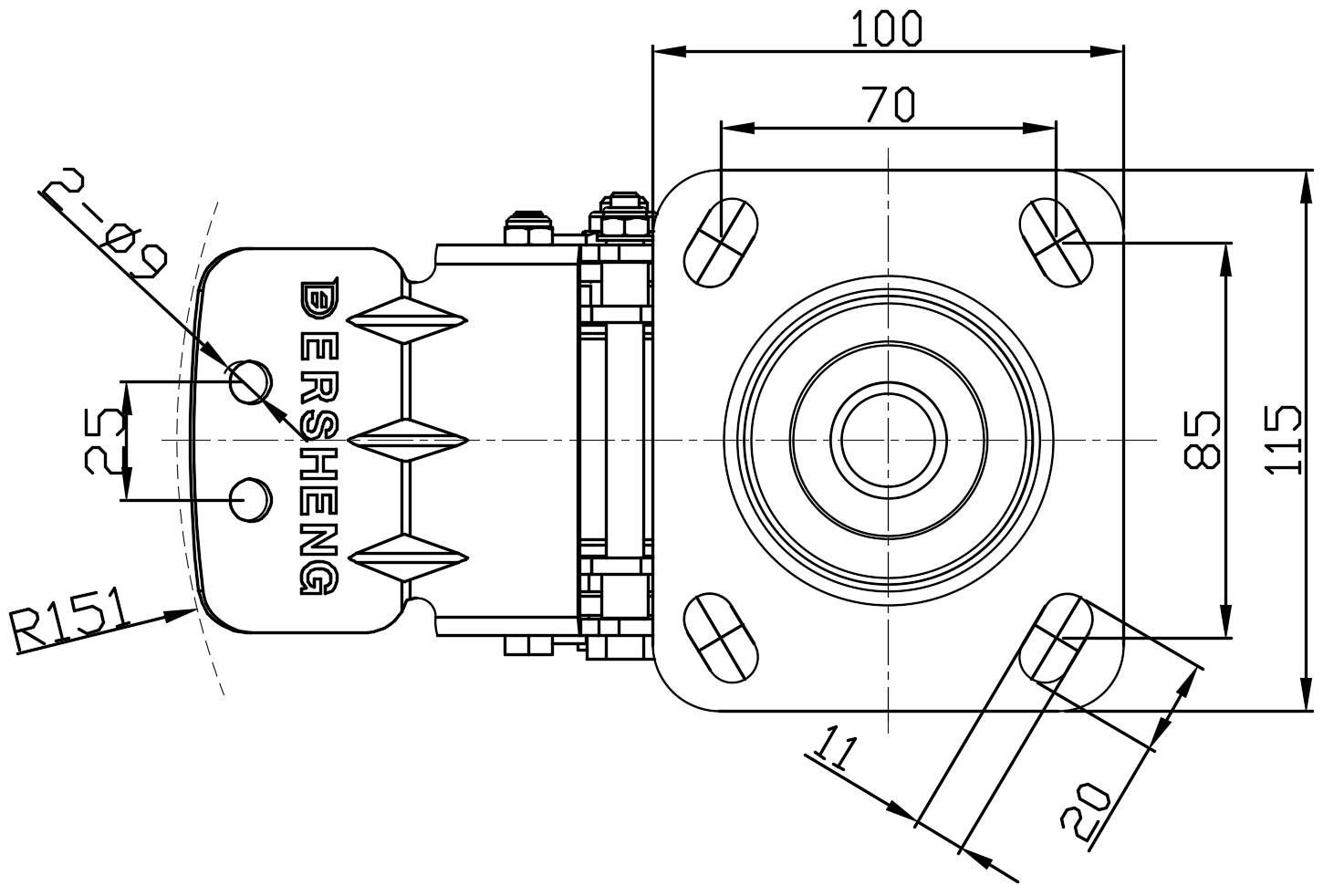

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 56mm　
　　Swivel Interference 302mm　
　　Overall Height 120mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 260kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.45kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

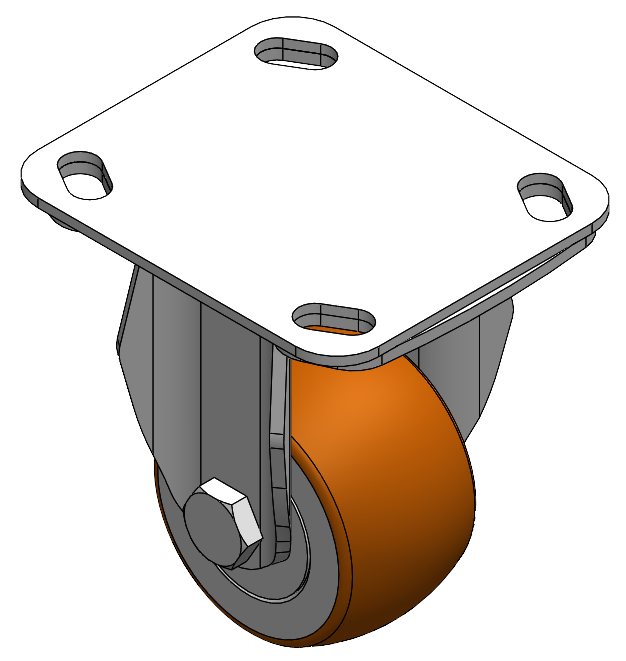

1168 Levelling Caster Series
QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm
YJ-11680300531023
75 mm 300 Kgs 120 mm
Rigid Caster with integral Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Ball Bearing.

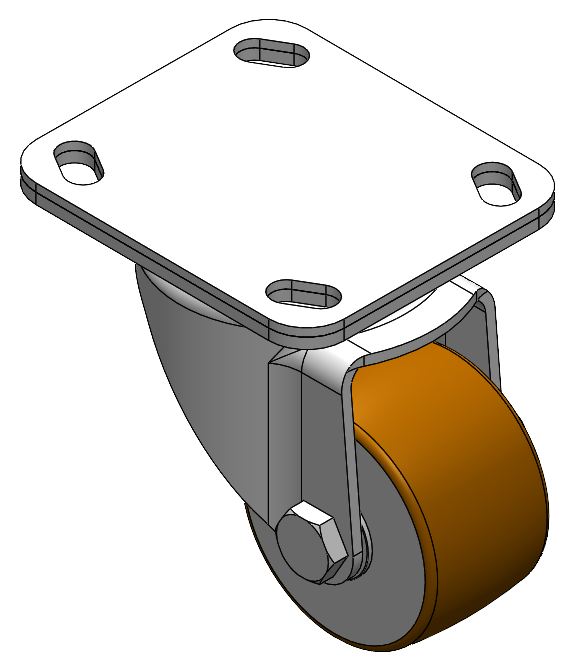

1168 Levelling Caster Series
QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm
YJ-11680300532063
75 mm 300 Kgs 120 mm
Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.

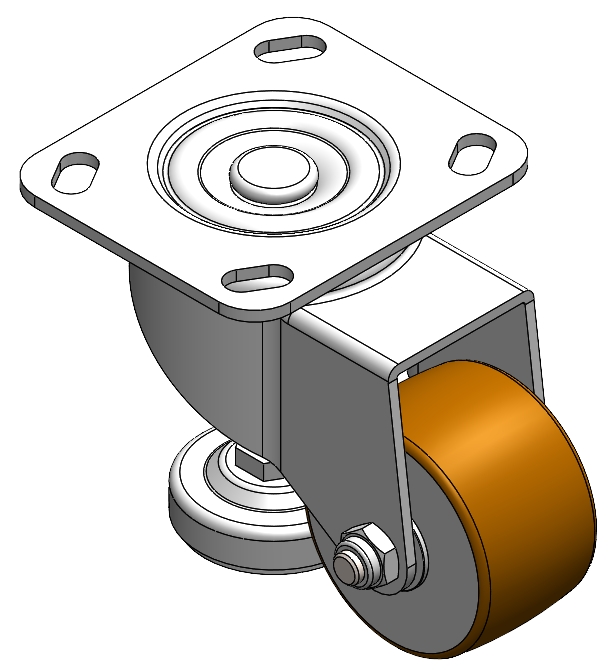

1168 Levelling Caster Series
QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm
YJ-11680300532083
75 mm 220 Kgs 120 mm
Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Fork-mounted Mounting Type with Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.

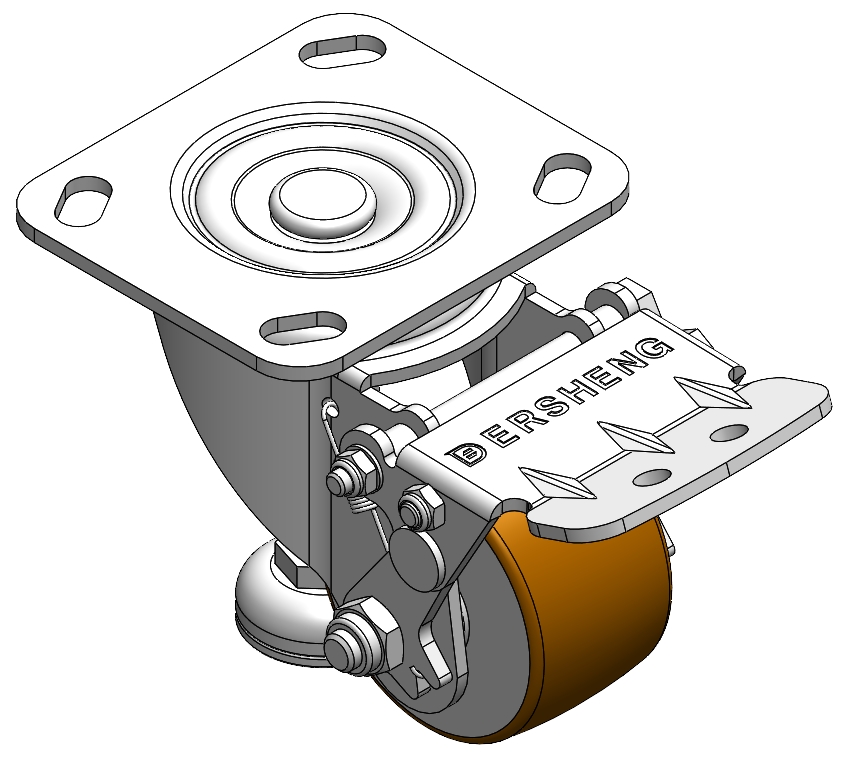

1168 Levelling Caster Series
