AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm

Picture may differ from original product

1168 Levelling Caster Series

AQPU (brown round) Wheel Diameter × Wheel Width 100 x 40mm

YJ-11680400602053

Wheel Diameter100mm　

Load Capacity (Dynamic)320kgs　

Overall Height142.5mm　

Wheel BearingWheels With Ball Bearings

Swivel Caster with Riveted Fork and Stamping bracket – European standard holes
Zine-Plated, Mounting Type - Top Plate
Aluminum Wheel Center, High Quality Polyurethane tread
Brown, Bearing – Ball Bearing.
Wheel Tread: high quality polyurethane
Wheel Center: aluminum core

Product descriptions are for reference only. The actual product shall prevail.

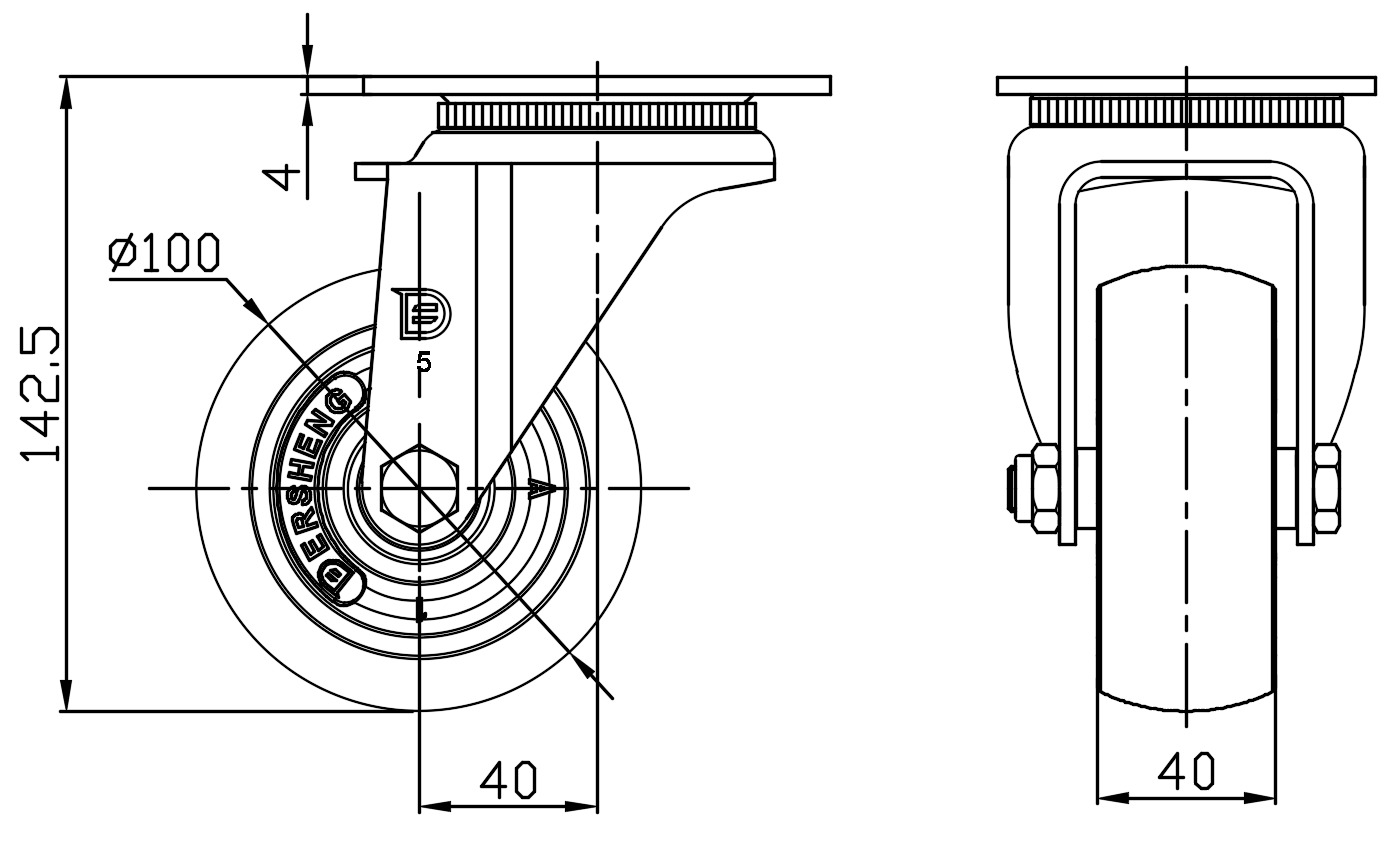

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

Wheel Diameter: 100mm
Wheel Width: 40mm
Wheel Bearing: Wheels With Ball Bearings

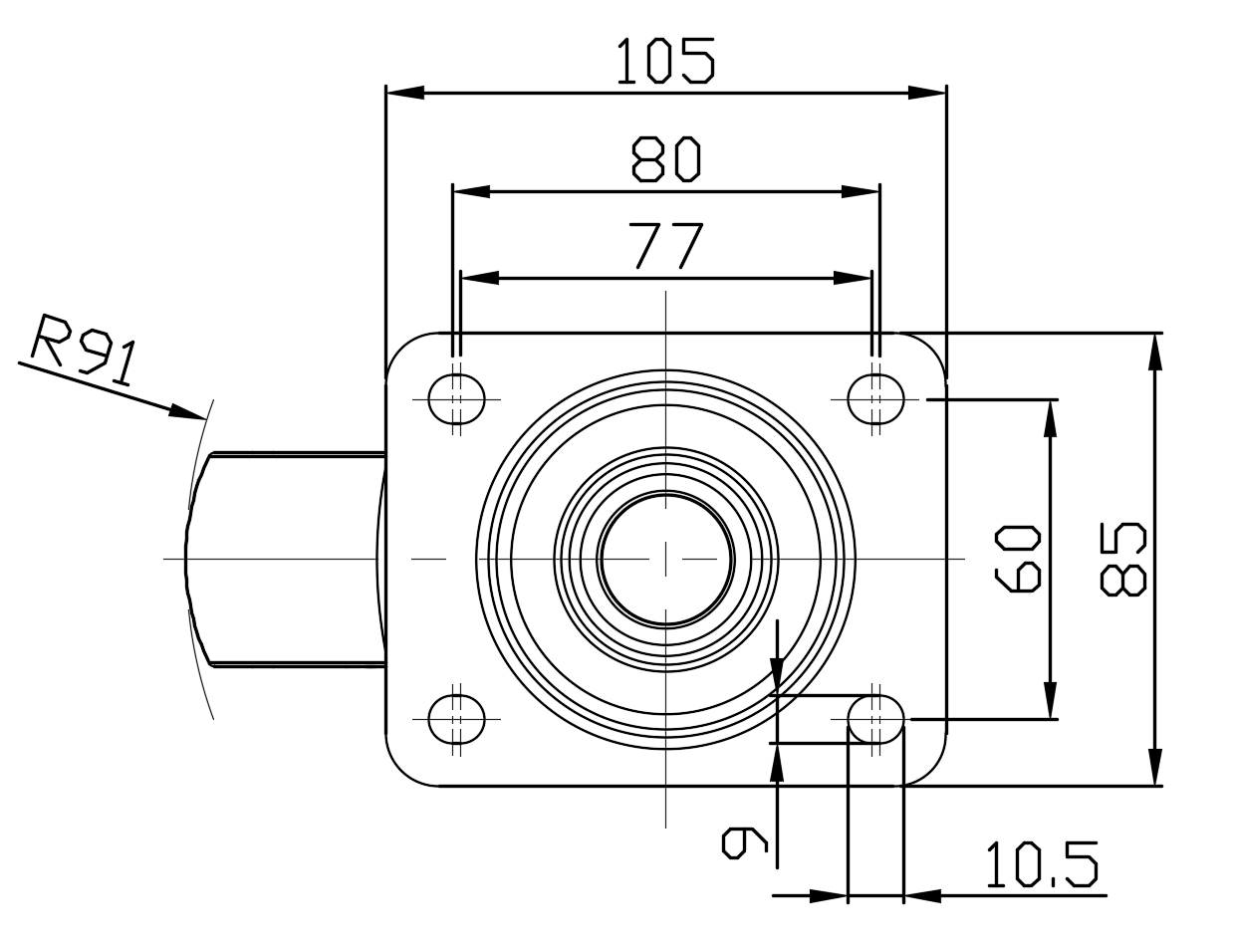

Plate Size: 105 x 85mm
Bolt Hole Spacing: 80 x 60mm
Plate Hole: 10.5 x 9mm
Offset: 40mm
Swivel Interference: 182mm
Overall Height: 142.5mm
Swivel Radius: 91mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 320kgs
Load Capacity (Static): 480kgs
Temperature: -20°C to +70°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.33kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
