    Product Data Sheet
1168 Levelling Caster Series
　　ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
　　EAN
　　　　　 　　　
　　YJ-11680400802083 　　　

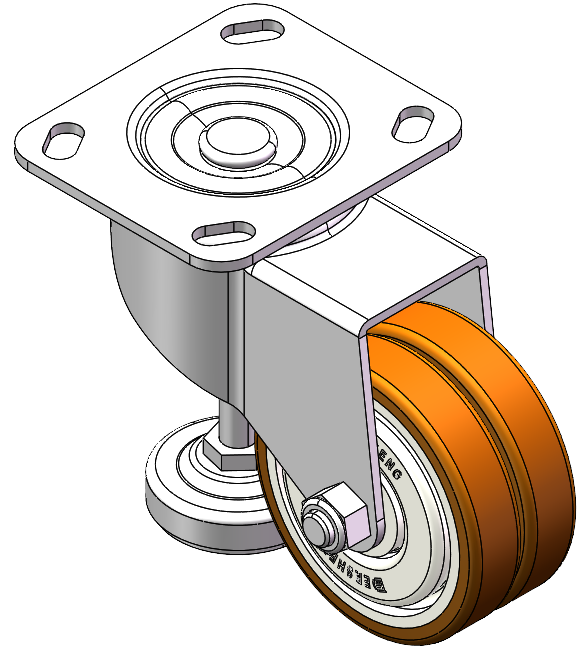

Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Fork-mounted Mounting Type with Height Adjustable Stand. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.
　　Wheel Tread: high quality polyurethane
　　Wheel Center: cast iron core

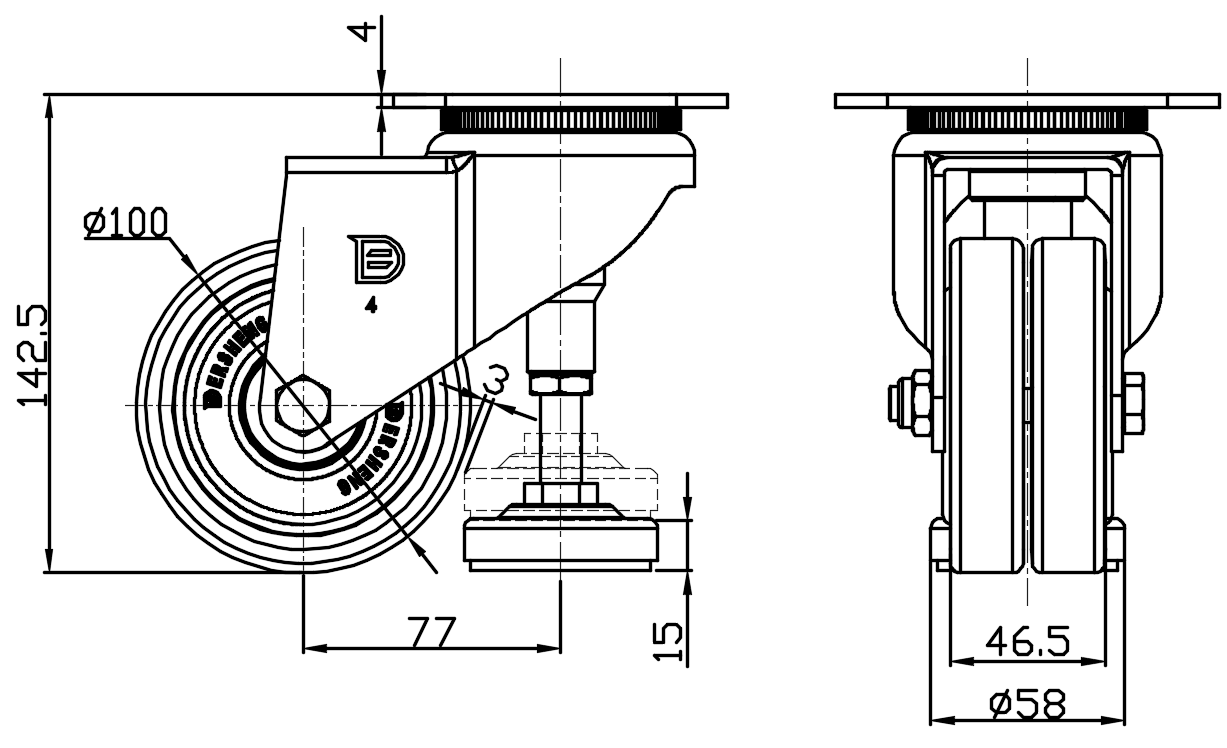

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 46.5mm　
　　Wheel Bearing Wheels With Ball Bearings

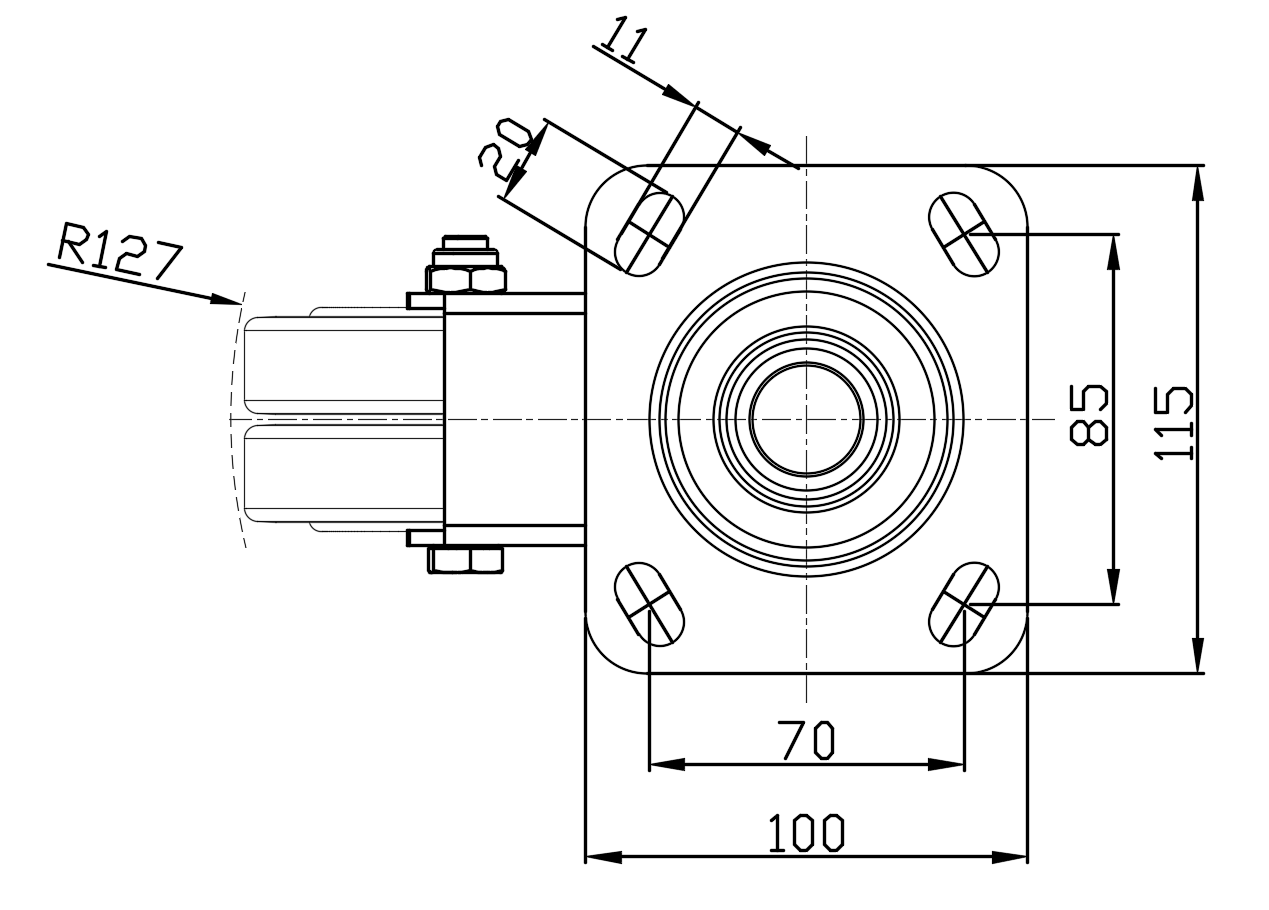

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 77mm　
　　Swivel Interference 254mm　
　　Overall Height 142.5mm　
　　Swivel Radius 127mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.06kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
YJ-11680400801023
100 mm 320 Kgs 142.5 mm

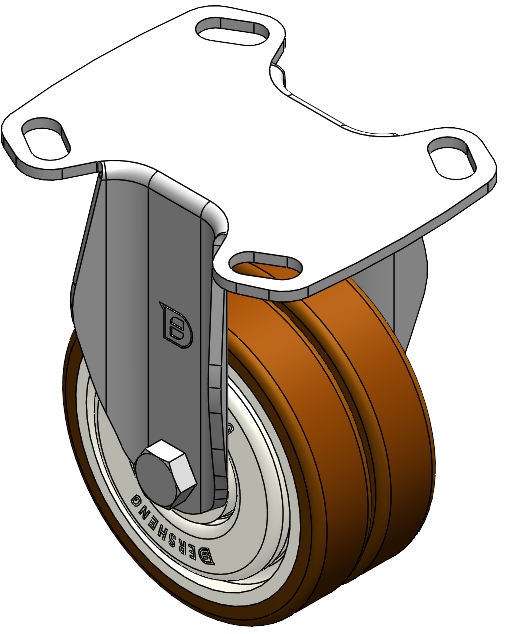

Rigid castor, Stamping Fabricated Caster Fork - D-type hole Extended control lever surface, Mounting Type - Top Plate Aluminum Wheel Center, High Quality Polyurethane Wheel Tread Brown, Bearing - Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
YJ-11680400802063
100 mm 320 Kgs 142.5 mm

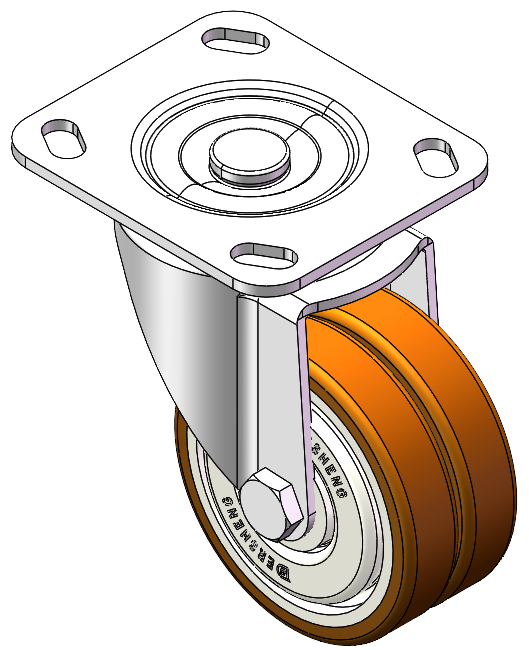

Swivel Caster with Riveted Fork and Stamping Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Mounting Type - Top Plate. Cast Iron Wheel Center with High Quality Polyurethane tread. Brown color, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
YJ-11680400802033
100 mm 320 Kgs 142.5 mm

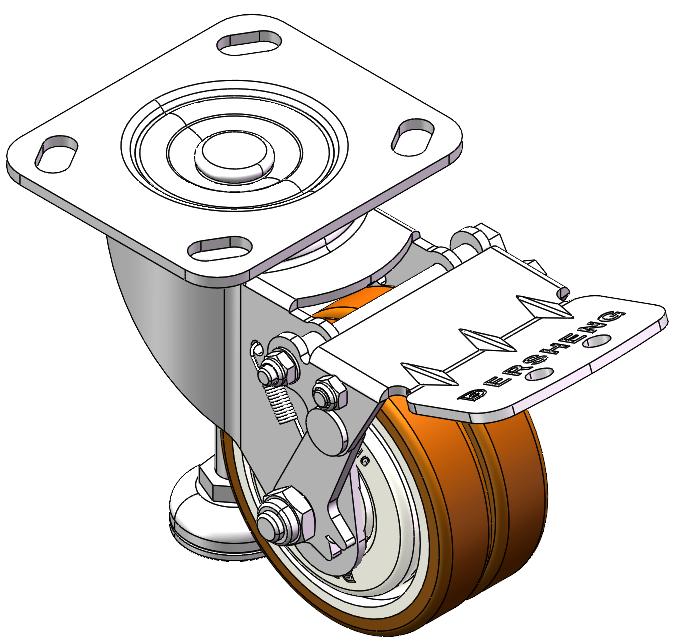

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Brown, Bearing with Ball Bearing.
1168 Levelling Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm
YJ-11680400802043
100 mm 320 Kgs 142.5 mm

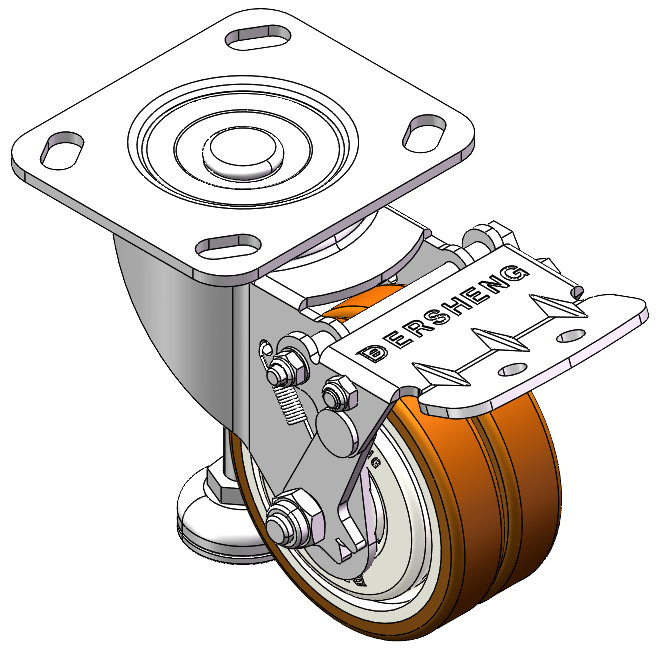

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing, Short Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Cast Iron Wheel Center with High Quality Polyurethane tread Brown, Bearing with Ball Bearing.
