ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

Picture may differ from original product

1168 Levelling Caster Series

ZQPU (brown round) Wheel Diameter x Wheel Width 100 x 22 (46.5) mm

YJ-11680400801023

Wheel Diameter100mm　

Load Capacity (Dynamic)320kgs　

Overall Height142.5mm　

Wheel BearingWheels With Ball Bearings

Rigid castor, Stamping Fabricated Caster Fork - D-type hole
Extended control lever surface, Mounting Type - Top Plate
Aluminum Wheel Center, High Quality Polyurethane Wheel Tread
Brown, Bearing - Ball Bearing.
Wheel Tread: High quality polyurethane
Wheel Center: Aluminum core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

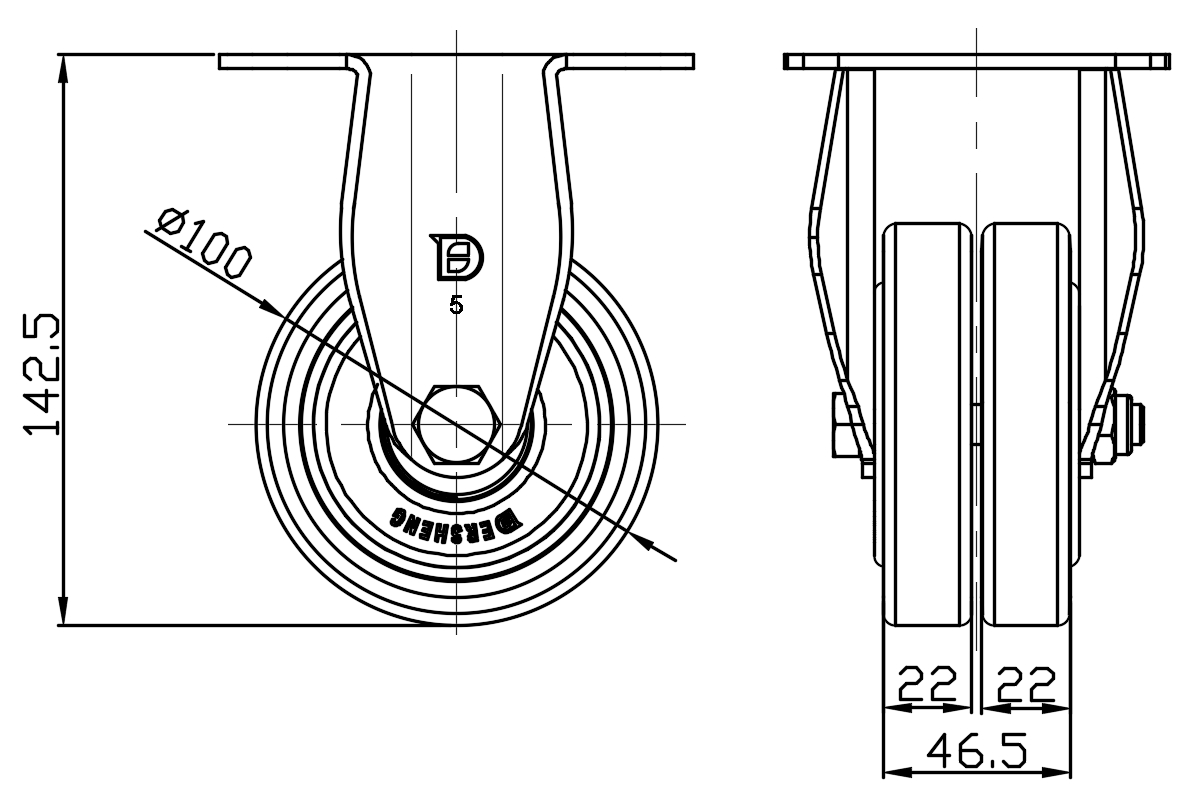

Wheel Diameter: 100mm
Wheel Width: 46.5mm
Wheel Bearing: Wheels With Ball Bearings

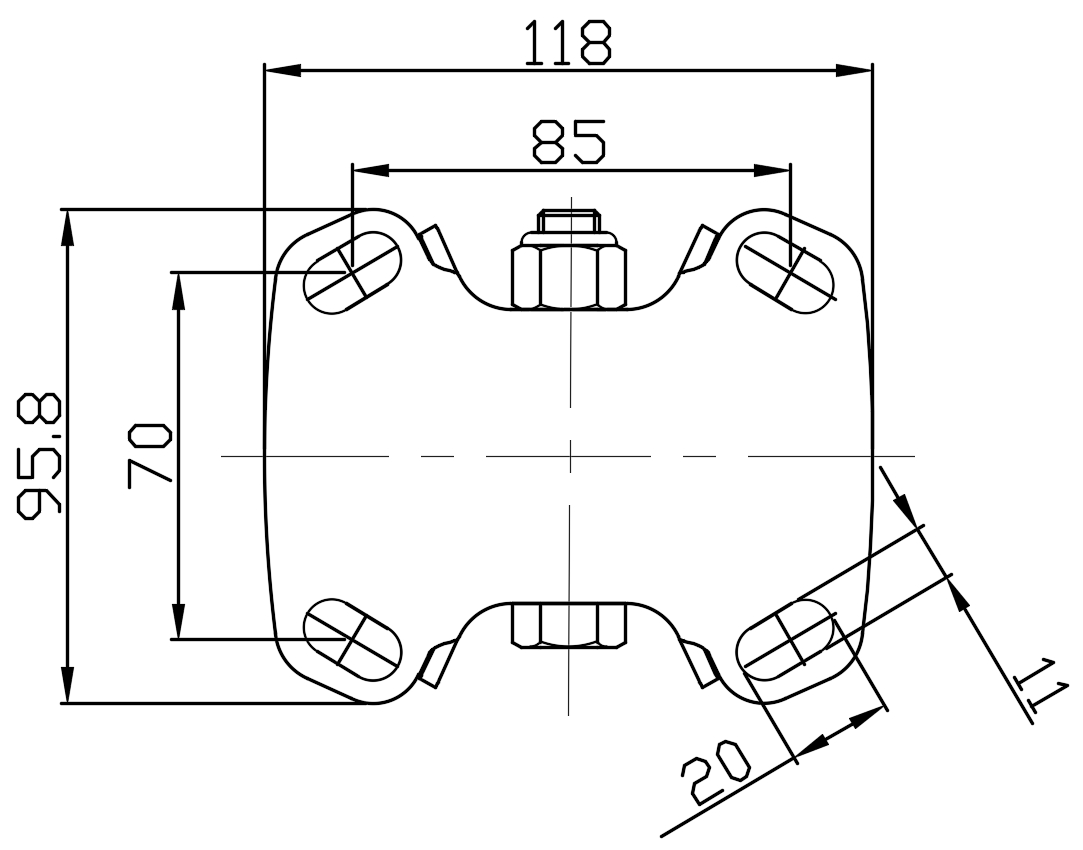

Plate Size: 118 x 95.8mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Overall Height: 142.5mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 320kgs
Load Capacity (Static): 480kgs
Temperature: -20°C to +70°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.19kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
