    Product Data Sheet
1168 Levelling Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11680400072013 　　　

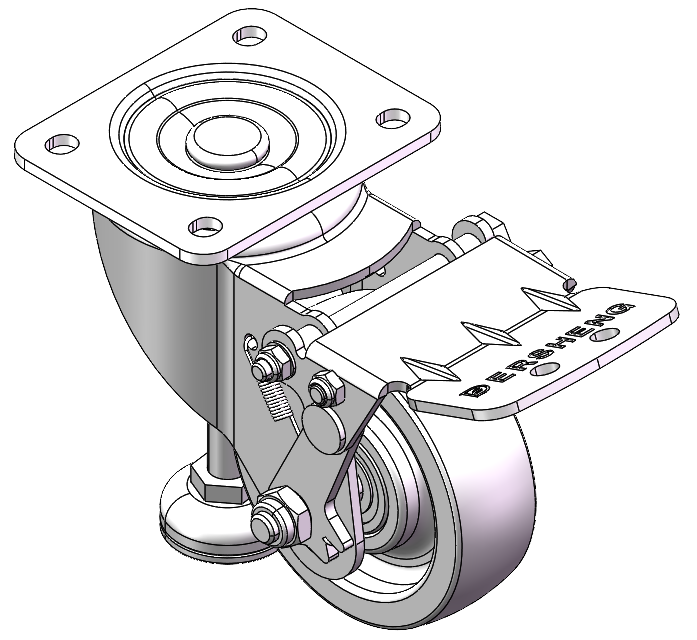

Height Adjustable Leveling Caster, Top Plate with Riveted Fork and European standard holes, Long Pedal Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand Reinforced Polypropylene and tread Natural color, Bearing with Ball Bearing.
　　Wheel Tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

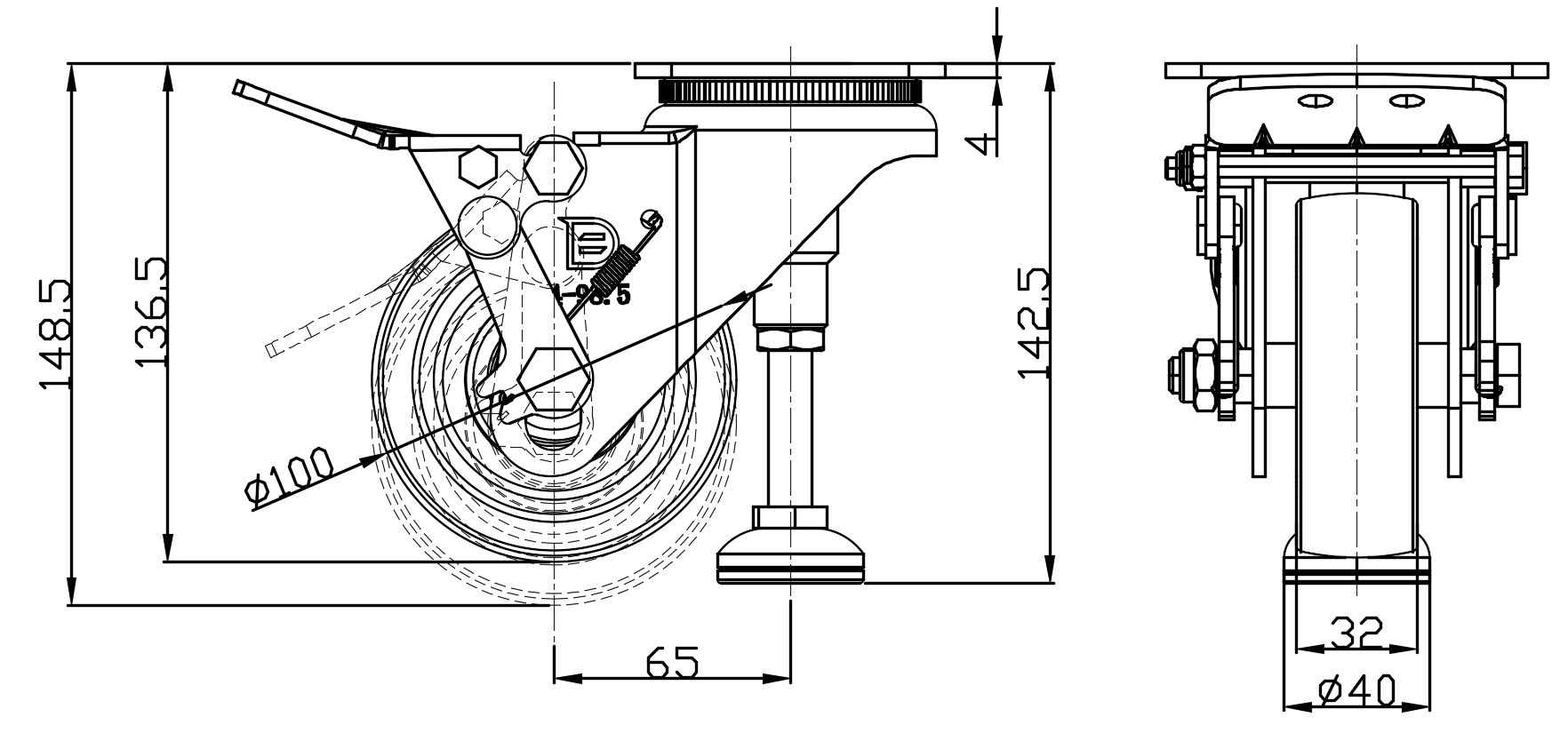

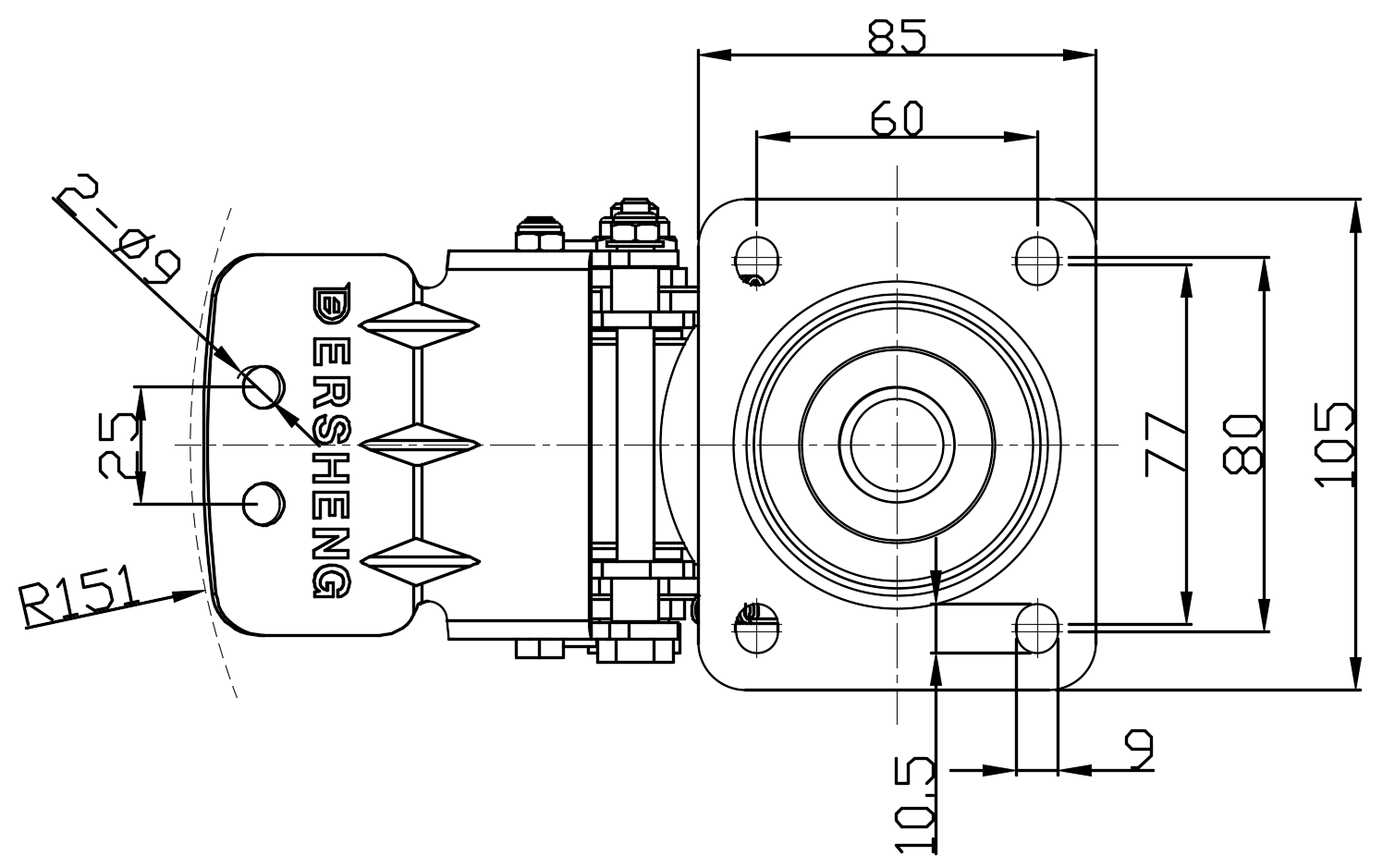

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 105 x 85mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 10.5 x 9mm　
　　Offset 65mm　
　　Swivel Interference 302mm　
　　Overall Height 142.5mm　
　　Swivel Radius 151mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 320kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 1000kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.98kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11680400071013
100 mm 320 Kgs 142.5 mm
Rigid castor, Stamping Fabricated Caster Fork - European standard holes Extended control lever surface, Mounting Type - Top Plate Reinforced Polypropylene and Wheel Tread Natural color, Bearing - Ball Bearing.

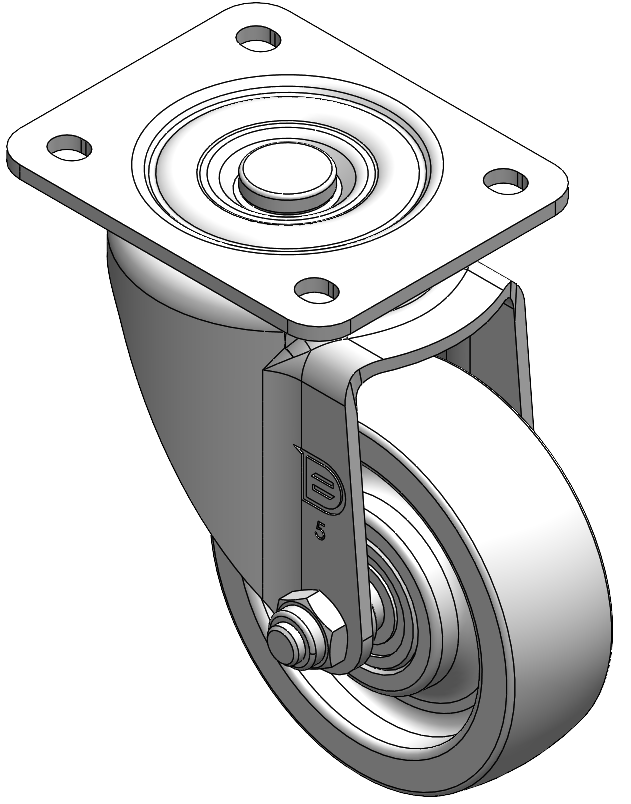

1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11680400072093
100 mm 320 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping bracket—European standard holes Zine-Plated, Mounting Type - Top Plate Reinforced Polypropylene and tread Natural color, Bearing—Ball Bearing.

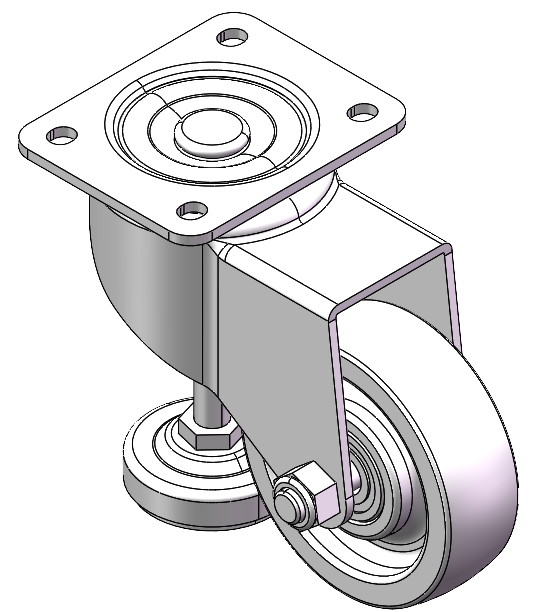

1168 Levelling Caster Series
MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11680400072163
100 mm 250 Kgs 142.5 mm
Swivel Caster with Riveted Fork and Stamping bracket—European standard holes. Zine-Plated, Mounting Type - Top Plate, Height Adjustable Stand. Reinforced Polypropylene and tread. Natural color. Bearing—Ball Bearing.

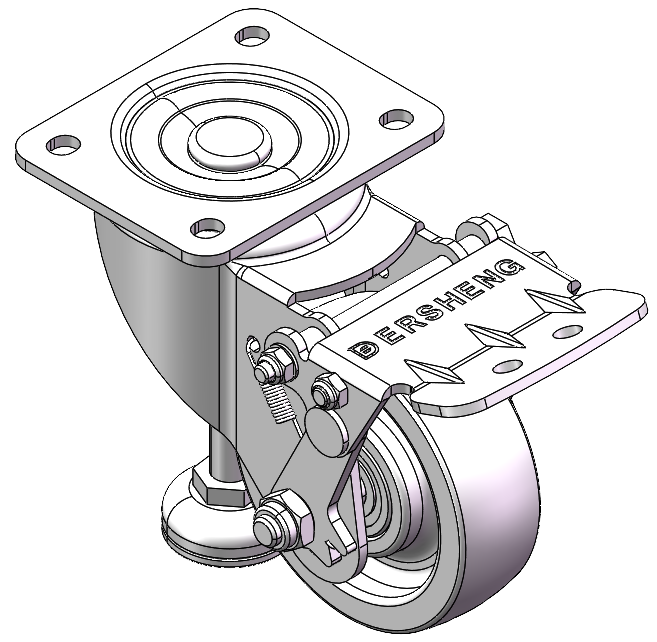

1168 Levelling Caster Series
