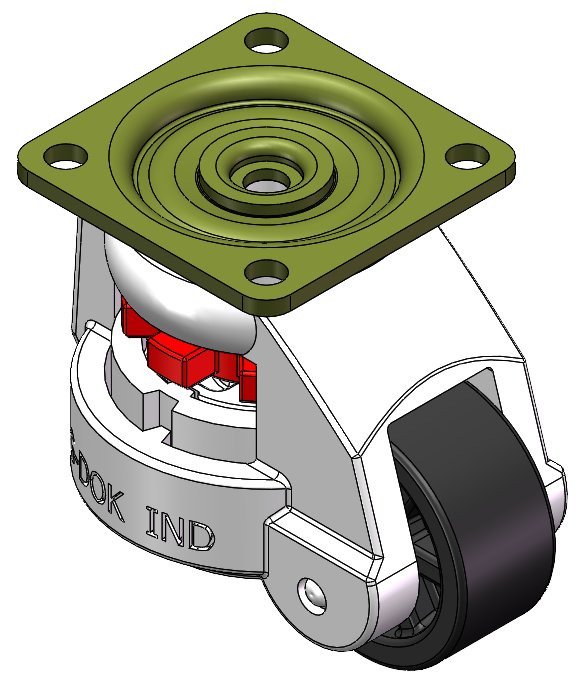

Picture may differ from original product
1169- Height Adjustment Caster
PA wheel (Black) Wheel Diameter × Wheel Width 50 x 25mm
YJ-11690200072011
Wheel Diameter50mm
Load Capacity (Dynamic)250kgs
Overall Height71mm
Wheel BearingWheels With Ball Bearings
- Adjustable Caster with Riveted die-cast Top Plate and integrated Fork - 58 x 58" Bolt Hole Spacing
- Gray paint finish, Top Plate (4T) Mounting Type mechanism, adjustable Fork
- Reinforced Polypropylene Wheel Center and Wheel Tread
- Black, Bearing - Ball Bearings.
- Wheel tread:Thermoplastic
- Wheel Center:Thermoplastic
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

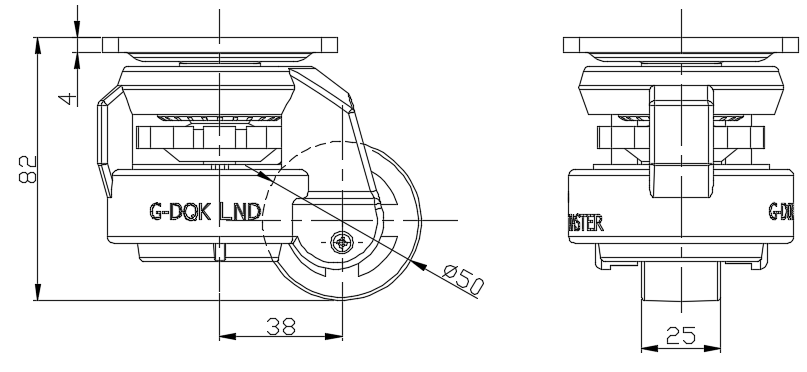

Product Data Sheet
- Wheel Diameter
- 50mm
- Wheel Width
- 25mm
- Wheel Bearing
- Wheels With Ball Bearings

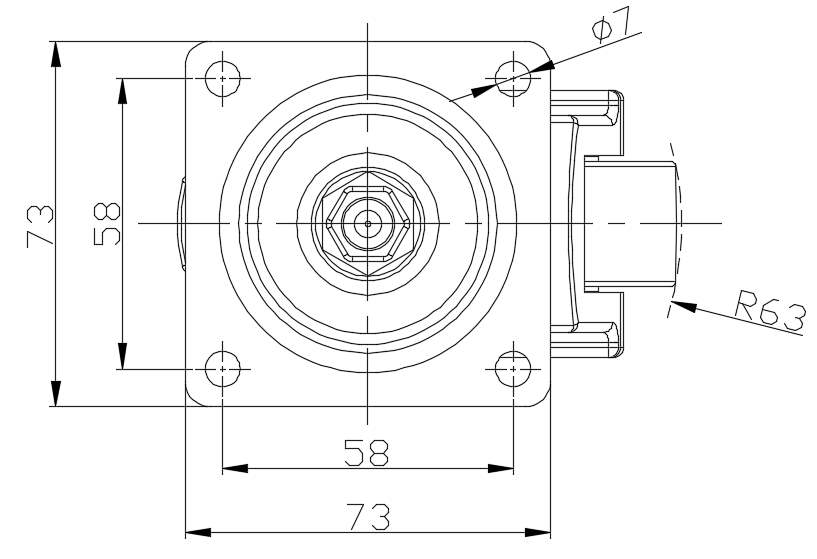

- Plate Size
- 73 x 73mm
- Bolt Hole Spacing
- 58 x 58mm
- Plate Hole
- 7mm
- Offset
- 38mm
- Swivel Interference
- 126mm
- Overall Height
- 71mm
- Swivel Radius
- 63mm
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 250kgs
- Load Capacity (Static)
- 375kgs
- Temperature
- -20°C to +80°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.72kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
