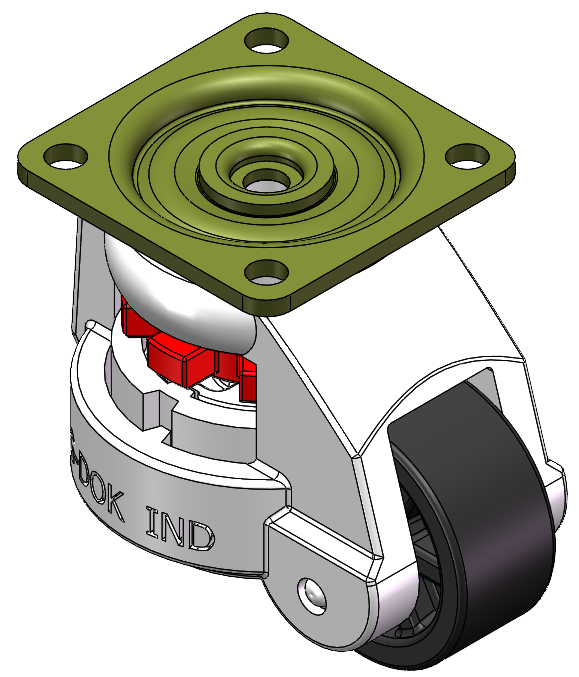

Picture may differ from original product
1169- Height Adjustment Caster
PA wheel (Black) Wheel Diameter × Wheel Width 72 x 30mm
YJ-11690250072021
Wheel Diameter72mm 2-7/8＂
Load Capacity (Dynamic)750kgs 1653lbs
Overall Height120mm 4-13/16＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Riveted die-cast Fork and integrated Fork—42 x 42" Bolt Hole Spacing.
- Black lacquer finish, Top Plate (5T) Mounting Type mechanism with adjustable support Fork.
- Reinforced Polypropylene Wheel Center and Wheel Tread.
- Black. Bearings—Ball Bearings.
- Wheel tread:Thermoplastic
- Wheel Center:Thermoplastic
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

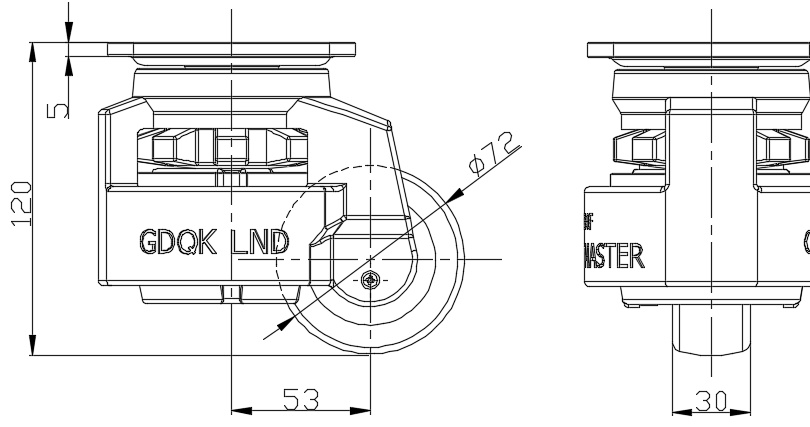

Product Data Sheet
- Wheel Diameter
- 72mm2-7/8＂
- Wheel Width
- 30mm1-3/16＂
- Wheel Bearing
- Wheels With Ball Bearings

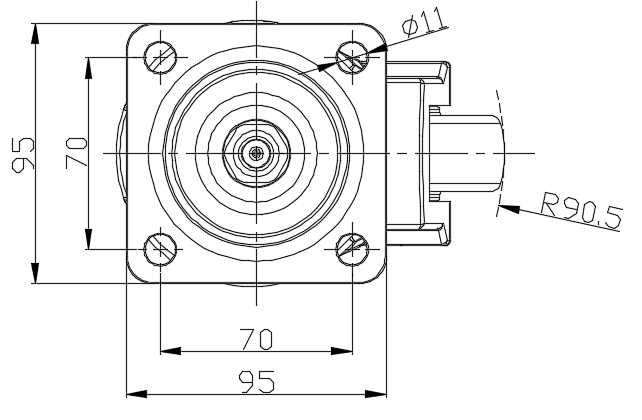

- Plate Size
- 95 x 95mm3-13/16＂ x 3-13/16＂
- Bolt Hole Spacing
- 70 x 70mm2-3/4＂ x 2-3/4＂
- Plate Hole
- 11mm3/8＂
- Offset
- 53mm2-1/8＂
- Swivel Interference
- 181mm7-3/16＂
- Overall Height
- 120mm4-13/16＂
- Swivel Radius
- 90.5mm3-5/8＂
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 750kgs1653lbs
- Load Capacity (Static)
- 1125kgs2480lbs
- Temperature
- -20°C to +80°C-4°F to +176°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 1.5kgs3.3lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
