Picture may differ from original product
Resolute Rubber Wheel Series

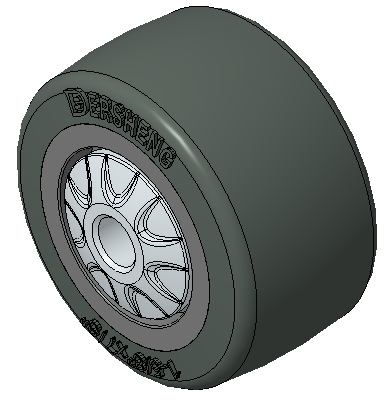

Resolute (Pearlescent Dark Gray Flat) Wheel Diameter × Wheel Width 40.5 × 22mm
KS-12024561100171
Wheel Diameter(D)40.5mm
Load Capacity (Dynamic)56kgs
Wheel BearingBall Bearing
- Easy to Floor Surface Preservation, Non-Markings, Easy To Maneuver, and can withstand heavy loads.
- Low rolling and Swivel Resistance, resistant to corrosion from many corrosive substances.
- Color: Pearlescent dark gray, includes bearing and Dust Cap.
- Wheel Center: High-quality impact-resistant polypropylene
- Outer packaging: Thermoplastic rubber elastomer (TPR)
- Bearing: Ball bearing
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

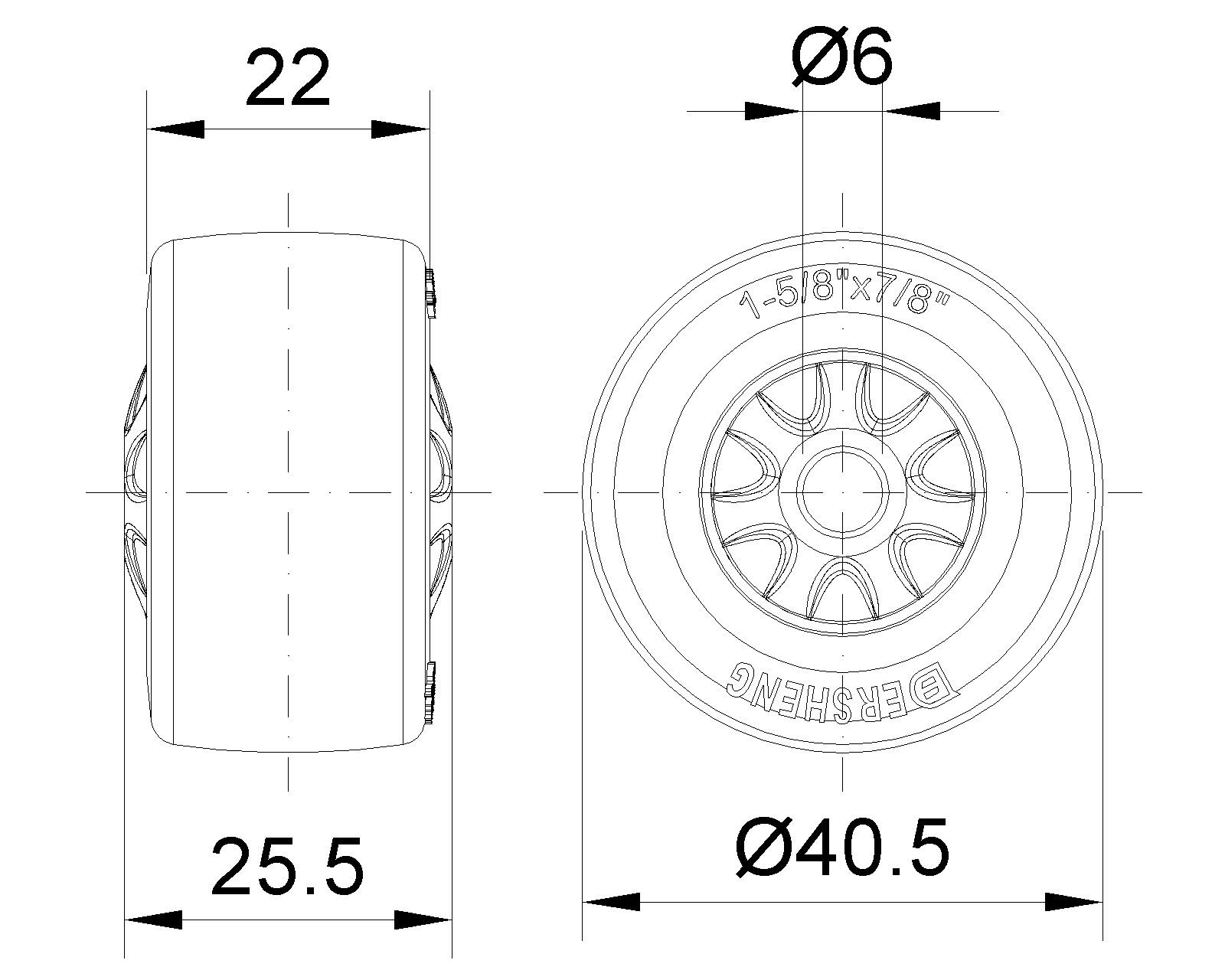

Product Data Sheet
- Wheel Diameter(D)
- 40.5mm
- Wheel Width(T2)
- 22.5mm
- Wheel Bearing
- Ball Bearing
- Axle Bore(d)
- 6mm
- Axle Bore(S)
- —
- Bearing Bore Depth(t)
- —
- Hub Lenth(T1)
- 25.5mm
- Hardness Of Tread
- 82±5° Shore A
- Load Capacity (Dynamic)
- 56kgs
- Load Capacity (Static)
- 84kgs
- Temperature
- -20°C to +60°C
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.04kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
