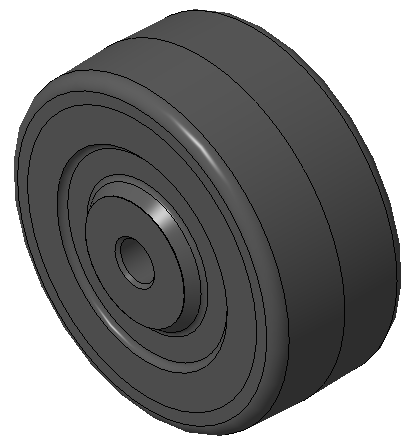

Picture may differ from original product
Resolute Rubber Wheel Series
Resolute (Black-Black Flat) Wheel Diameter × Wheel Width 50 × 22mm
KS-12024502091900
Wheel Diameter(D)50mm
Load Capacity (Dynamic)56kgs
Wheel BearingPlain Bearing
- Easy to Floor Surface Preservation, Non-Markings, Easy To Maneuver, and can withstand heavy loads.
- Low rolling and Swivel Resistance, resistant to corrosion from many corrosive substances.
- Color: Black
- Wheel Center: High-quality impact-resistant polypropylene
- Wheel Tread: Thermoplastic rubber elastomer (TPR)
- Bearing: No center tube
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

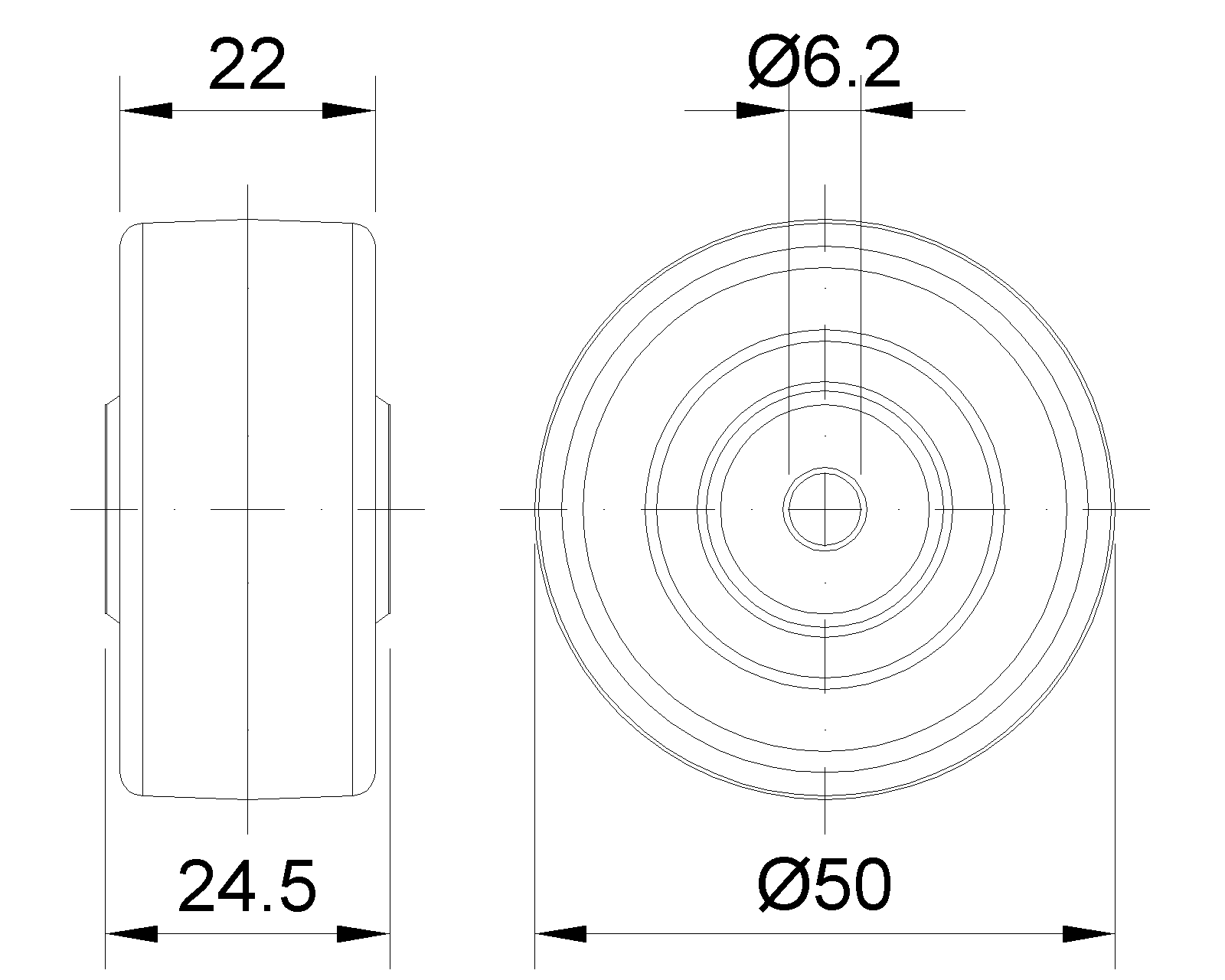

Product Data Sheet
- Wheel Diameter(D)
- 50mm
- Wheel Width(T2)
- 22mm
- Wheel Bearing
- Plain Bearing
- Axle Bore(d)
- —
- Axle Bore(S)
- 6mm
- Bearing Bore Depth(t)
- —
- Hub Lenth(T1)
- 24.5mm
- Hardness Of Tread
- 72±5° Shore A
- Load Capacity (Dynamic)
- 56kgs
- Load Capacity (Static)
- 84kgs
- Temperature
- -20°C to +60°C
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.02kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
