Foam Wheel Series
Wheel Size: Diameter × Width 270×95mm
YJ-12039911000101
Wheel Diameter（D）270mm
Tread Patterndiamond pattern
Load Capacity at 6 km/h—
- Good Heat Resistance, Rigid yet tough, fatigue-resistant, and stress-cracking resistant.
- Unaffected by humidity levels; Corrosion resistant, Oil Resistance, Acid Resistance, Alkali Resistance, and resistant to solven.
- Odorless and recyclable; Heavy Load with low Rolling Resistance.
- Light gray PU, Wheel Tread profile: Crown with diamond-patterned texture.
- Increases grip and effectively improves anti-slip performance.
- Wheel Center: Iron frame
- Wheel Tread: High-quality polyurethane
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

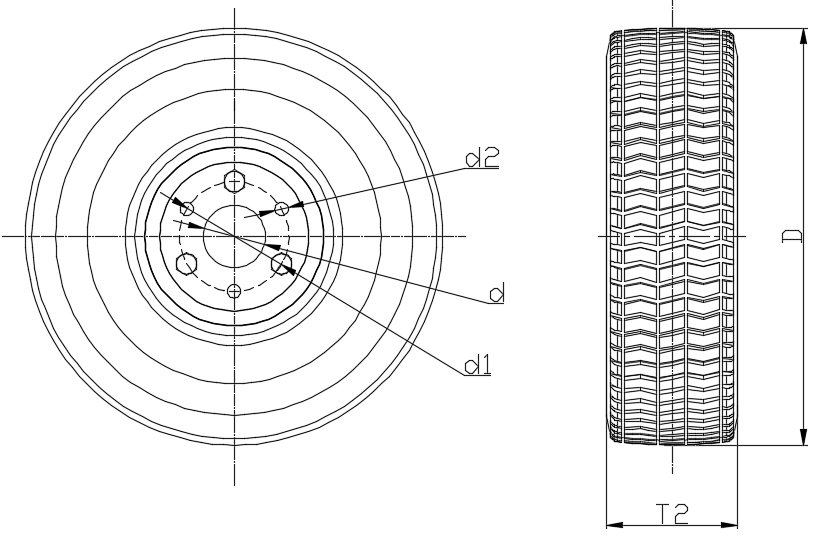

Product Data Sheet
- Wheel Diameter（D）
- 270mm
- Wheel Width（T2）
- 95mm
- Wheel installation — Hub Lenth (T1)
- —
- Wheel center-bore diameter (d)
- 39.8mm
- Wheel Mounting Bolt Hole PCD Diameter
- 8.5 mm
- Wheel Mounting Bolt Hole PCD
- 70mm
- Load Capacity (Static)
- 230kgs
- Load Capacity at 4 km/h
- —
- Load Capacity at 6 km/h
- —
- Load Capacity at 10 km/h
- —
- Load Capacity at 16 km/h
- —
- Hardness Of Tread
- 90±5° Shore A
- Temperature
- -30℃ ~ +70℃
- Tread Pattern
- diamond pattern
- Wheel centre/ rim
- Metal frame / painted (black)
- Non-Marking
- N/A
- Conductive
- N/A
- Anti
- N/A
- Weight
- 2.8kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
