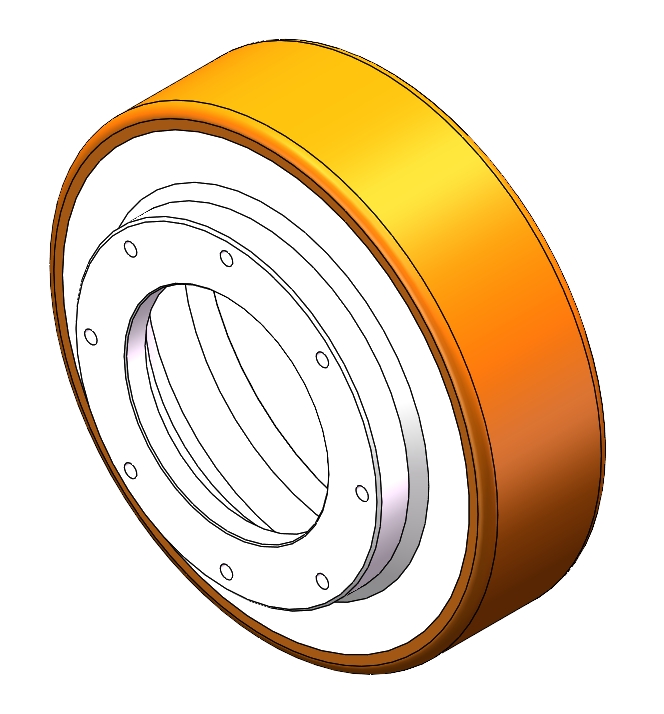

Picture may differ from original product
QPU Series
Wheel Diameter × Wheel Width 180 x 50mm
YJ-12036307200103
Wheel Diameter（D）180mm
Tread Pattern—
Load Capacity at 6 km/h425kgs
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

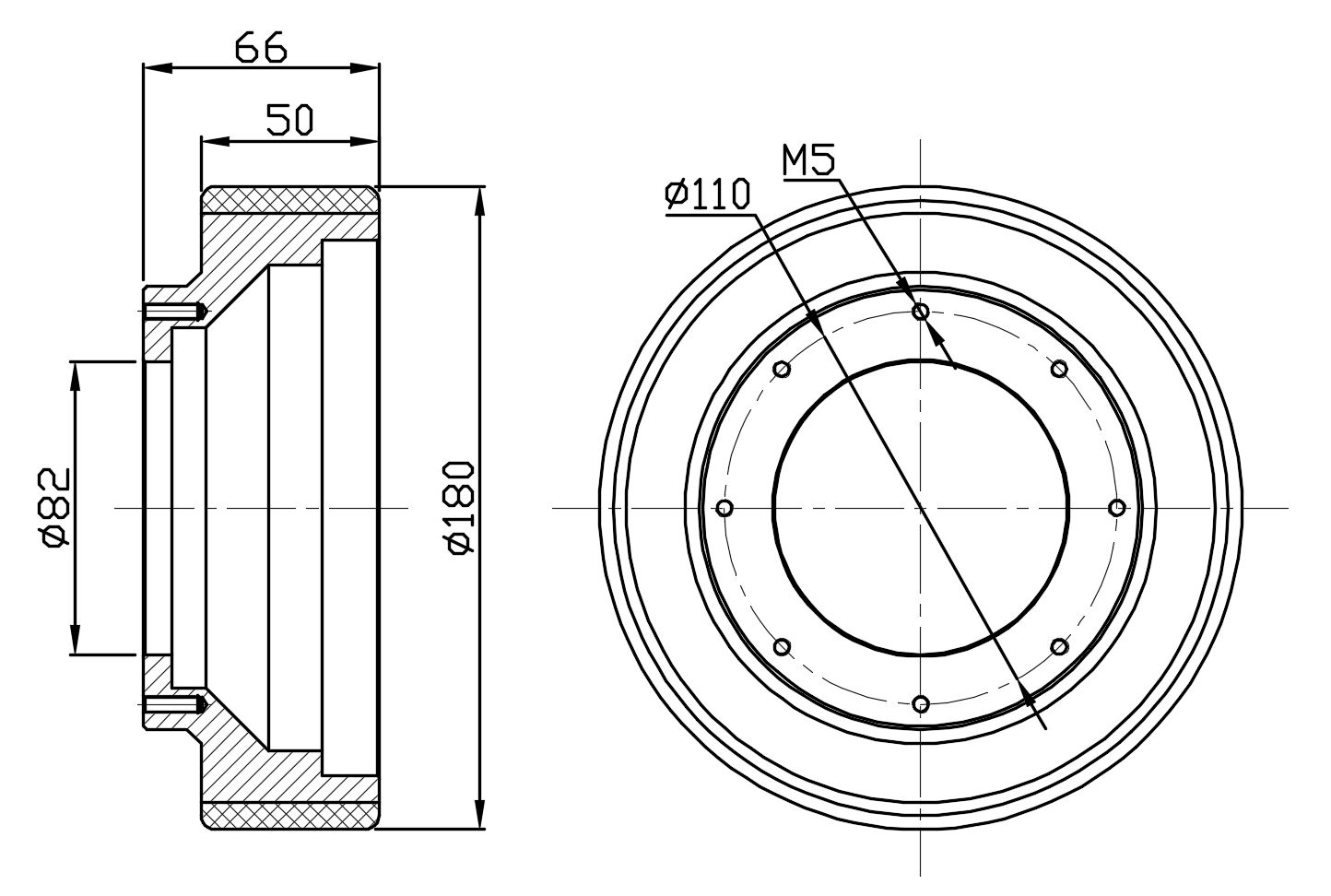

Product Data Sheet
- Wheel Diameter（D）
- 180mm
- Wheel Width（T2）
- 50mm
- Wheel installation — Hub Lenth (T1)
- 66mm
- Wheel center-bore diameter (d)
- 82mm
- Wheel Mounting Bolt Hole PCD Diameter
- —
- Wheel Mounting Bolt Hole PCD
- 110mm
- # Of Wheel mounting bolt boles
- —
- Wheel mounting bolt hole (M)
- 5
- Number of wheel mounting bolt holes
- 8
- Load Capacity (Static)
- 750kgs
- Load Capacity at 4 km/h
- 500kgs
- Load Capacity at 6 km/h
- 425kgs
- Load Capacity at 10 km/h
- 350kgs
- Load Capacity at 16 km/h
- 200kgs
- Hardness Of Tread
- 92±5° Shore A
- Temperature
- -20°C to +70°C
- Tread Pattern
- —
- Wheel centre/ rim
- Non-Marking
- Y
- Conductive
- N/A
- Anti
- N/A
- Weight
- 5.10kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
