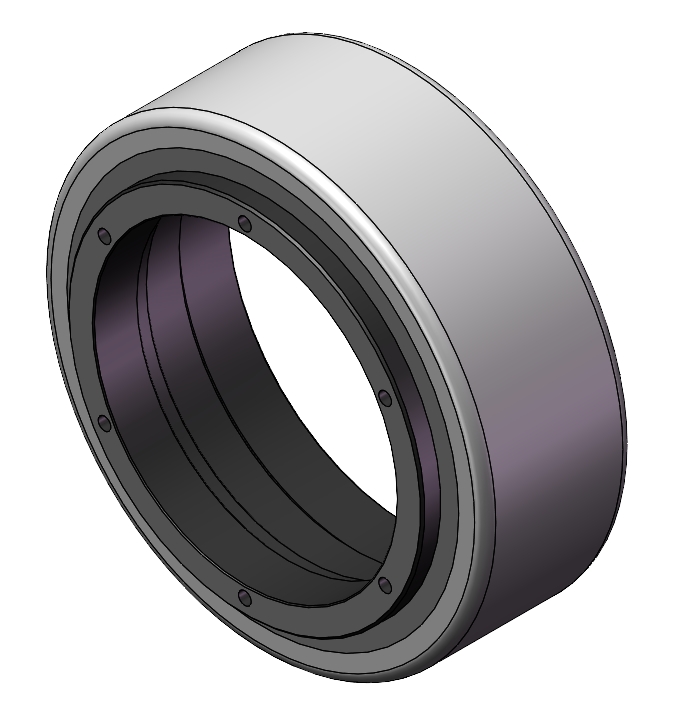

Picture may differ from original product
QPU Series
Wheel Diameter × Wheel Width 210 x 70mm
YJ-12036308280340
Wheel Diameter（D）210mm
Tread Pattern—
Load Capacity at 6 km/h510kgs
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

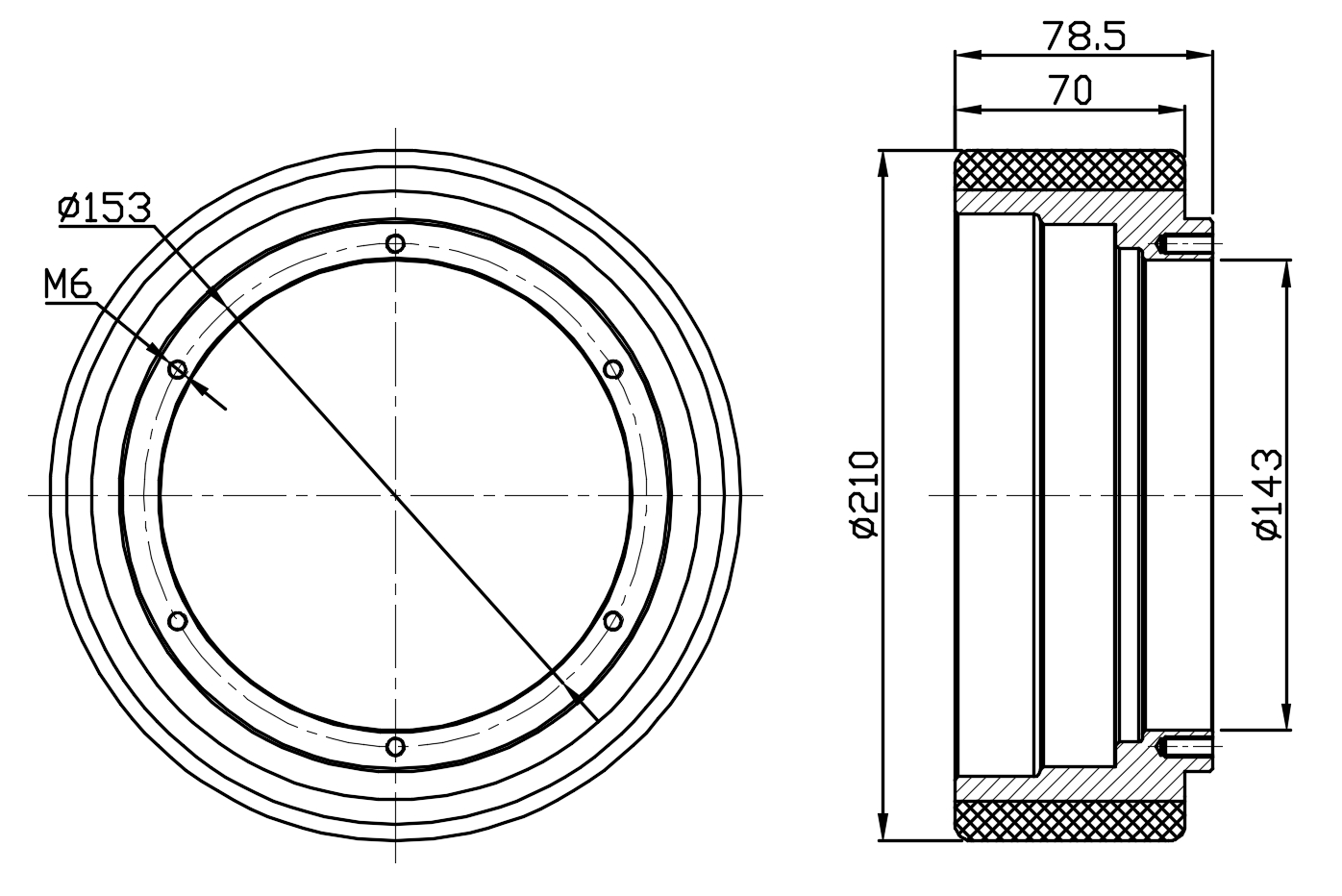

Product Data Sheet
- Wheel Diameter（D）
- 210mm
- Wheel Width（T2）
- 70mm
- Wheel installation — Hub Lenth (T1)
- 78.5mm
- Wheel center-bore diameter (d)
- 143mm
- Wheel Mounting Bolt Hole PCD Diameter
- —
- Wheel Mounting Bolt Hole PCD
- 153mm
- # Of Wheel mounting bolt boles
- —
- Wheel mounting bolt hole (M)
- 6
- Number of wheel mounting bolt holes
- 6
- Load Capacity (Static)
- 900kgs
- Load Capacity at 4 km/h
- 600kgs
- Load Capacity at 6 km/h
- 510kgs
- Load Capacity at 10 km/h
- 420kgs
- Load Capacity at 16 km/h
- 240kgs
- Hardness Of Tread
- 77±5° Shore A
- Temperature
- -20°C to +70°C
- Tread Pattern
- —
- Wheel centre/ rim
- Non-Marking
- Y
- Conductive
- N/A
- Anti
- N/A
- Weight
- 4.74kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
