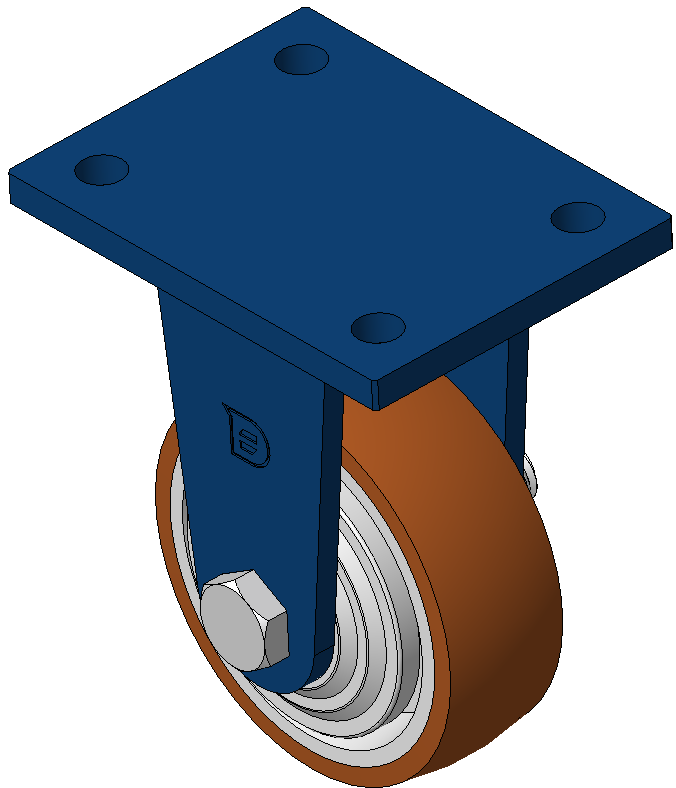

QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm

KS-11020400531111

Wheel Diameter100mm　

Load Capacity (Dynamic)335kgs　

Overall Height147mm　

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket—Hole spacing 90x60
Blue-painted finish，Top plate mounting
Cast iron wheel core，High-quality polyurethane tread
Brown，Wheel bearing—Precision ball bearing。
Tread:High-quality polyurethane
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

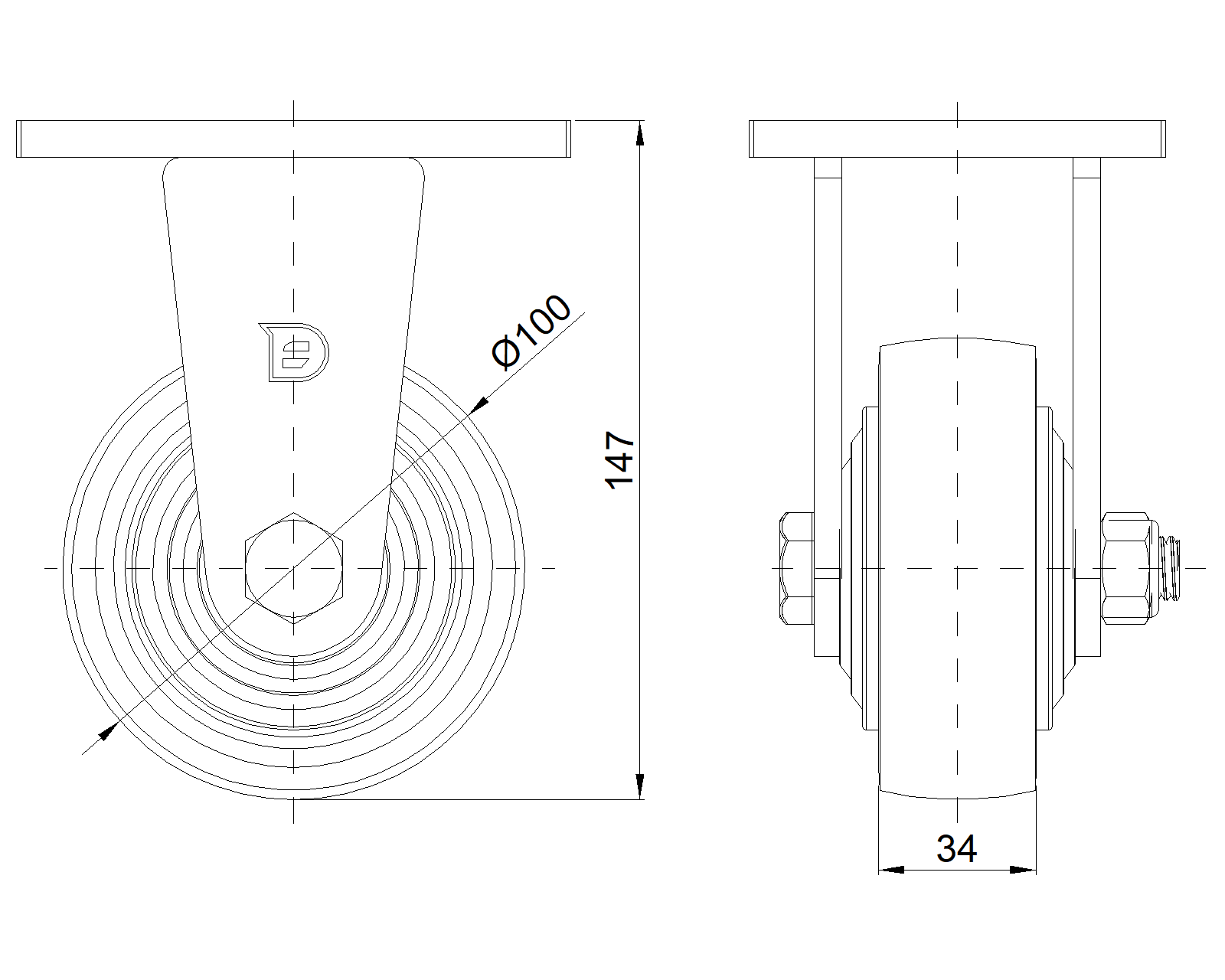

Product Data Sheet

Wheel Diameter: 100mm
Wheel Width: 34mm
Wheel Bearing: Wheels With Ball Bearings

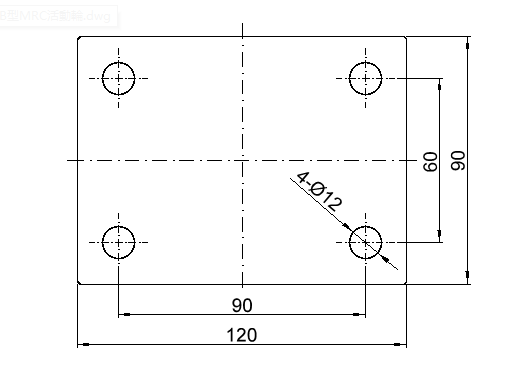

Plate Size: 120 x 90mm
Bolt Hole Spacing: 90 x 60mm
Plate Hole: 12mm
Overall Height: 147mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 335kgs
Load Capacity (Static): 502.5kgs
Temperature: -20°C to +70°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.01kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation

Downloads

PDF KS-110204005311113.pdfProduct Data Sheet 3D KS11020400531111.zip3D drawings are for members only. Please log in to download.
