QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown round) Wheel Diameter × Wheel Width 100 x 34mm

KS-11020400534111

Wheel Diameter100mm　

Load Capacity (Dynamic)335kgs　

Overall Height147mm　

Wheel BearingWheels With Ball Bearings

With rear brake,Caster with locking system,Welded steel plate bracket
Blue-painted finish,Top plate mounting,Hole spacing 90x60
Cast iron wheel core,High-quality polyurethane tread,Brown
Wheel bearing—Precision ball bearing
Tread：High-quality polyurethane
Wheel core:Iron/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

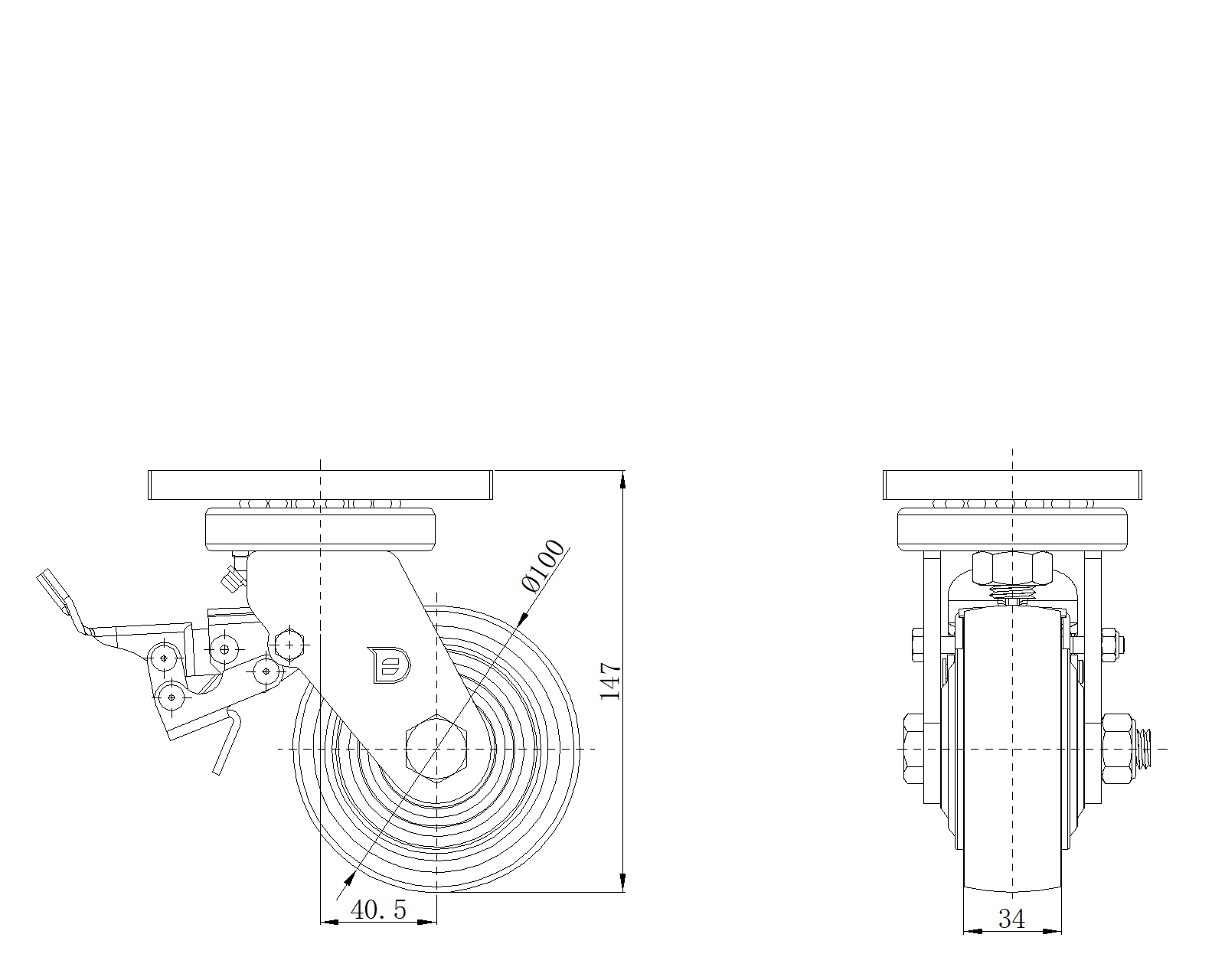

Product Data Sheet

Wheel Diameter: 100mm
Wheel Width: 34mm
Wheel Bearing: Wheels With Ball Bearings

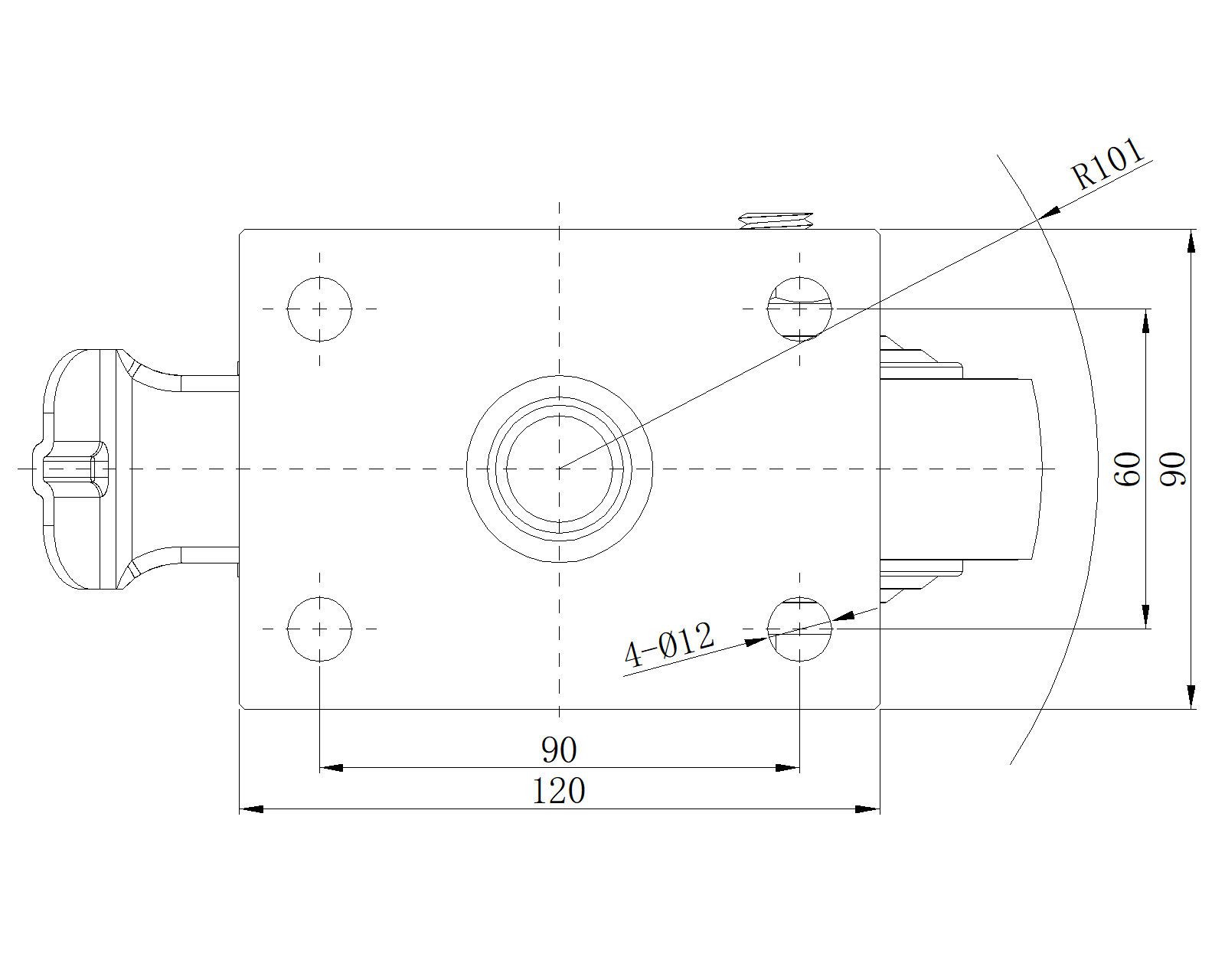

Plate Size: 120 x 90mm
Bolt Hole Spacing: 90 x 60mm
Plate Hole: 12mm
Offset: 40.5mm
Swivel Interference: 202mm
Overall Height: 147mm
Swivel Radius: 101mm
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 335kgs
Load Capacity (Static): 502.5kgs
Temperature: -20°C to +70°C
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 3.01kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
