PU (red round) Wheel Diameter x Wheel Width 100 x 34mm

Picture may differ from original product

1102 B Type Caster Series

PU (red round) Wheel Diameter x Wheel Width 100 x 34mm

KS-11020400331111

Wheel Diameter100mm　4＂

Load Capacity (Dynamic)250kgs　551lbs

Overall Height147mm　5-7/8＂

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 90x60
Cast iron wheel core，High-quality polyurethane tread，Red
Wheel bearing—Precision ball bearing
Tread:High-quality polyurethane
Wheel core:Iron/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

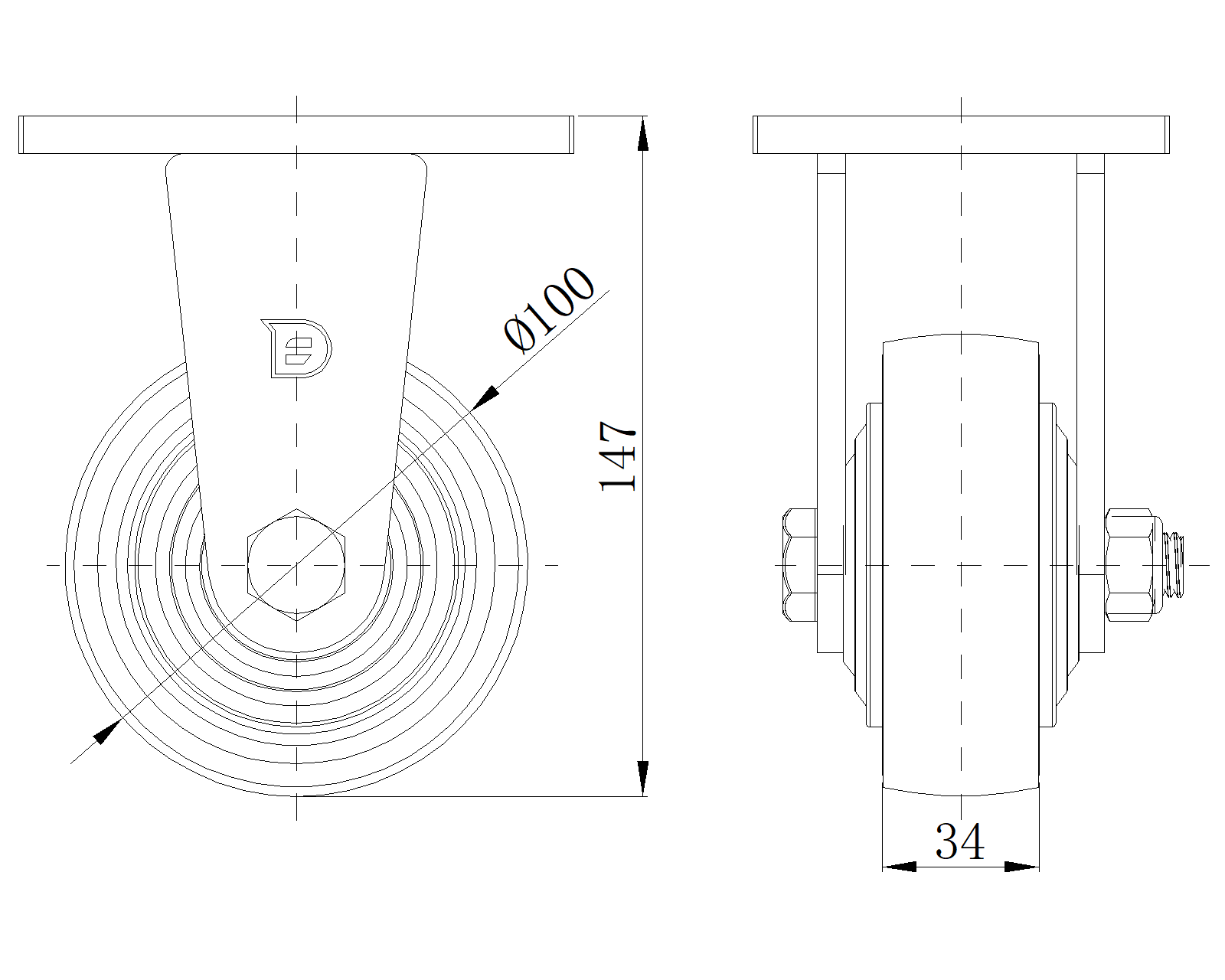

Product Data Sheet

Wheel Diameter: 100mm4＂
Wheel Width: 34mm1-3/8＂
Wheel Bearing: Wheels With Ball Bearings

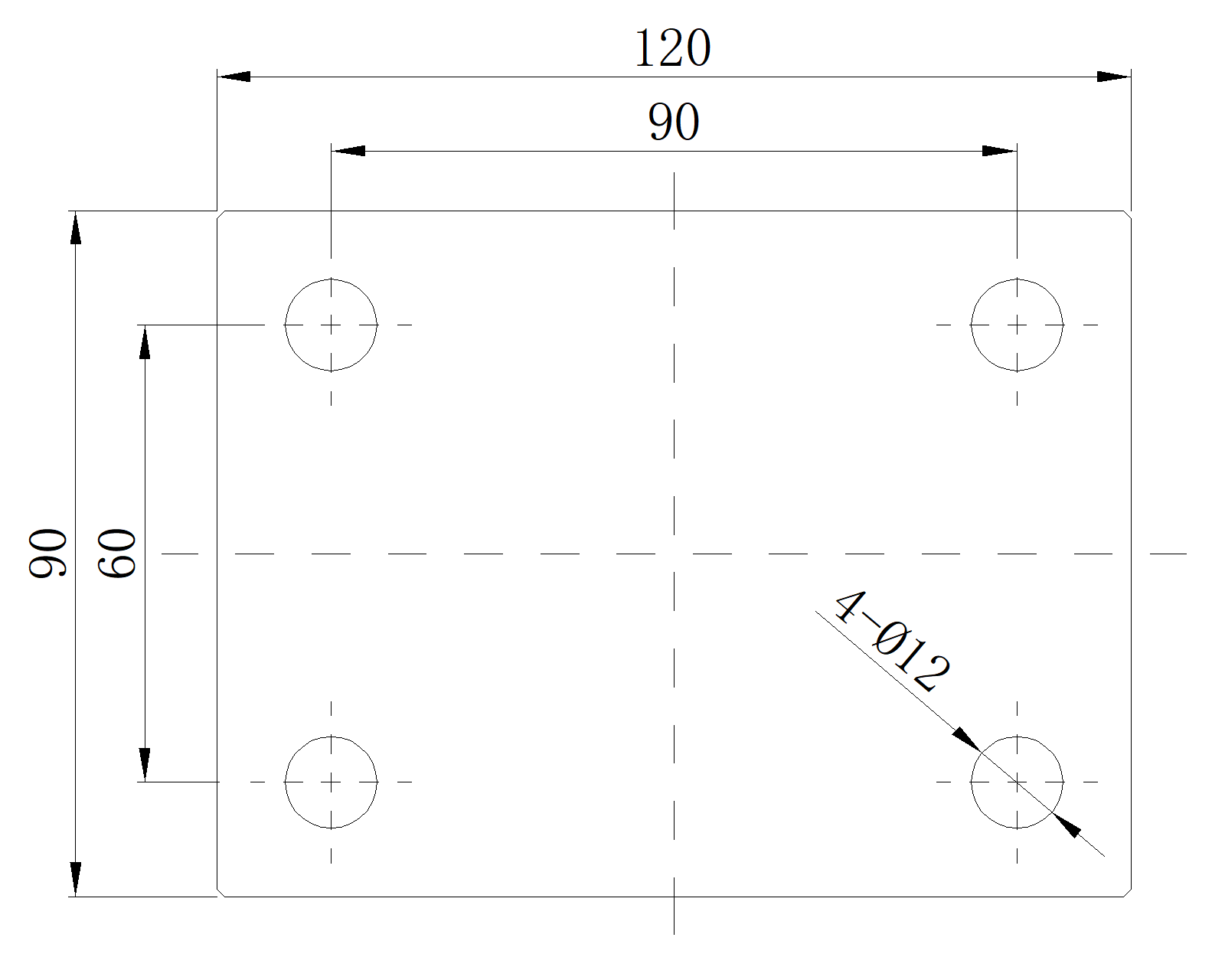

Plate Size: 120 x 90mm4-13/16＂ x 3-9/16＂
Bolt Hole Spacing: 90 x 60mm3-9/16＂x 2-7/16＂
Plate Hole: 12mm1/2＂
Overall Height: 147mm5-7/8＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 250kgs551lbs
Load Capacity (Static): 375kgs827lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.03kgs4.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
