    Product Data Sheet
1102 B Type Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 100 x 34mm
　　EAN
　　　　　 KS-11020400332031
　　　　　 　　　

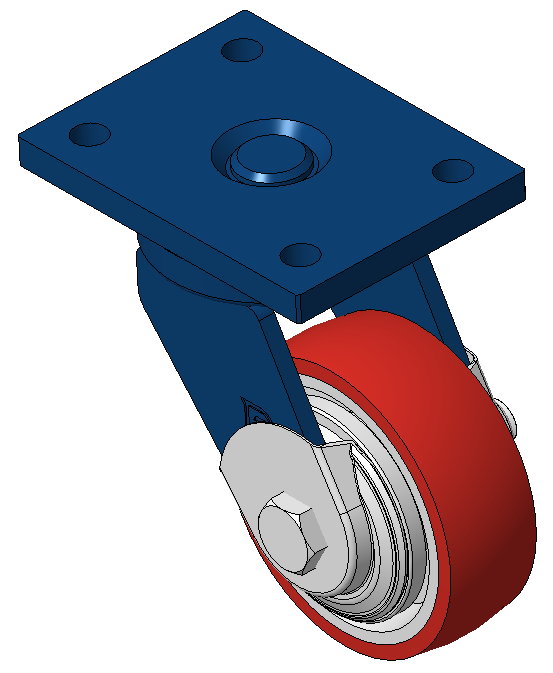

Swivel Caster, Welded Caster Fork - 90x60 Bolt Hole Spacing
Blue painted finish, Mounting Type - Top Plate
Cast Iron core, High Quality Polyurethane Wheel Tread, Cast Iron red
Bearing - Ball Bearing, with special anti-wrap wheel cover
　　Wheel Tread: Hhigh-Quality Polyurethane
　　Wheel Center: iron core/cast iron core

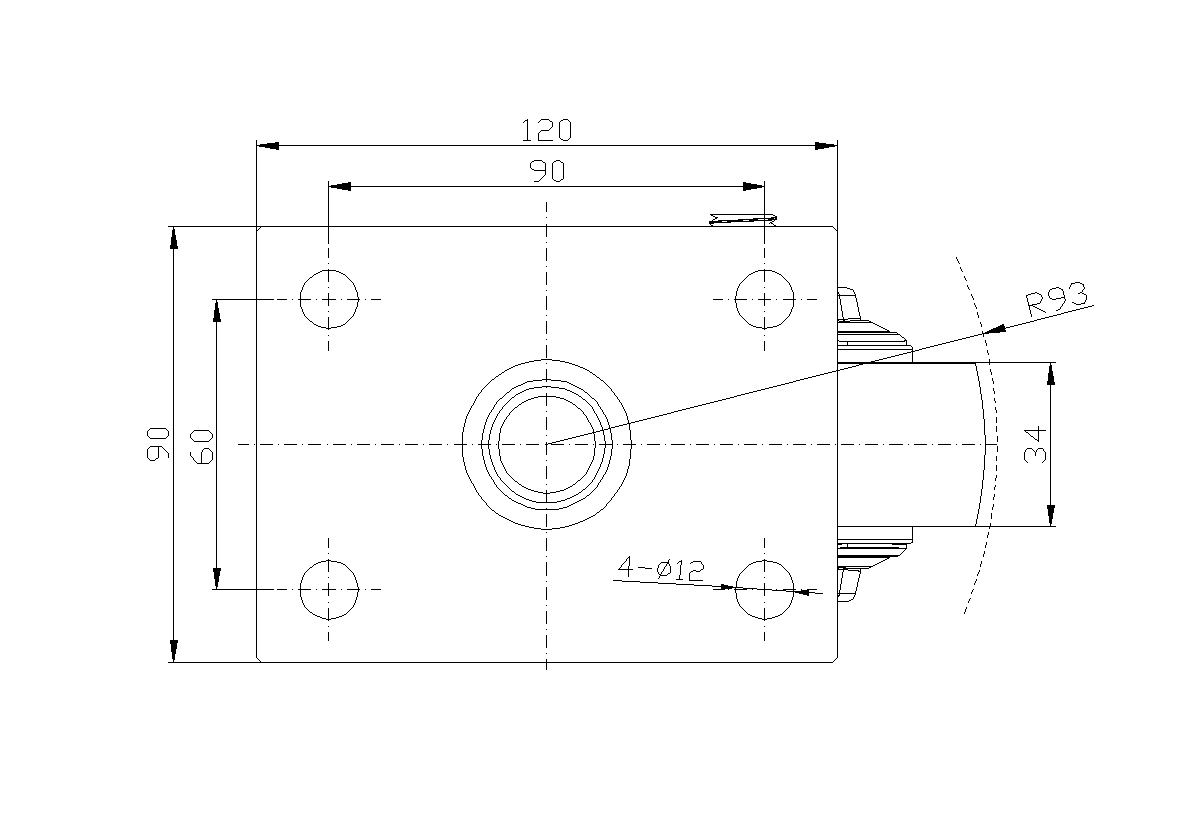

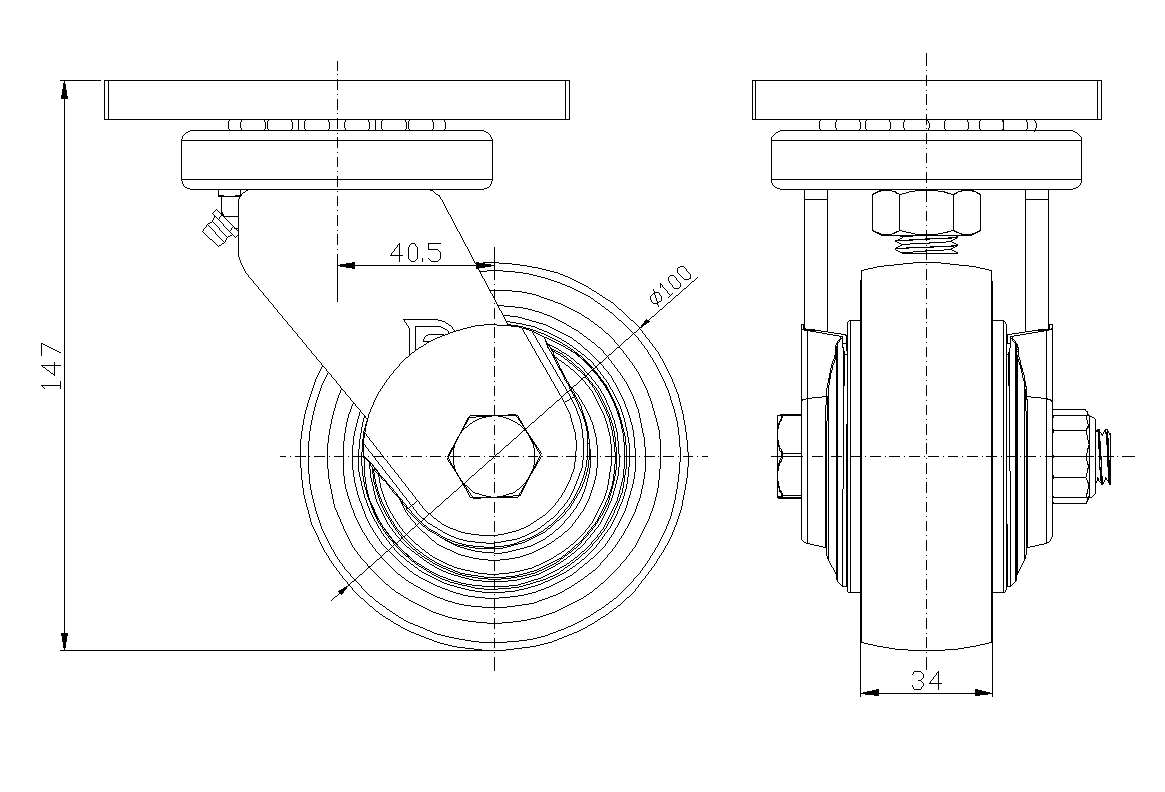

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 120 x 90mm　
　　Bolt Hole Spacing 90 x 60mm　
　　Plate Hole 12mm　
　　Offset 40.5mm　
　　Swivel Interference 186mm　
　　Overall Height 147mm　
　　Swivel Radius 93mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.77kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

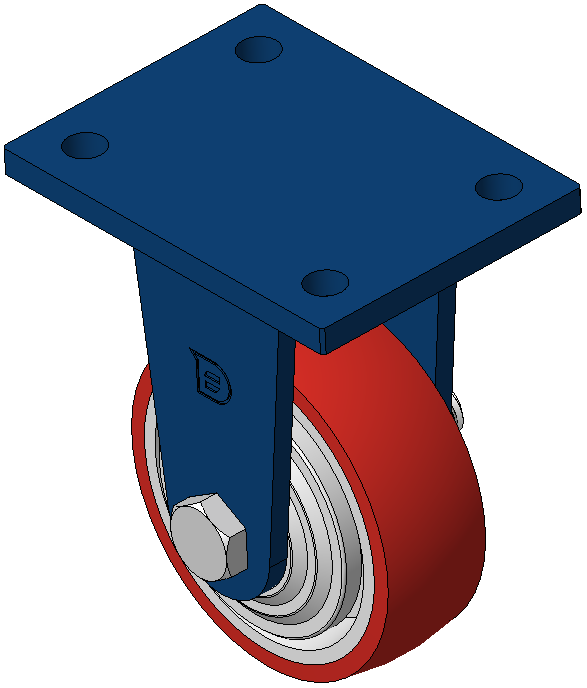

1102 B Type Caster Series
PU (red round) Wheel Diameter x Wheel Width 100 x 34mm
KS-11020400331111
100 mm 250 Kgs 147 mm
Rigid Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 90x60 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings

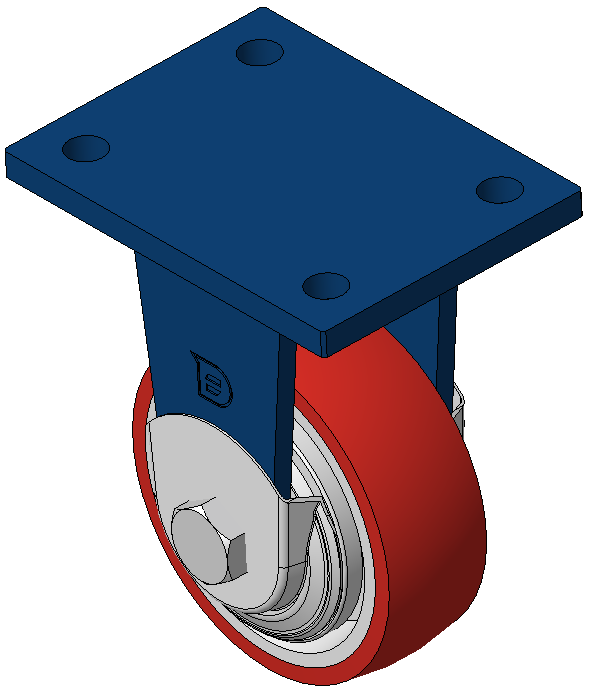

1102 B Type Caster Series
