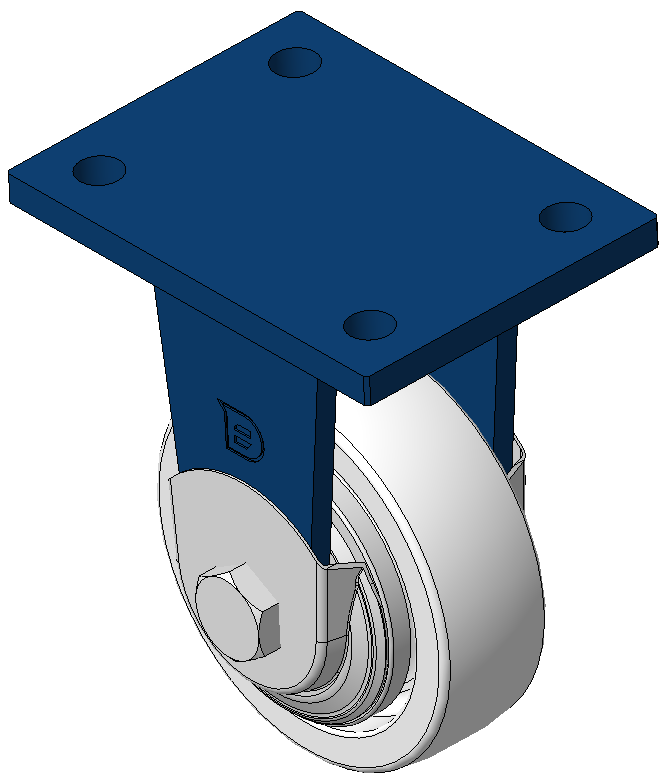

Blue-painted finish, Mounting Type - Top Plate
Natural thermoplastic Wheel Center and Wheel Tread
Bearings - Ball Bearings with special anti-tangle wheel covers
Wheel Center: Thermoplastic (PA6)

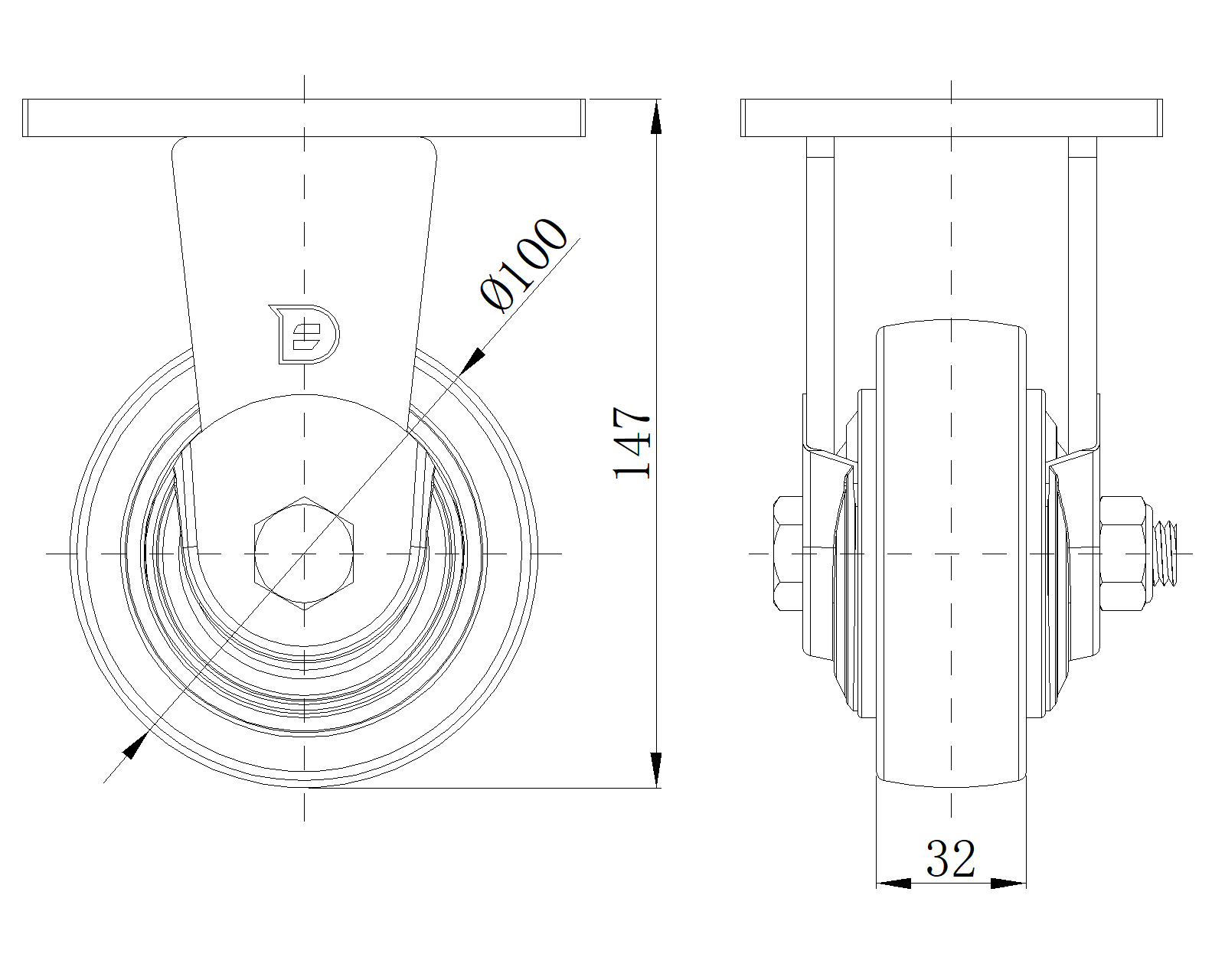

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
32mm
Wheel Bearing
Wheels With Ball Bearings

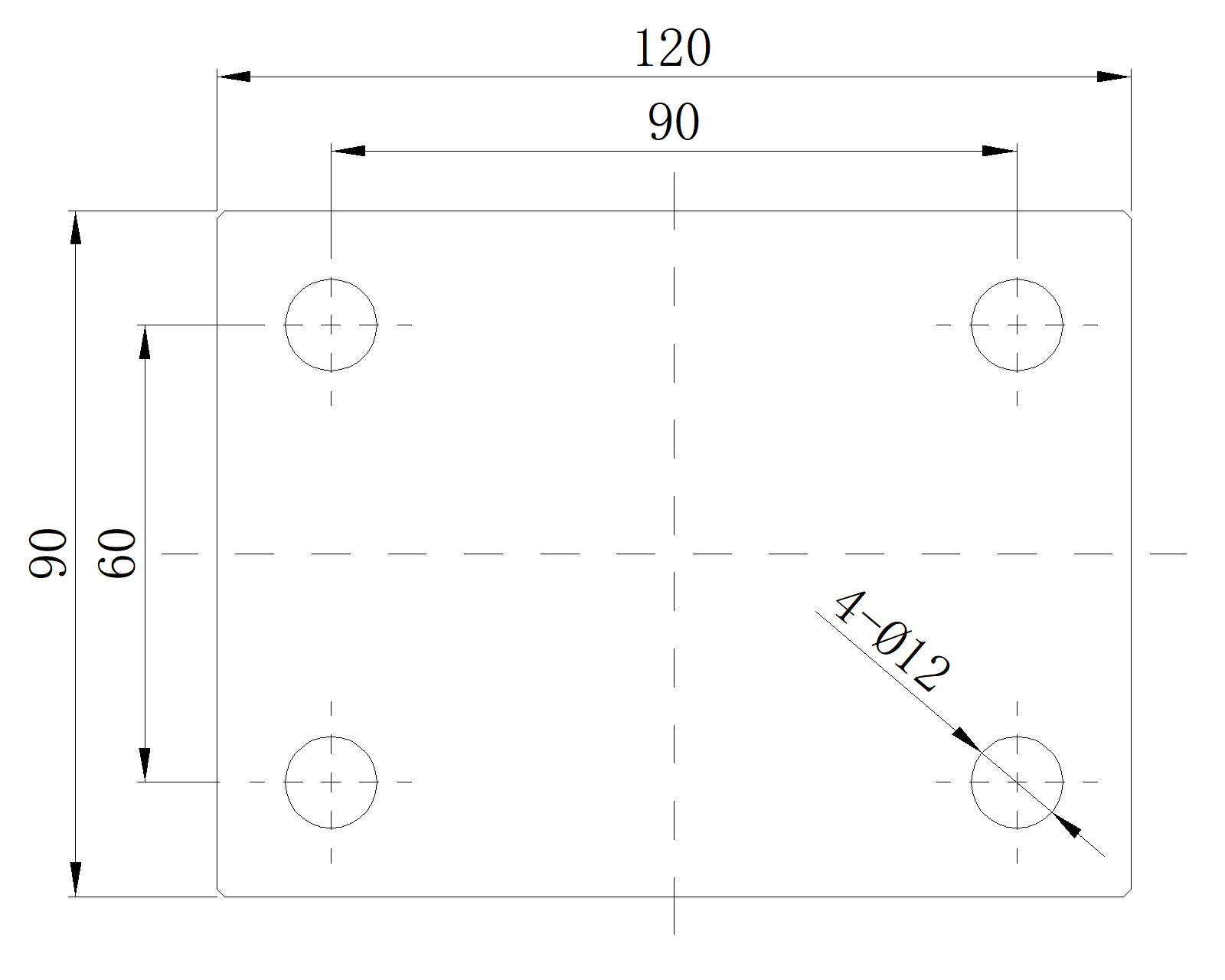

Plate Size
120 x 90mm
Bolt Hole Spacing
90 x 60mm
Plate Hole
12mm
Overall Height
147mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
250kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
375kgs
Temperature
-20°C to +80°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
1.69kgs
Standard
ISO22883
