Nylon Wheel Diameter × Wheel Width 100 x 32mm

Picture may differ from original product

1102 B Type Caster Series

Nylon Wheel Diameter × Wheel Width 100 x 32mm

KS-11020400072021 / YJ-11020400072021

Wheel Diameter100mm　4＂

Load Capacity (Dynamic)250kgs　551lbs

Overall Height147mm　5-7/8＂

Wheel BearingWheels With Ball Bearings

Swivel caster，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 90x60
Thermoplastic wheel core、Tread，Natural color
Wheel bearing—Precision ball bearing，With special anti-wrap wheel covers
Tread：Thermoplastic（PA6）
Wheel core：Thermoplastic（PA6）

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

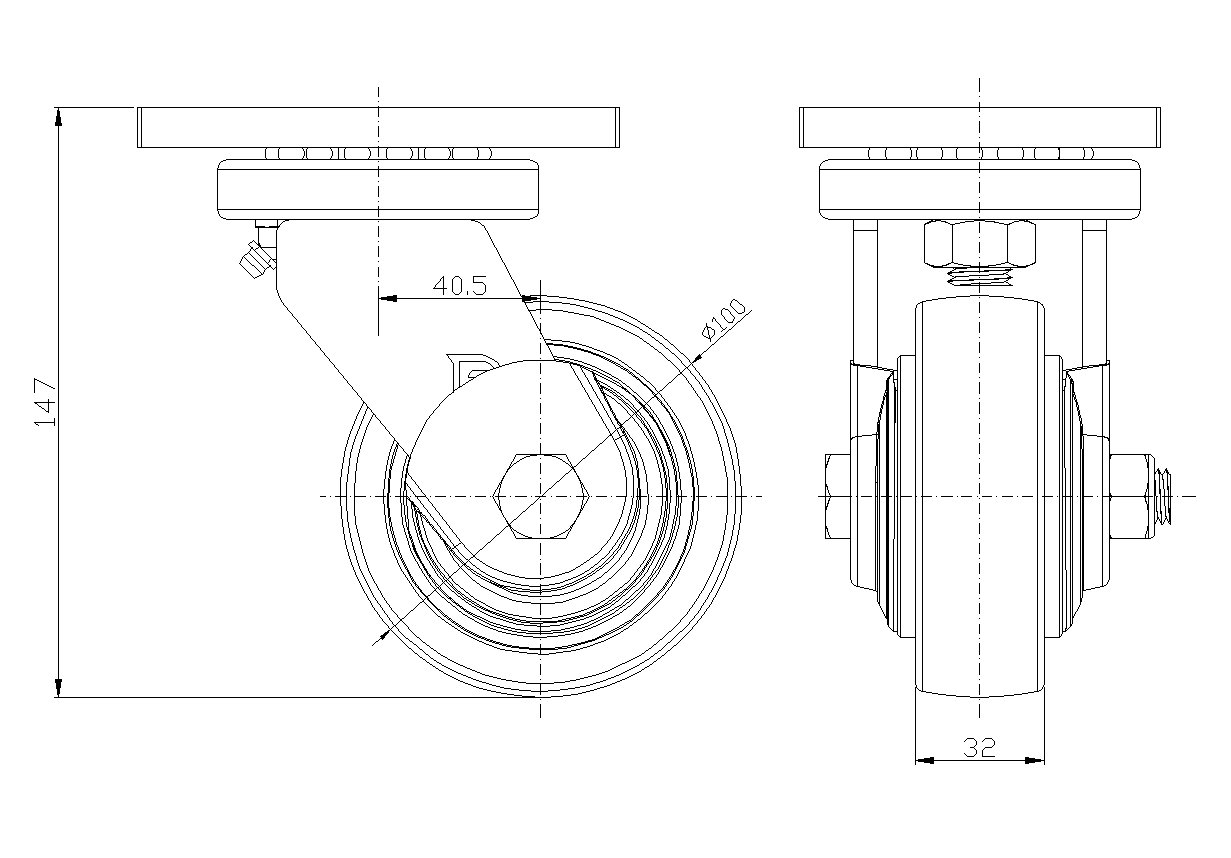

Wheel Diameter: 100mm4＂
Wheel Width: 32mm1-5/16＂
Wheel Bearing: Wheels With Ball Bearings

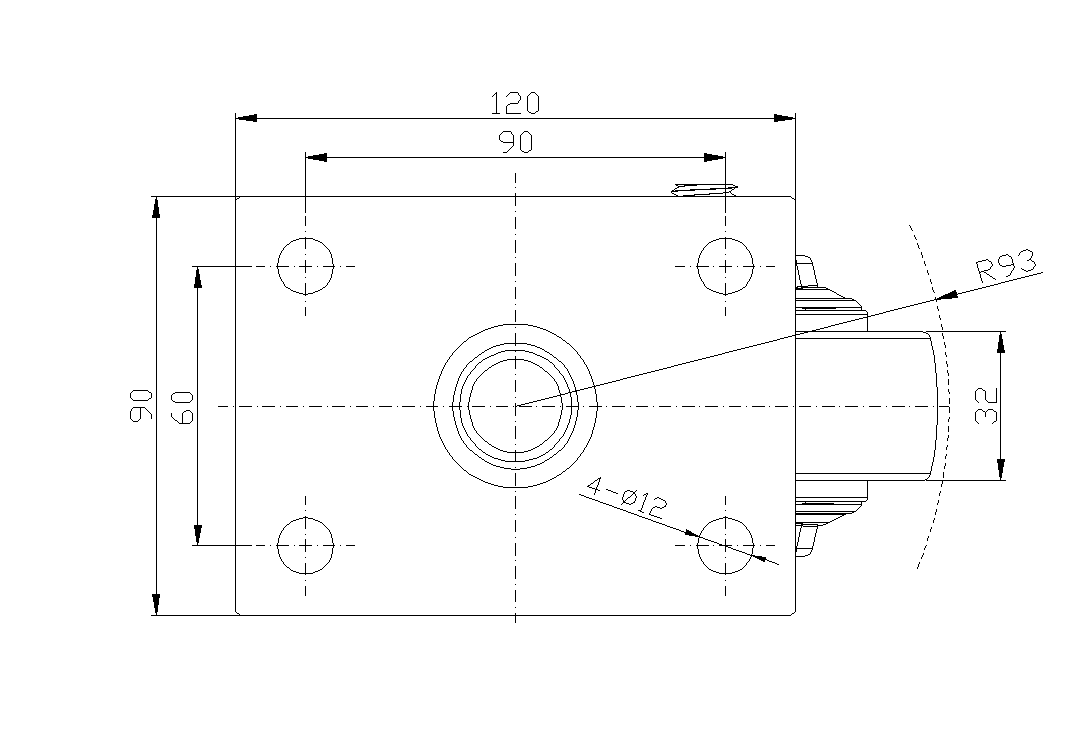

Plate Size: 120 x 90mm4-13/16＂ x 3-9/16＂
Bolt Hole Spacing: 90 x 60mm3-9/16＂x 2-7/16＂
Plate Hole: 12mm1/2＂
Offset: 40.5mm1-5/8＂
Swivel Interference: 186mm7-7/16＂
Overall Height: 147mm5-7/8＂
Swivel Radius: 93mm3-11/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 250kgs551lbs
Load Capacity (Static): 375kgs827lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.34kgs5.2lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
