    Product Data Sheet
1102 B Type Caster Series
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11020500042071
　　　　　 　　　

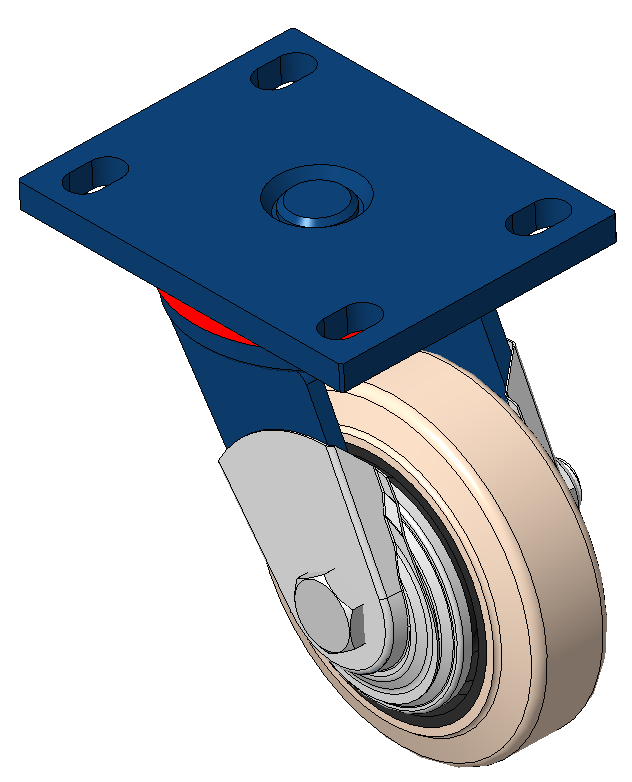

Swivel Caster, Welded Caster Fork - 110x75 Bolt Hole Spacing
Blue-painted finish, Mounting Type - Top Plate
Cast Iron core, High-Quality, highly Resilient Rubber Wheel Tread, Cast Iron in natural color
Bearing - Ball Bearing, with special anti-wrap wheel cover
　　Wheel surface: Made of high-quality, highly elastic rubber
　　Wheel Center: iron core/cast iron core

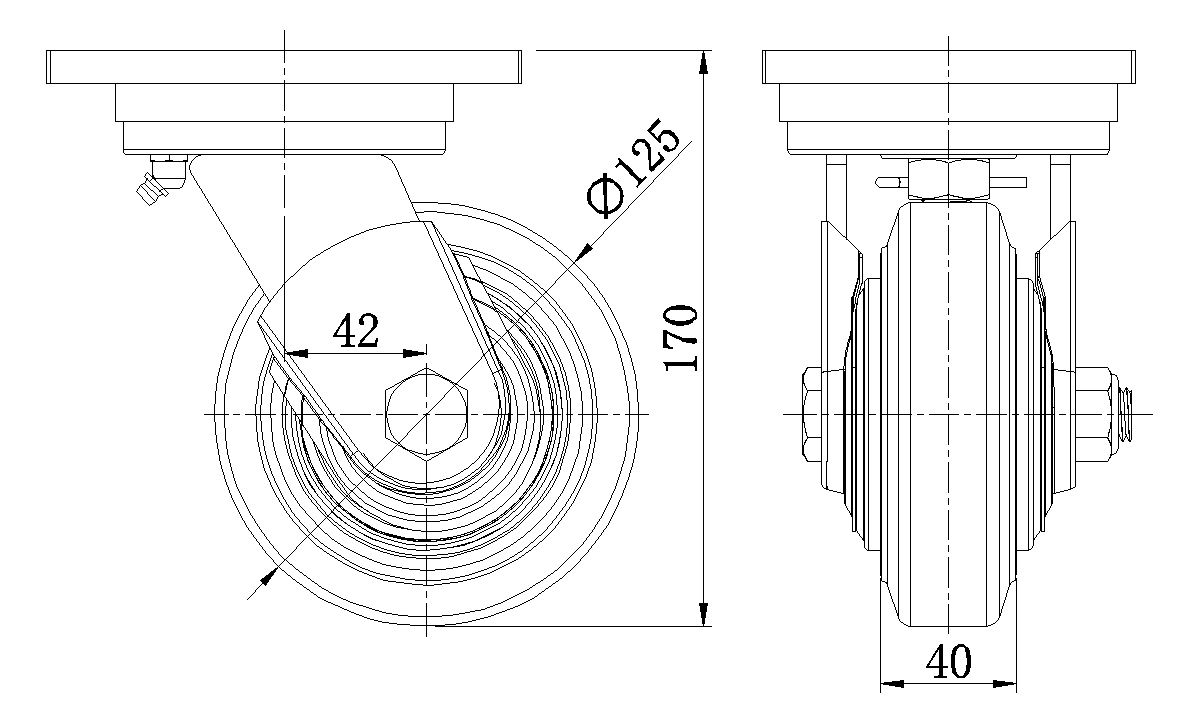

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

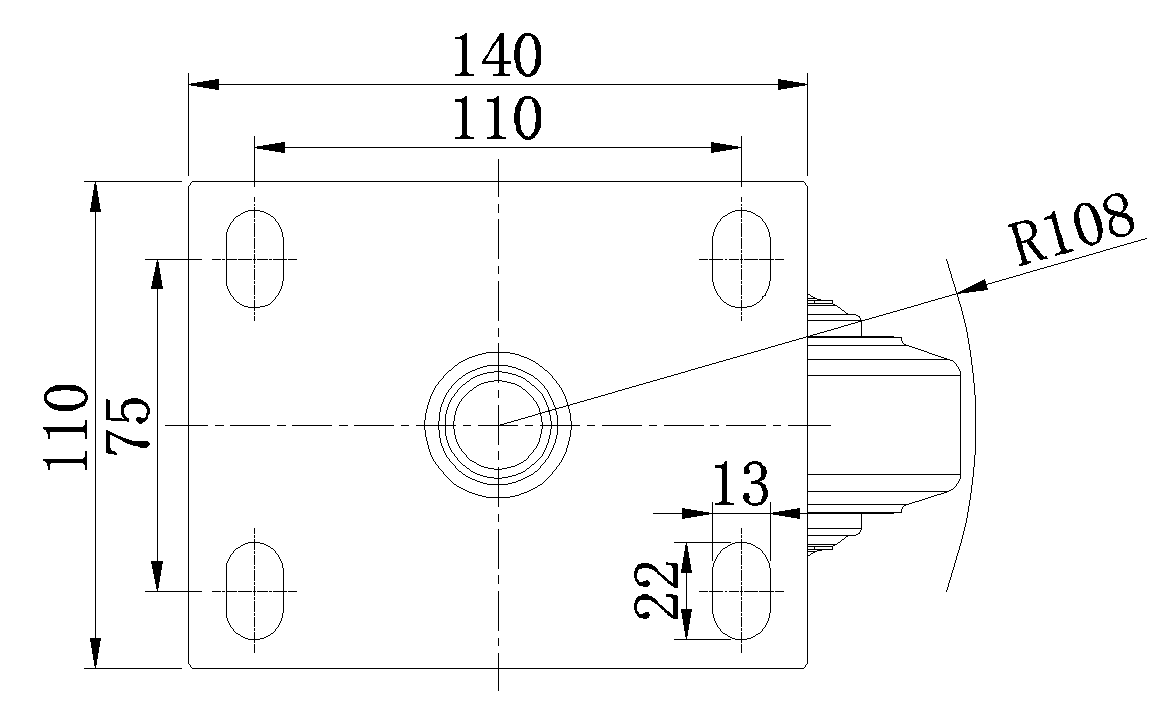

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 216mm　
　　Overall Height 170mm　
　　Swivel Radius 108mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.04kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm
KS-11020500041071
125 mm 250 Kgs 170 mm

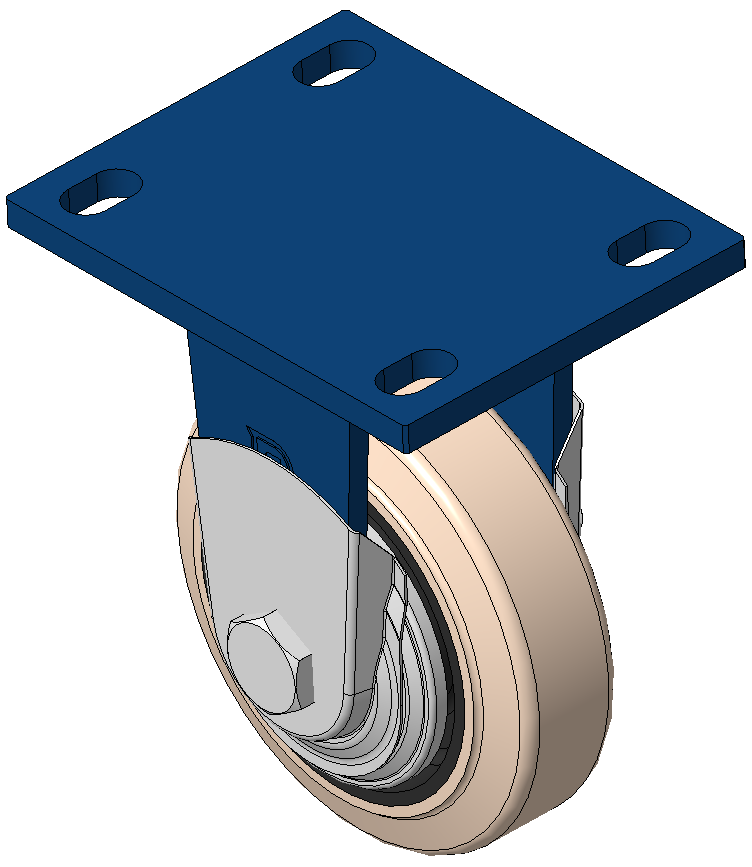

Rigid Caster, Welded Caster Fork - 110x75 Bolt Hole Spacing
Blue-painted finish, Mounting Type - Top Plate, and special anti-twist wheel cover
Cast Iron Wheel Center, High-Quality, highly Resilient Rubber Wheel Tread
Cast Iron finish, Bearing - Ball Bearings
1102 B Type Caster Series
Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm
KS-11020500044051
125 mm 250 Kgs 170 mm

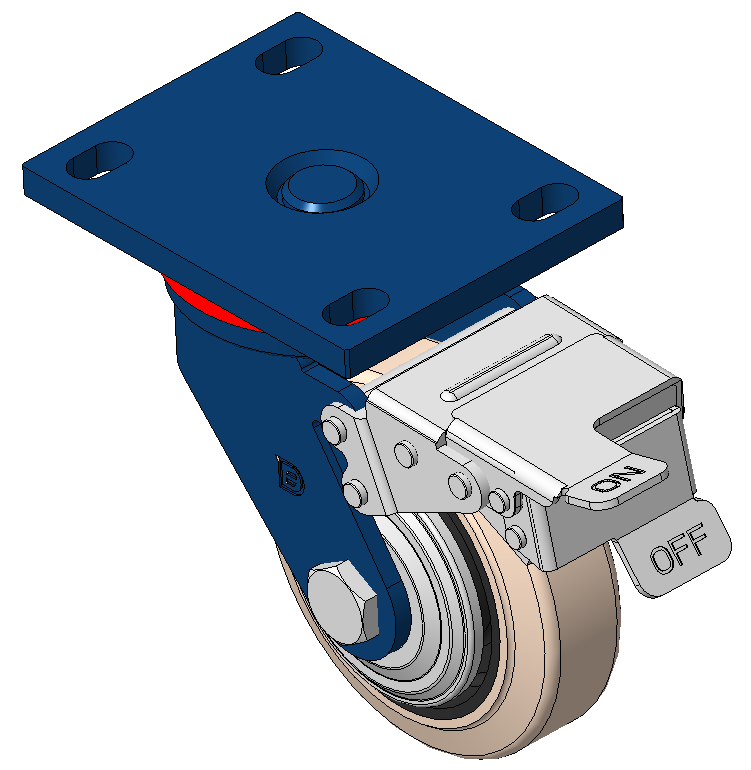

Casters with Front Brake locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High-Quality, highly Resilient Rubber tread Iron finish, Bearing—Ball Bearing
