Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm

Picture may differ from original product

1102 B Type Caster Series

Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 125 x 40mm

KS-11020500041071

Wheel Diameter125mm　5＂

Load Capacity (Dynamic)250kgs　551lbs

Overall Height170mm　6-13/16＂

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket—Hole spacing 110x75
Blue-painted finish，Top plate mounting，With special anti-wrap wheel covers
Cast iron wheel core，High-quality high-resilience rubber tread
Natural color，Wheel bearing—Precision ball bearing
Tread:High-quality high-resilience rubber
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

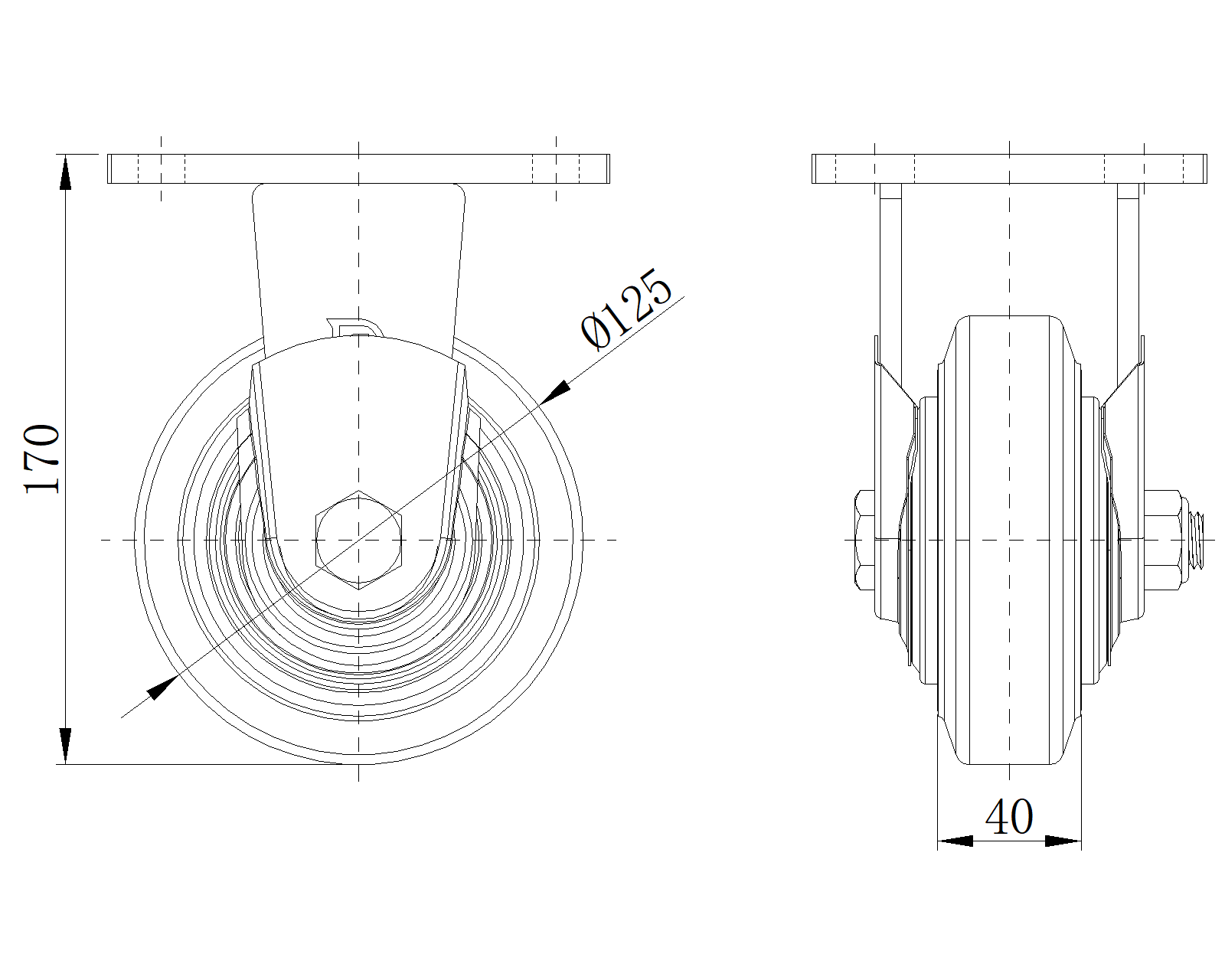

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

Wheel Diameter: 125mm5＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings
Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 170mm6-13/16＂
Hardness Of Tread: 85±5° Shore A
Load Capacity (Dynamic): 250kgs551lbs
Load Capacity (Static): 375kgs827lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 3.00kgs6.6lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
