QPU (brown flat) Wheel Diameter x Wheel Width 125 x 40mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown flat) Wheel Diameter x Wheel Width 125 x 40mm

KS-11020500534041

Wheel Diameter125mm　5＂

Load Capacity (Dynamic)500kgs　1102lbs

Overall Height170mm　6-13/16＂

Wheel BearingWheels With Ball Bearings

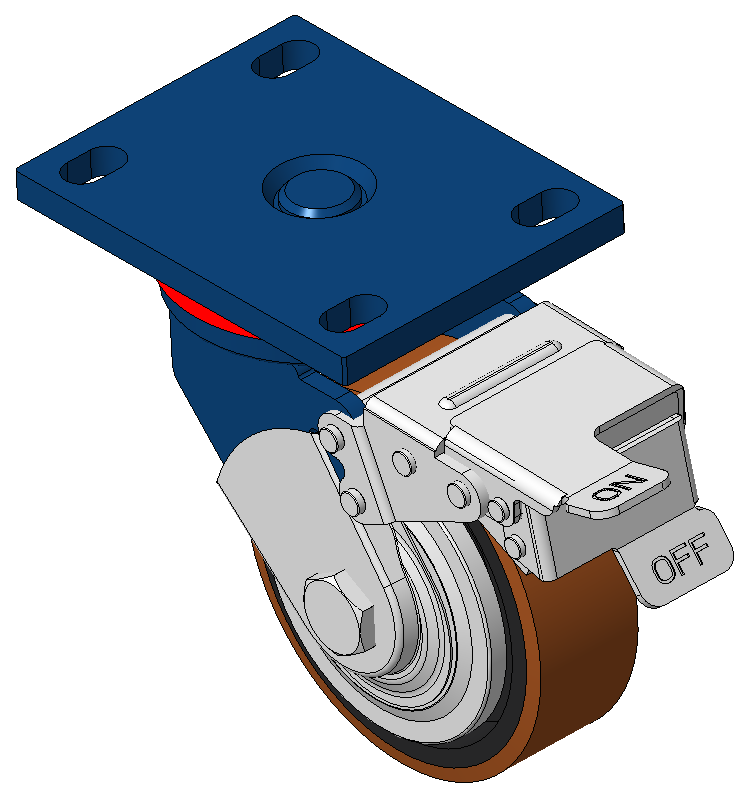

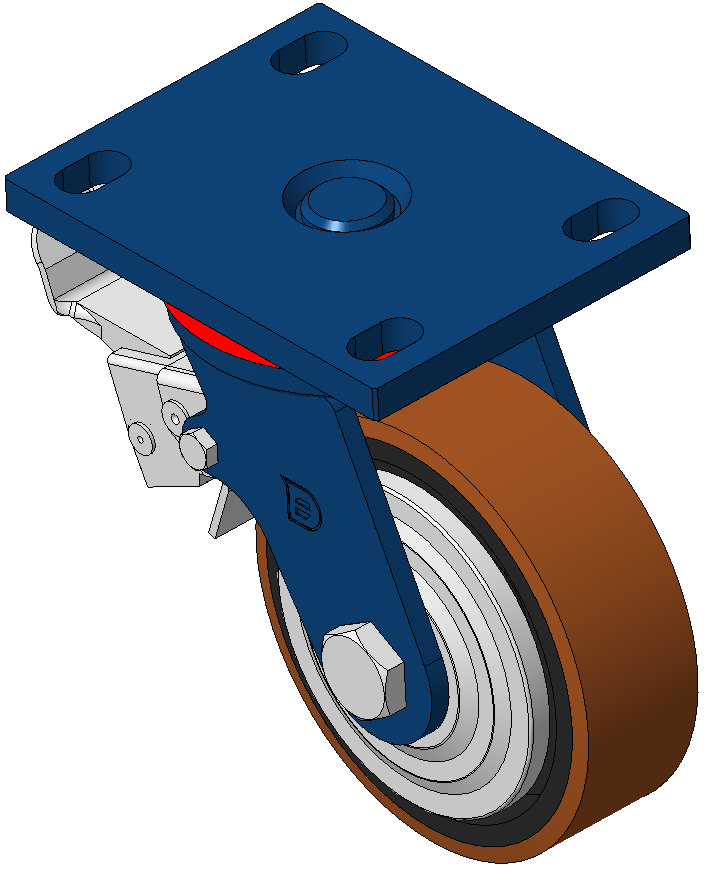

Casters with rear brake and With locking system, Welded Caster Fork
Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
Wheel tread: Made of high quality polyurethane
Wheel center: iron core/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

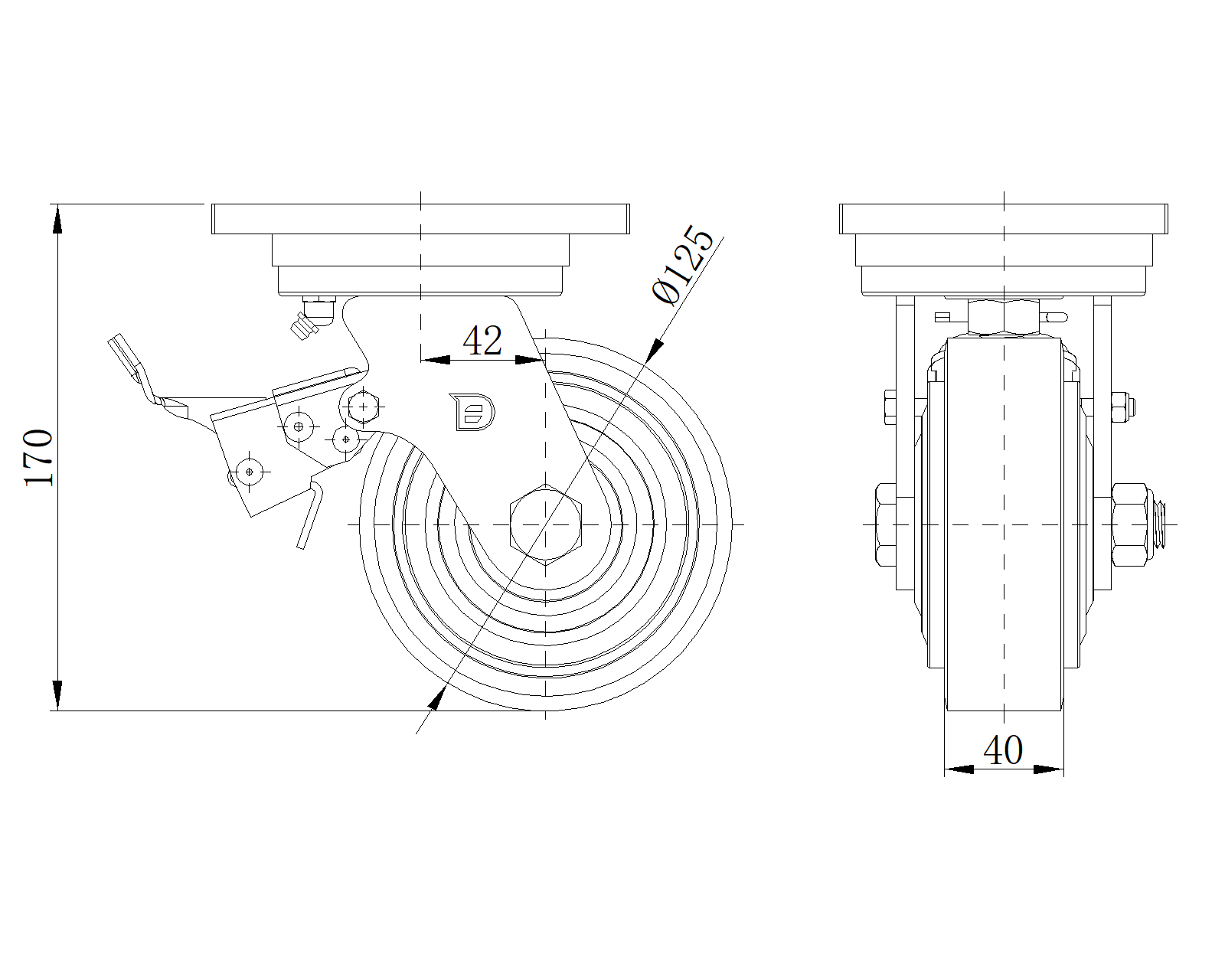

Wheel Diameter: 125mm5＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

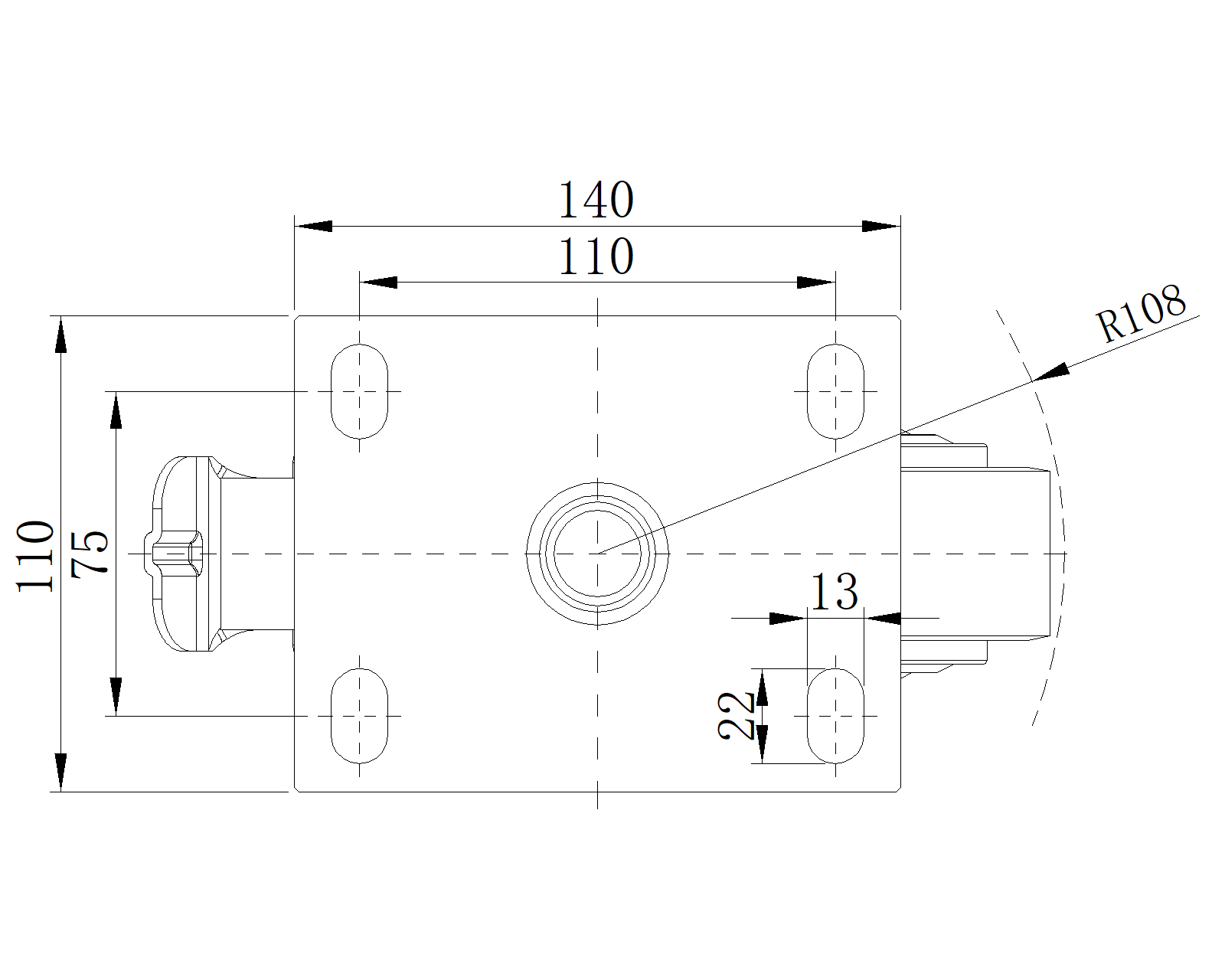

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 42mm1-11/16＂
Swivel Interference: 216mm8-9/16＂
Overall Height: 170mm6-13/16＂
Swivel Radius: 108mm4-5/16＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 500kgs1102lbs
Load Capacity (Static): 750kgs1653lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.24kgs9.3lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
