QPU (brown flat) Wheel Diameter x Wheel Width 125 x 40mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown flat) Wheel Diameter x Wheel Width 125 x 40mm

KS-11020500534061

Wheel Diameter125mm　5＂

Load Capacity (Dynamic)500kgs　1102lbs

Overall Height170mm　6-13/16＂

Wheel BearingWheels With Ball Bearings

Front Brake Locking system, Welded Caster Fork - 110x75 Bolt Hole Spacing
Blue painted finish, Mounting Type - Top Plate
Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron brown
Bearing - Ball Bearing with special Anti-thread wheel cover
Wheel tread: high quality polyurethane wheel tread
Wheel center: iron core/cast iron

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

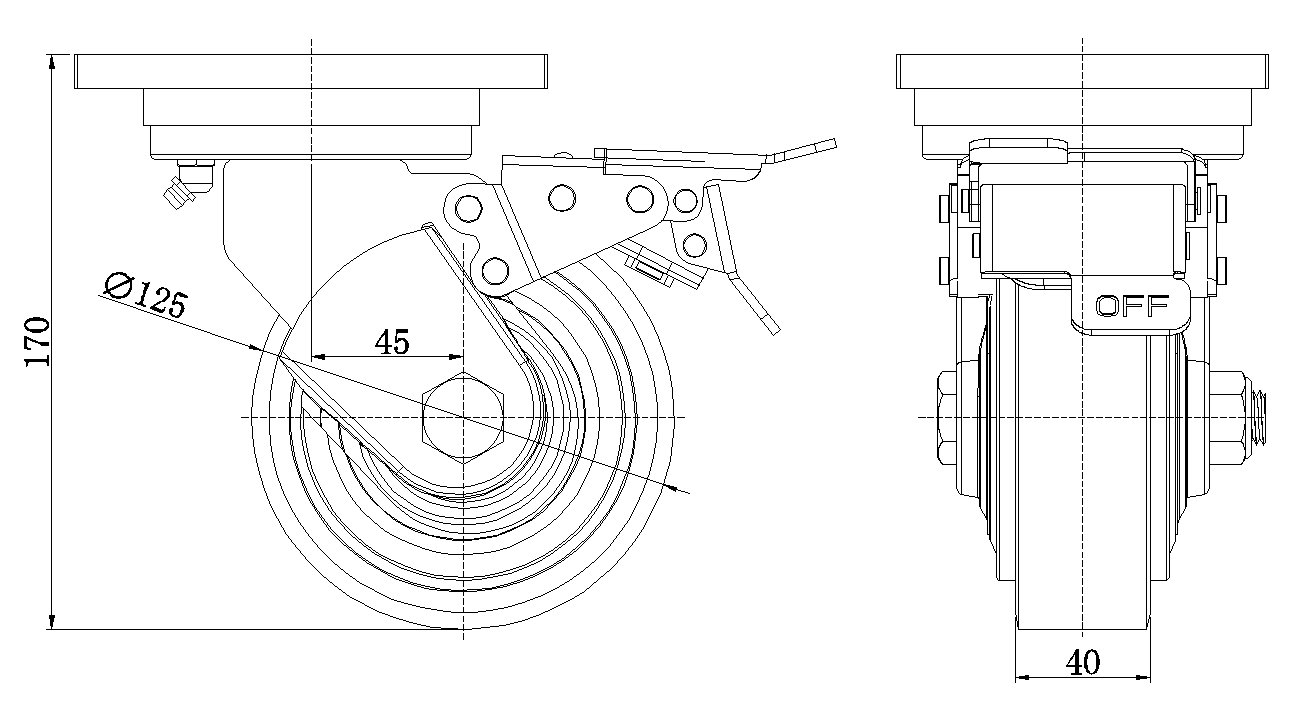

Wheel Diameter: 125mm5＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

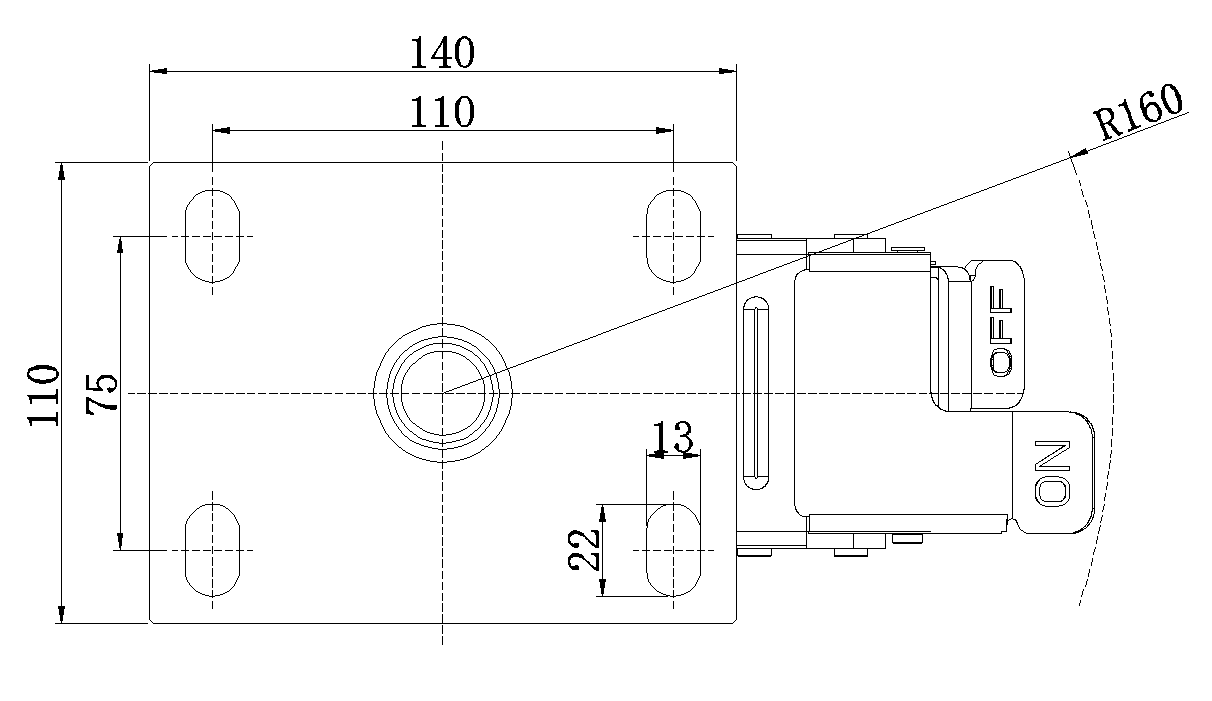

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 45mm1-13/16＂
Swivel Interference: 320mm12-11/16＂
Overall Height: 170mm6-13/16＂
Swivel Radius: 160mm6-3/8＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 500kgs1102lbs
Load Capacity (Static): 750kgs1653lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Front Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.45kgs9.8lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
