CPD Wheel Diameter x Wheel Width 150 x 40mm

Picture may differ from original product

1102 B Type Caster Series

CPD Wheel Diameter x Wheel Width 150 x 40mm

KS-11020600292021

Wheel Diameter150mm　6＂

Load Capacity (Dynamic)350kgs　772lbs

Overall Height197mm　7-7/8＂

Wheel BearingWheels With Ball Bearings

Swivel Caster with Welded Caster Fork
Blue-painted finish, Mounting Type - Top Plate, 110x75mm Bolt Hole Spacing
Natural High-quality Impact Resistance Polypropylene Wheel Center and tread
Precision ball bearings with special Anti-thread wheel cover
Wheel Tread: PP polypropylene
Wheel Center: PP polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

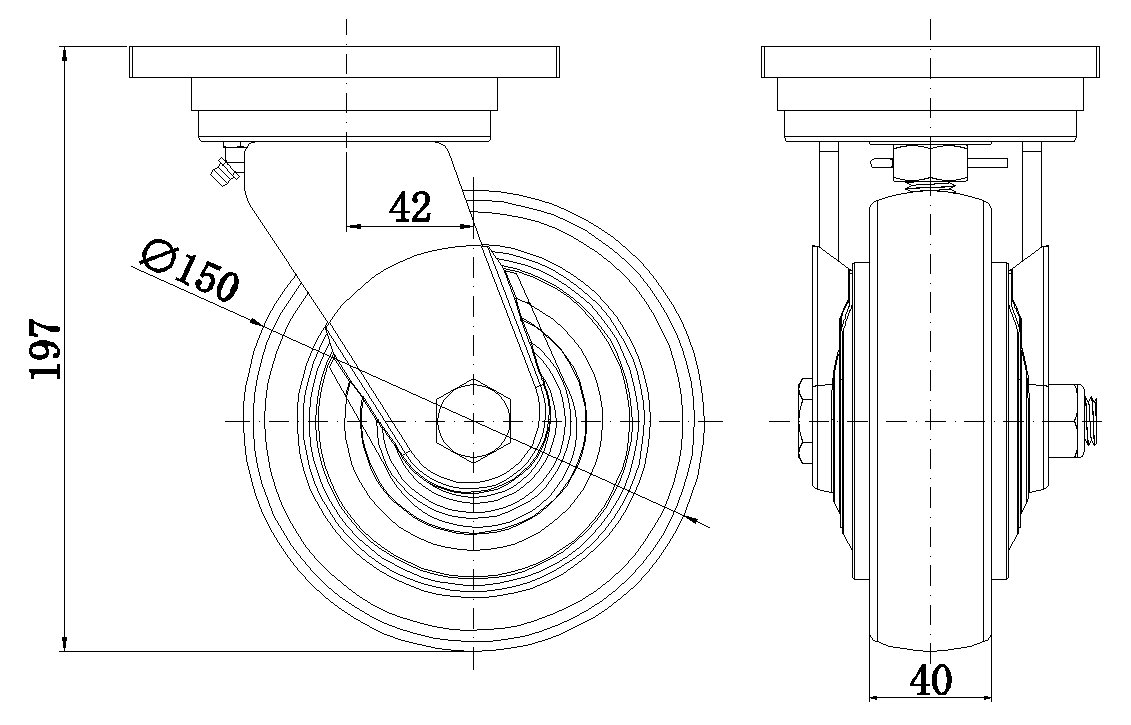

Wheel Diameter: 150mm6＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

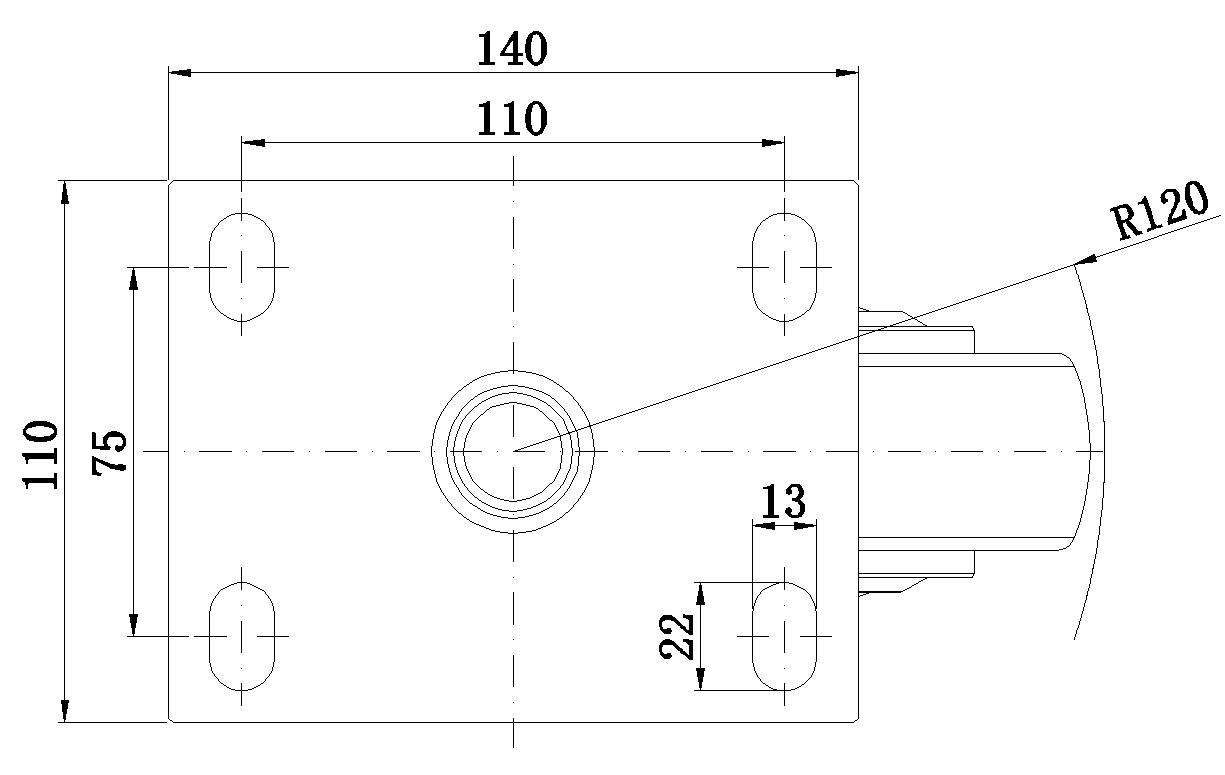

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 42mm1-11/16＂
Swivel Interference: 240mm9-1/2＂
Overall Height: 197mm7-7/8＂
Swivel Radius: 120mm4-13/16＂
Hardness Of Tread: 72±5° Shore D
Load Capacity (Dynamic): 350kgs772lbs
Load Capacity (Static): 525kgs1157lbs
Temperature: -12°C to +60°C4°F to +140°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 3.51kgs7.7lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 3

Floor Surface PreservationMax. 5 pointsScore: 3
