CPD Wheel Diameter x Wheel Width 150 x 40mm

Picture may differ from original product

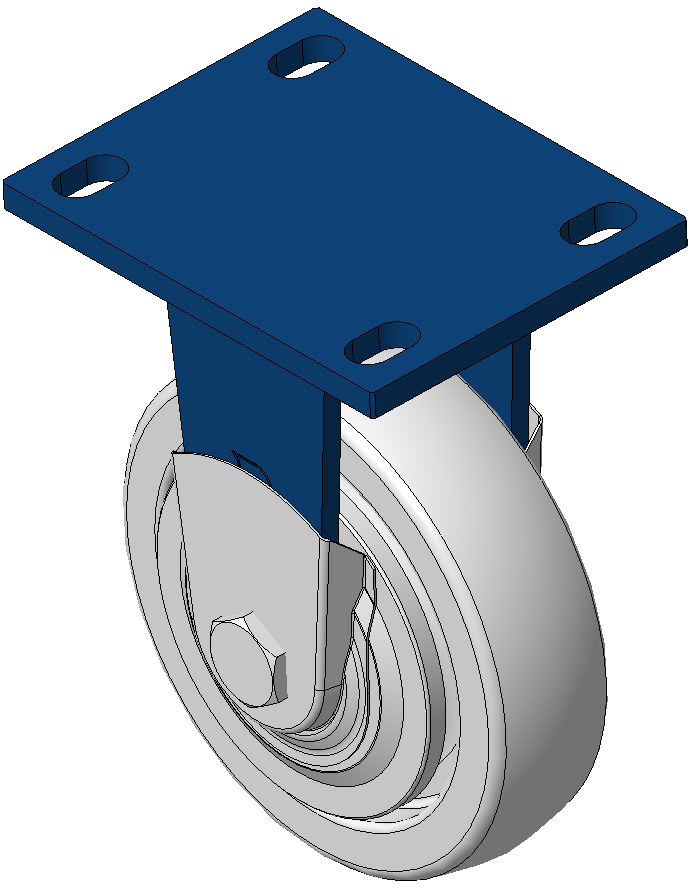

1102 B Type Caster Series

CPD Wheel Diameter x Wheel Width 150 x 40mm

KS-11020600291021

Wheel Diameter150mm　6＂

Load Capacity (Dynamic)350kgs　772lbs

Overall Height197mm　7-7/8＂

Wheel BearingWheels With Ball Bearings

Fixed caster，Welded steel plate bracket—Hole spacing 110x75
Blue-painted finish，Top plate mounting，With special anti-wrap wheel covers
Polypropylene wheel core、Tread
Natural color，Wheel bearing—Precision ball bearing
Tread：PP polypropylene
Wheel core：PP polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

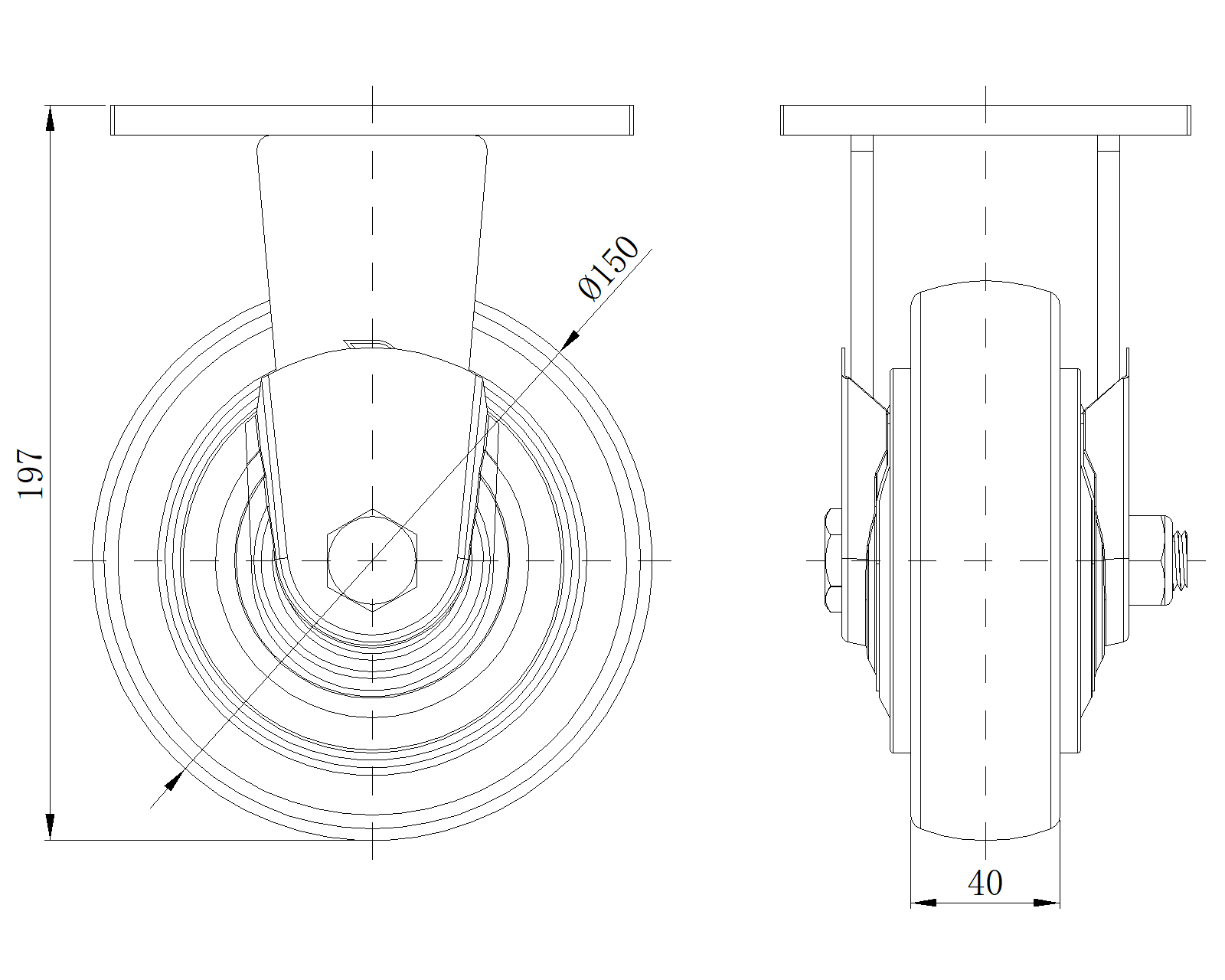

Product Data Sheet

Wheel Diameter: 150mm6＂
Wheel Width: 40mm1-5/8＂
Wheel Bearing: Wheels With Ball Bearings

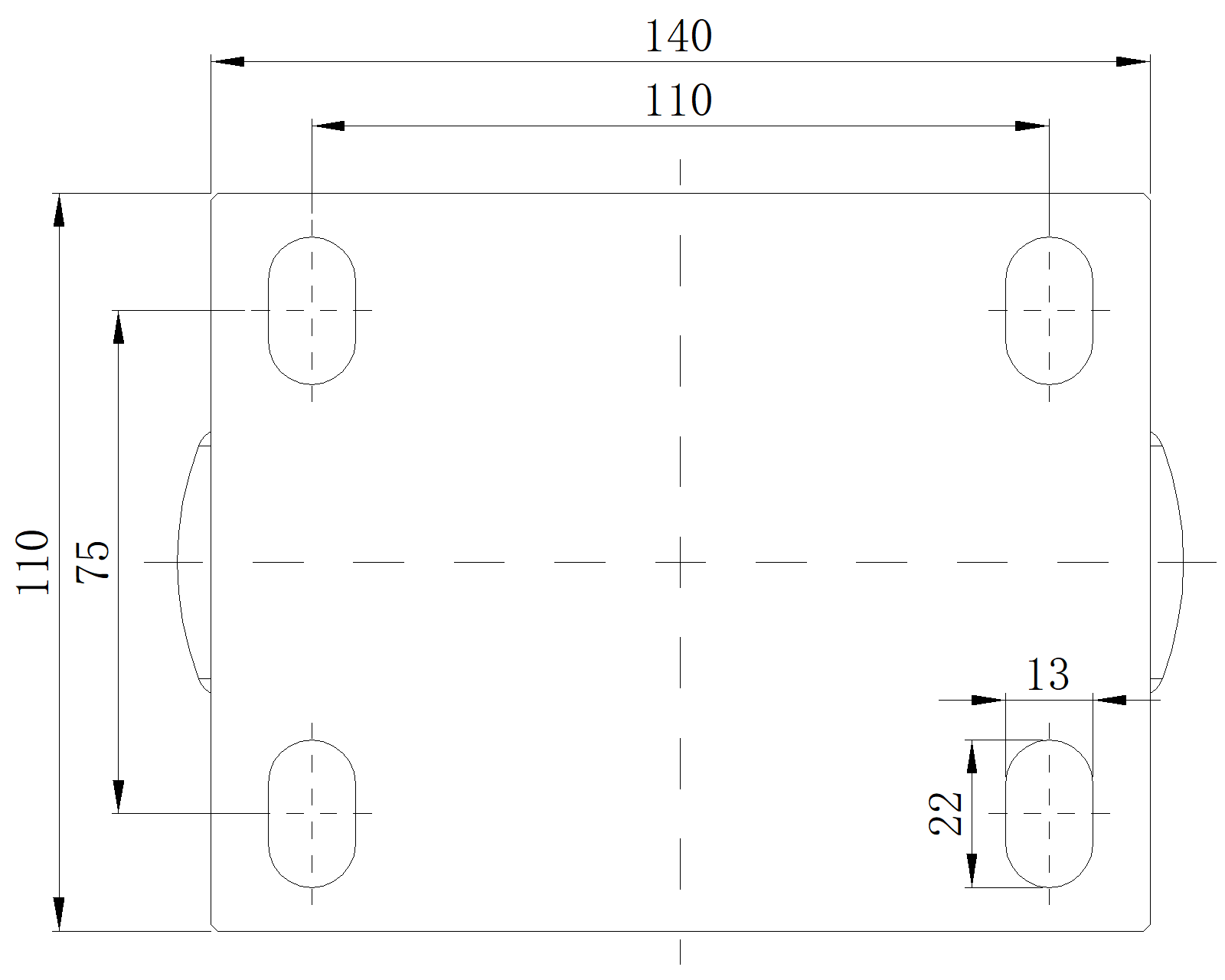

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 197mm7-7/8＂
Hardness Of Tread: 72±5° Shore D
Load Capacity (Dynamic): 350kgs772lbs
Load Capacity (Static): 525kgs1157lbs
Temperature: -12°C to +60°C4°F to +140°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 2.49kgs5.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 3

Floor Surface PreservationMax. 5 pointsScore: 3
