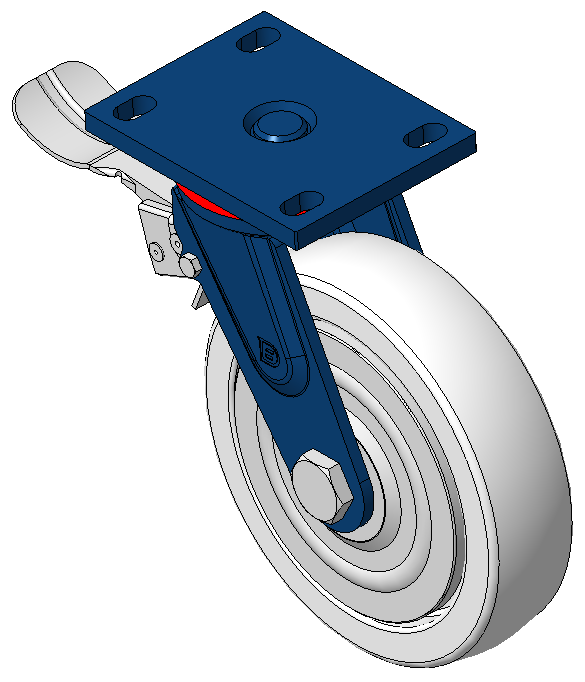

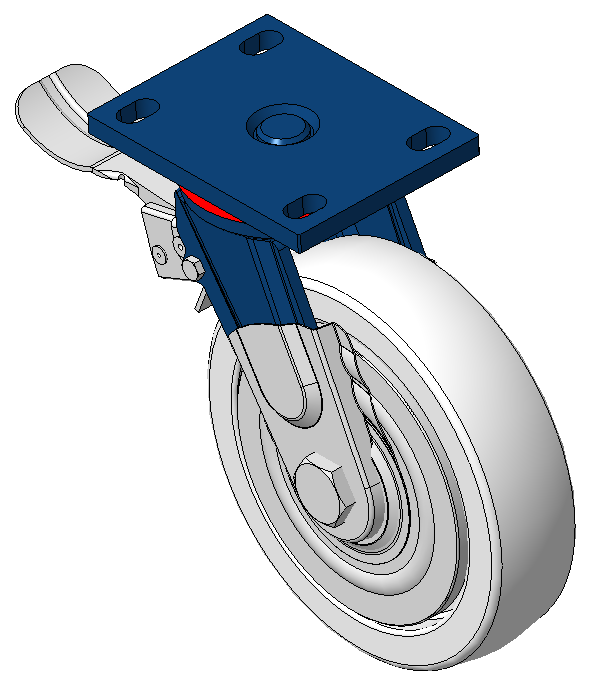

CPD Wheel Diameter x Wheel Width 200 x 50mm

Picture may differ from original product

1102 B Type Caster Series

CPD Wheel Diameter x Wheel Width 200 x 50mm

KS-11020800294021

Wheel Diameter200mm　8＂

Load Capacity (Dynamic)400kgs　882lbs

Overall Height248mm　9-15/16＂

Wheel BearingWheels With Ball Bearings

With rear brake，Caster with locking system，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 110x75
Polypropylene wheel core、Natural-colored tread
Wheel bearing—Precision ball bearing，With special anti-wrap wheel covers
Tread：PP polypropylene
Wheel core：PP polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

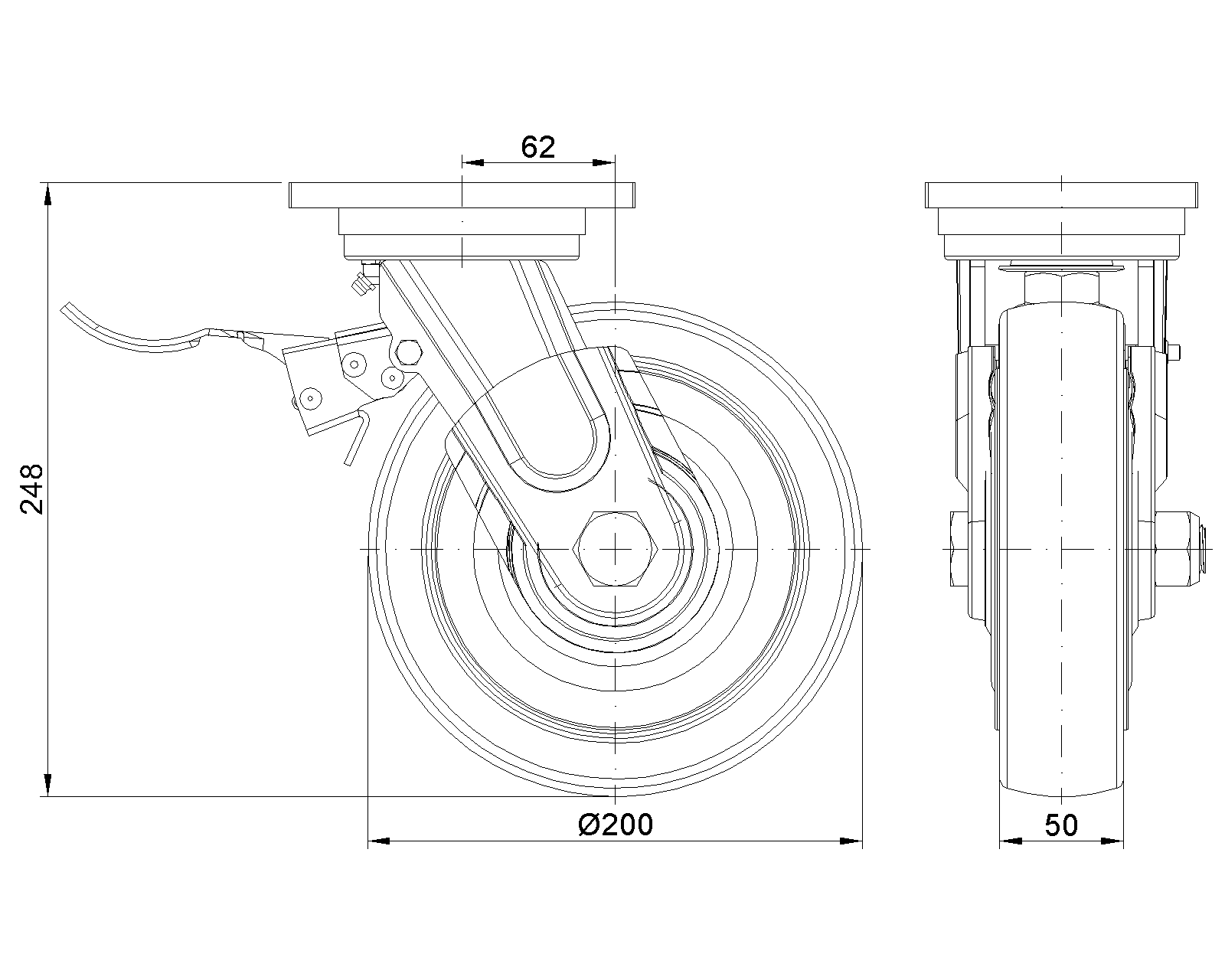

Wheel Diameter: 200mm8＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

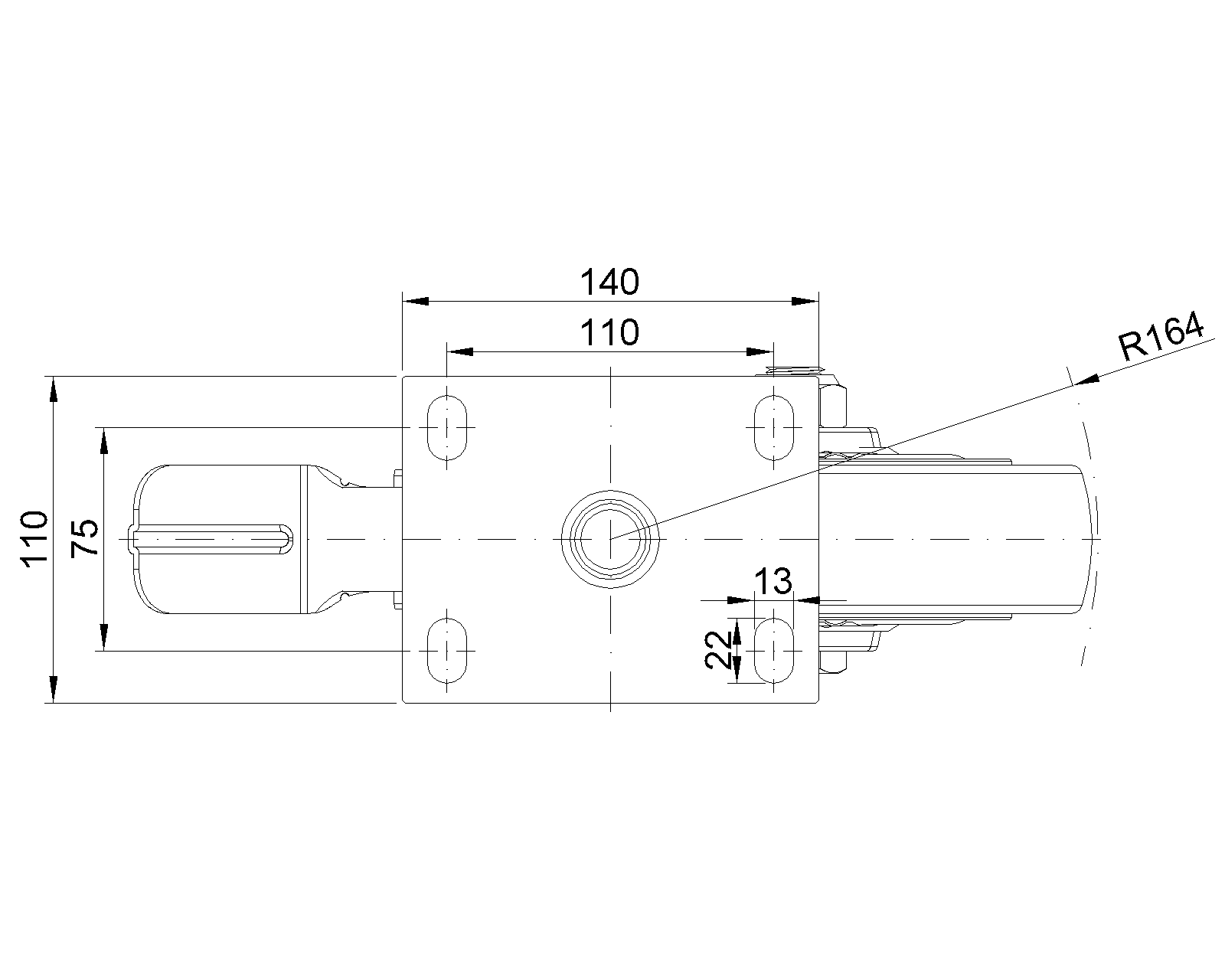

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 62mm2-1/2＂
Swivel Interference: 328mm328
Overall Height: 248mm9-15/16＂
Swivel Radius: 164mm6-1/2＂
Hardness Of Tread: 72±5° Shore D
Load Capacity (Dynamic): 400kgs882lbs
Load Capacity (Static): 600kgs1323lbs
Temperature: -12°C to +60°C4°F to +140°F
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 4.62kgs10.2lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 3

Floor Surface PreservationMax. 5 pointsScore: 3
