MRC (transparent) Wheel Diameter x Wheel Width 250 x 50mm

Picture may differ from original product

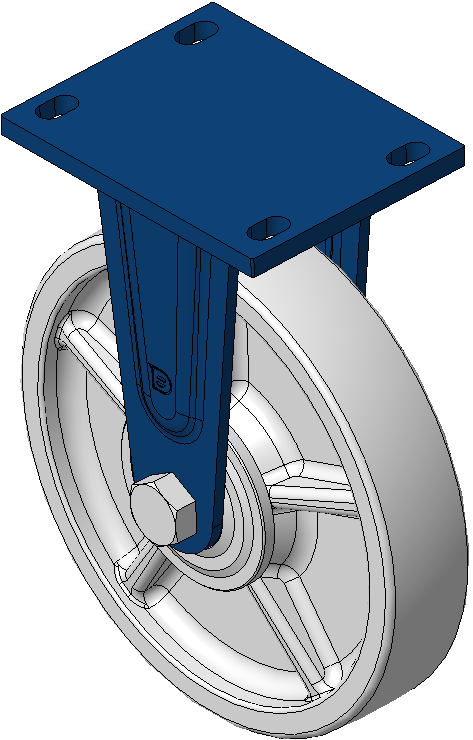

1102 B Type Caster Series

MRC (transparent) Wheel Diameter x Wheel Width 250 x 50mm

KS-11021000071031

Wheel Diameter250mm　10＂

Load Capacity (Dynamic)800kgs　1764lbs

Overall Height305mm　12-1/16＂

Wheel BearingWheels With Ball Bearings

Rigid Caster, Welded Caster Fork, blue paint finish
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural color Wheel Tread
Bearing—Ball Bearing
Wheel tread: Thermoplastic (PA6)
Wheel Center: Thermoplastic (PA6)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

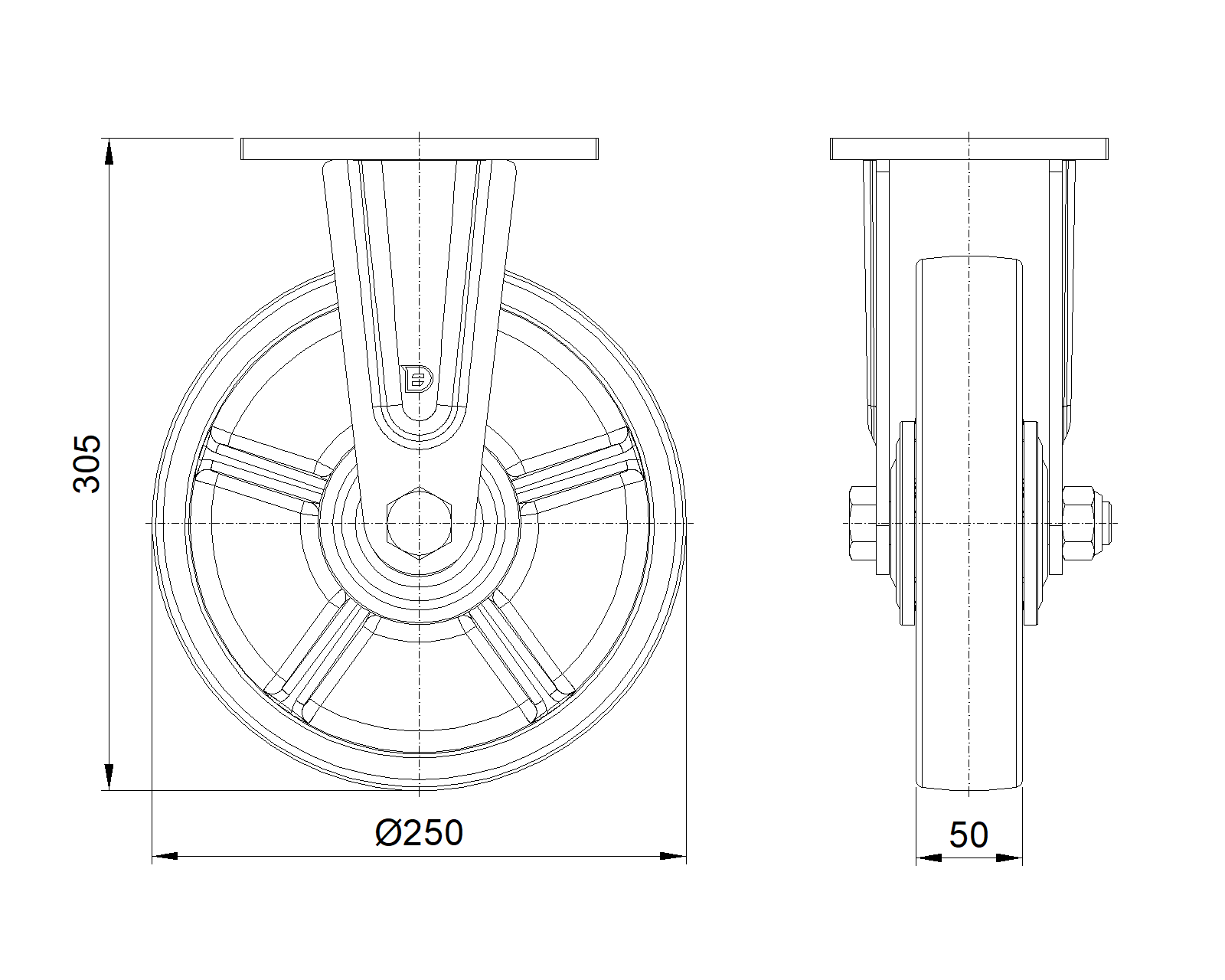

Wheel Diameter: 250mm10＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

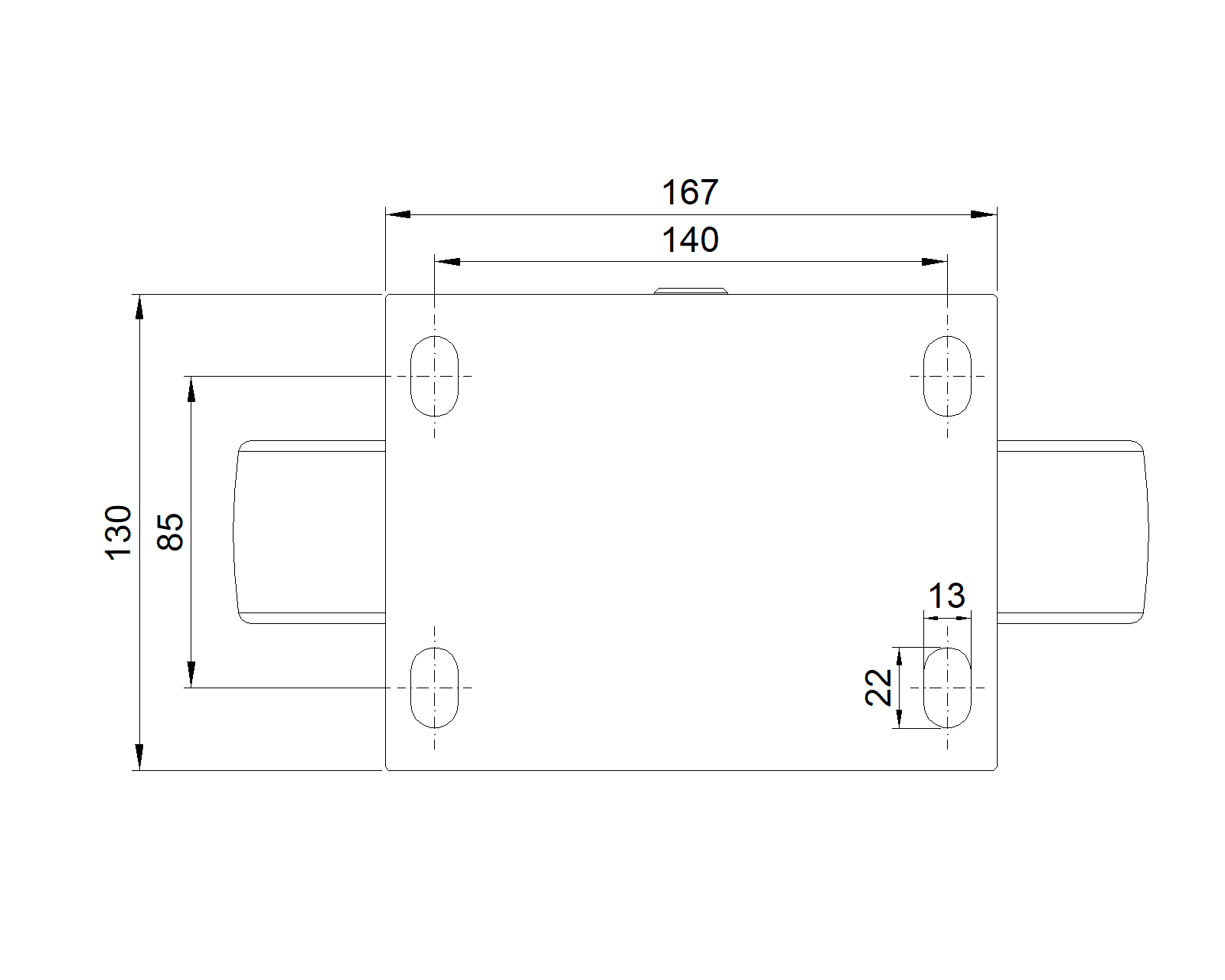

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 305mm12-1/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 800kgs1764lbs
Load Capacity (Static): 1200kgs2646lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 5.43kgs12.0lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
