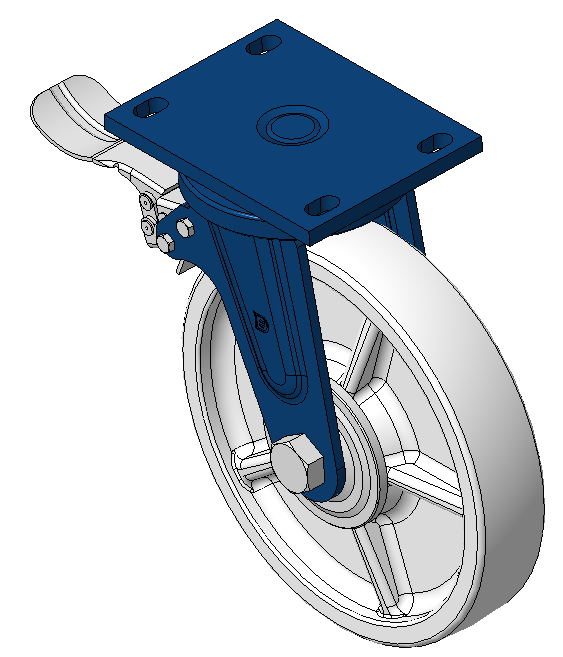

MRC Wheel (Transparent) Wheel Diameter×Wheel Width 250×50mm

Picture may differ from original product

1102 B Type Caster Series

MRC Wheel (Transparent) Wheel Diameter×Wheel Width 250×50mm

KS-11021000074031

Wheel Diameter250mm　10＂

Load Capacity (Dynamic)800kgs　1764lbs

Overall Height305mm　12-1/16＂

Wheel BearingWheels With Ball Bearings

With rear brake，Caster with locking system，Welded steel plate bracket
Blue-painted finish，Top plate mounting，Hole spacing 140x85
Thermoplastic wheel core、Natural-colored tread
Wheel bearing—Precision ball bearing
Tread：Thermoplastic（PA6）
Wheel core：Thermoplastic（PA6）

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

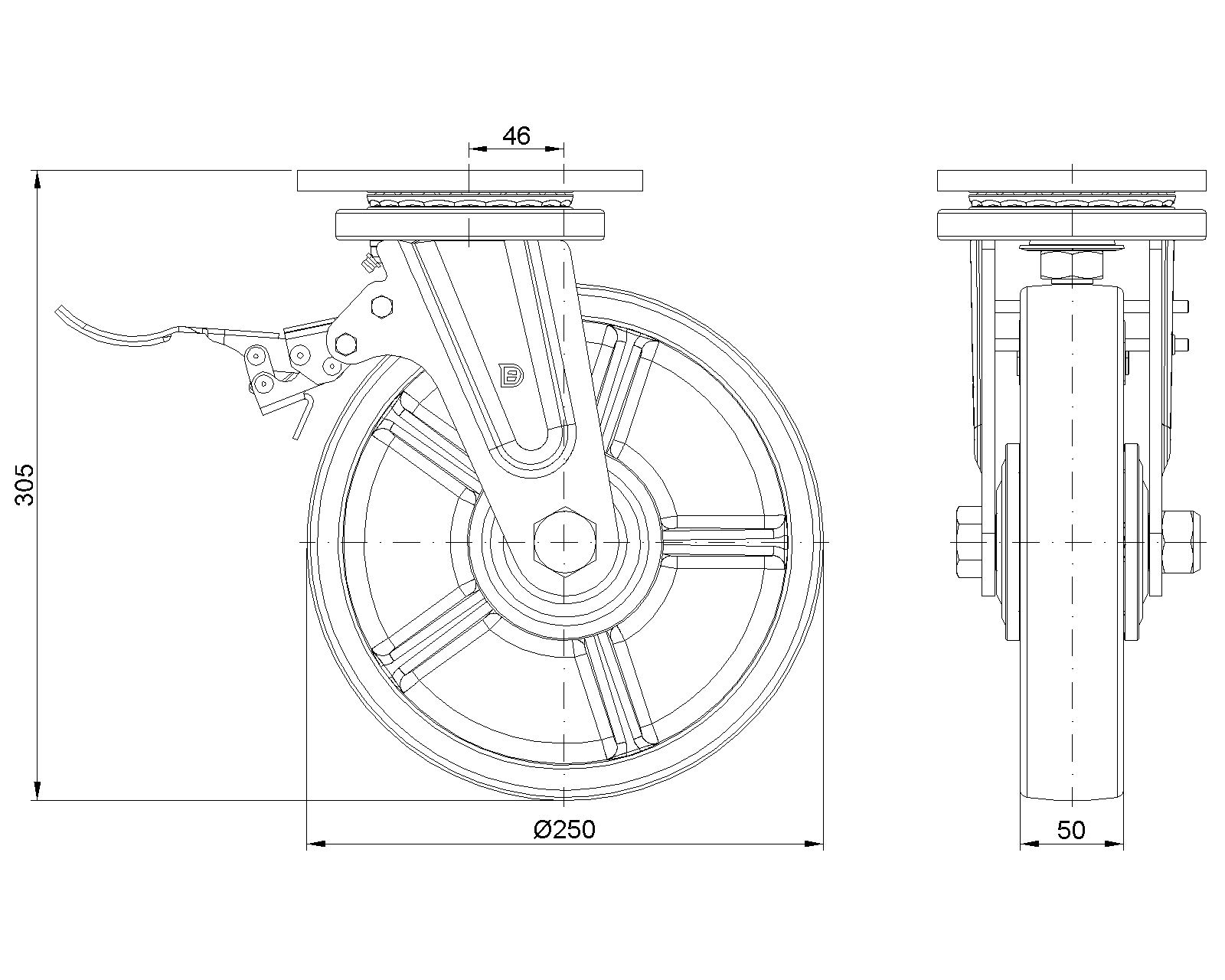

Wheel Diameter: 250mm10＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

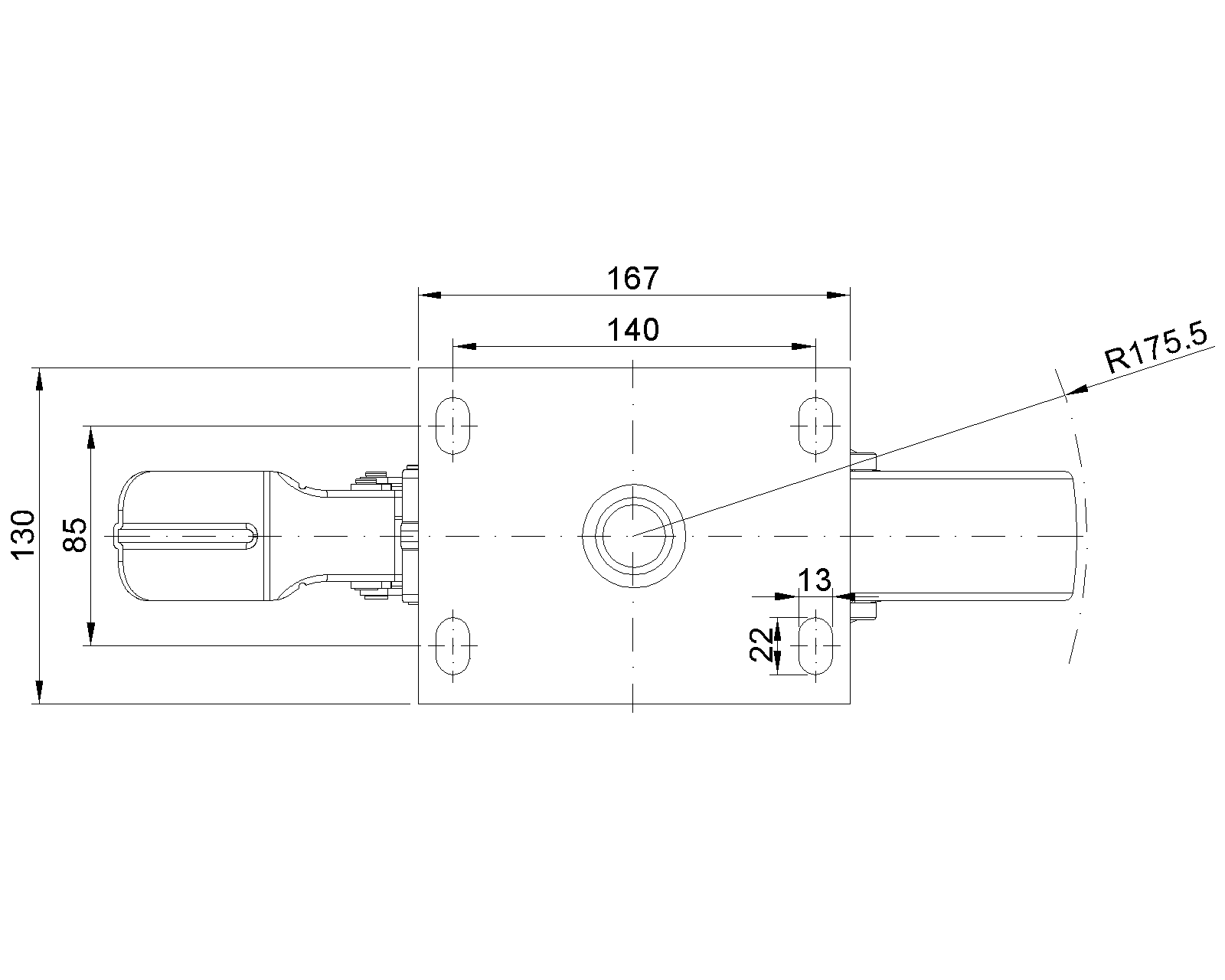

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 46mm1-7/8＂
Swivel Interference: 351mm14＂
Overall Height: 305mm12-1/16＂
Swivel Radius: 175.5mm7＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 800kgs1764lbs
Load Capacity (Static): 1200kgs2646lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Rear Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 7.48kgs16.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
