    Product Data Sheet
1102 B Type Caster Series
　　ZQPU (brown round) Wheel Diameter x Wheel Width 150 x 24 (51) mm
　　EAN
　　　　　 KS-11020600802021
　　　　　 　　　
Swivel Casters with Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown Bearing—feature Ball Bearing for reduced Rolling Resistance ZQPU Dual Wheels, Ergonomic design for easier starting and turning
　　Wheel tread: high quality polyurethane wheel tread
　　Wheel Center: iron core/cast iron

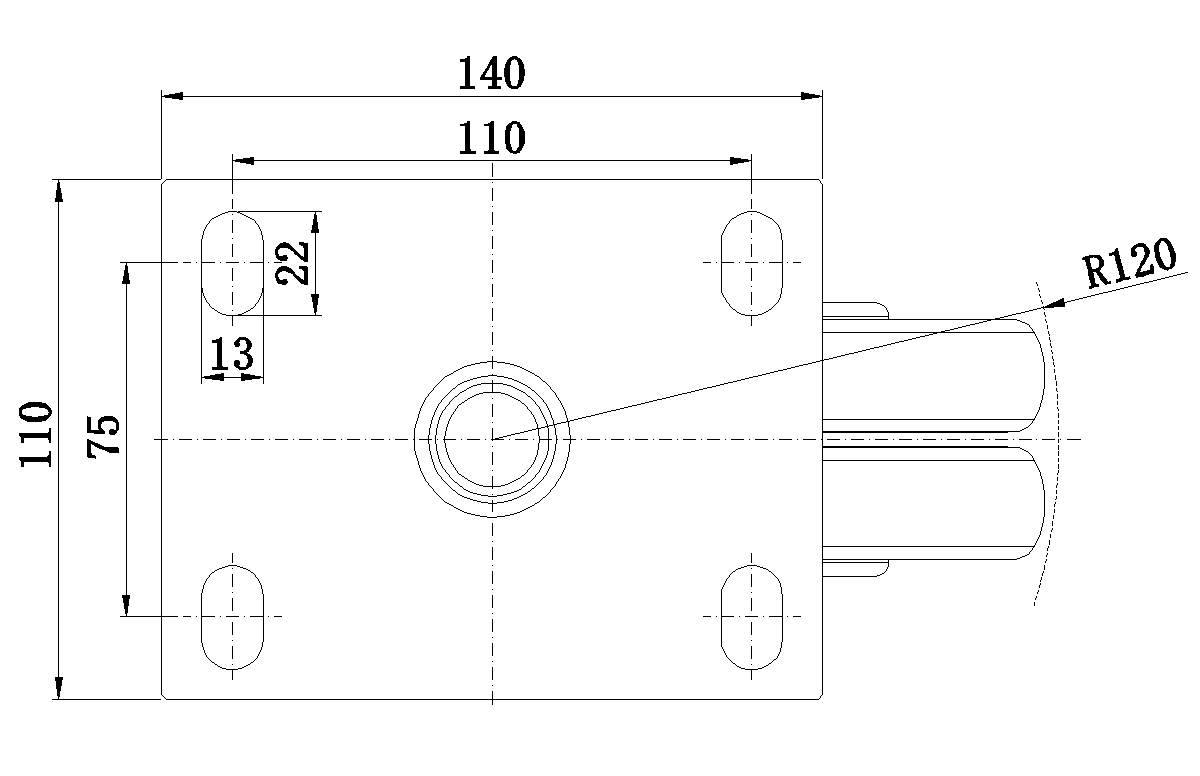

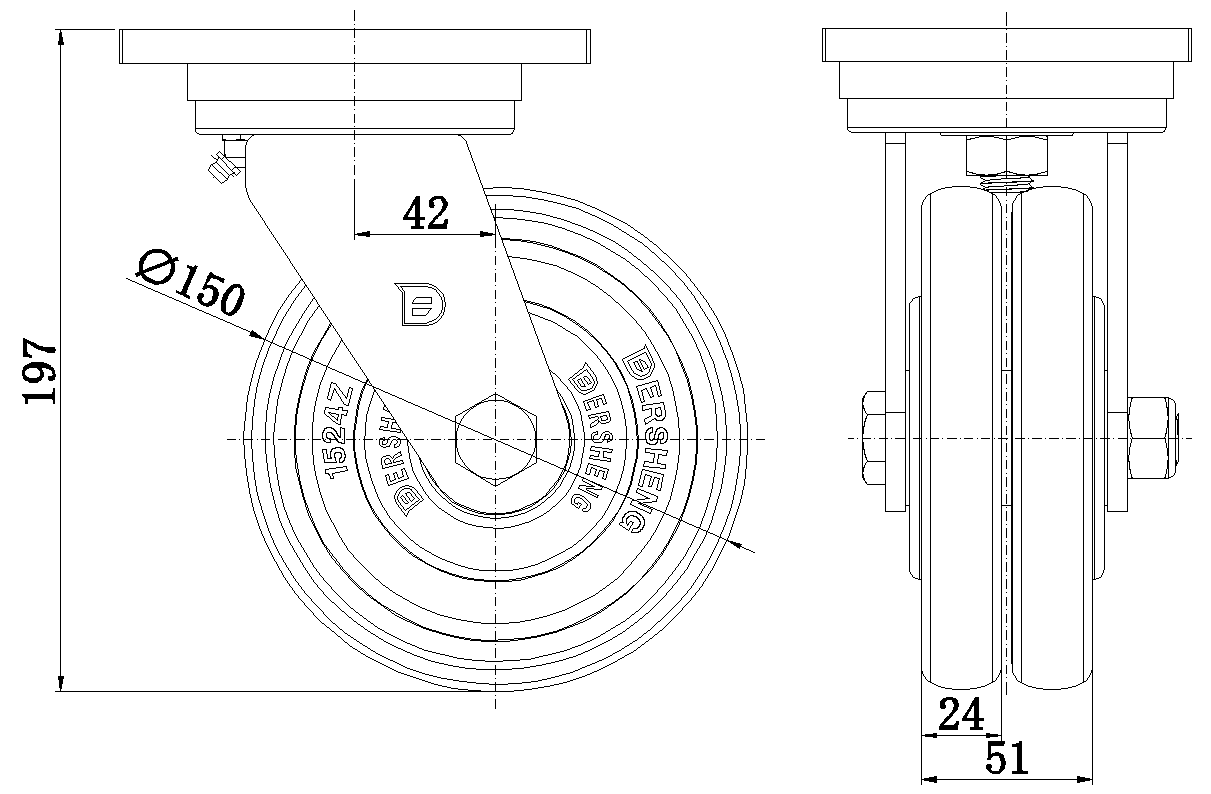

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 24mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 240mm　
　　Overall Height 197mm　
　　Swivel Radius 120mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 550kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 825kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.50kgs　
　　Standard ISO22883
　　
　　
