    Product Data Sheet
1102 B Type Caster Series
　　ZQPU (brown round) Wheel Diameter x Wheel Width 150 x 24 (51) mm
　　EAN
　　　　　 KS-11020600804071
　　　　　 　　　

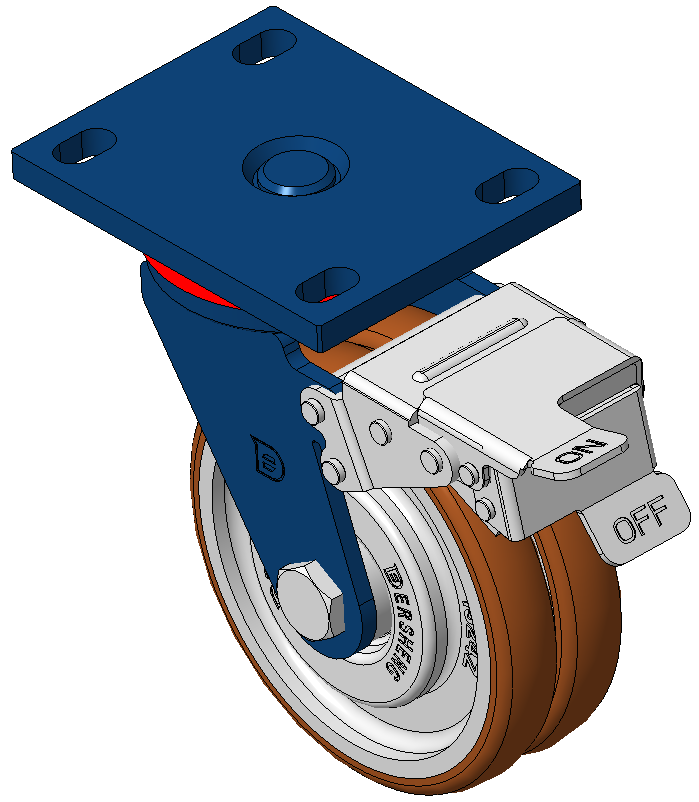

Casters with Front Brake locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron brown Bearing—feature Ball Bearing for reduced Rolling Resistance ZQPU dual wheels, Ergonomic design for easier starting and turning
　　Wheel tread: high-quality polyurethane wheel tread
　　Wheel Center: iron core/cast iron core

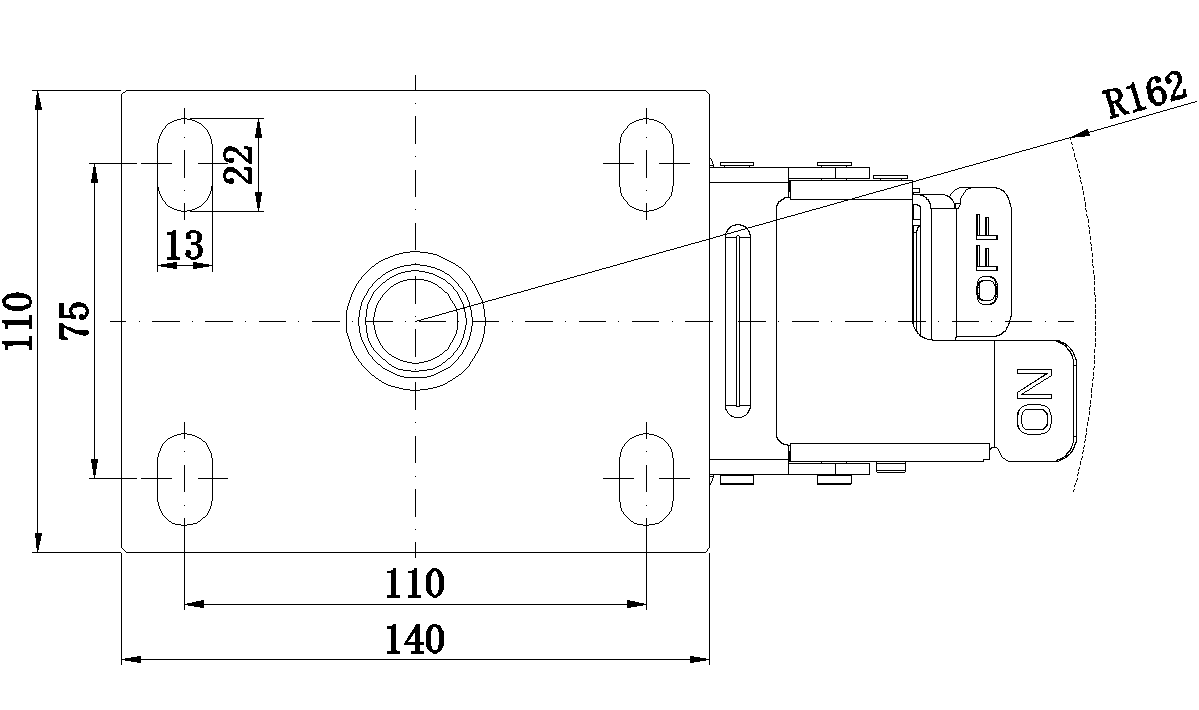

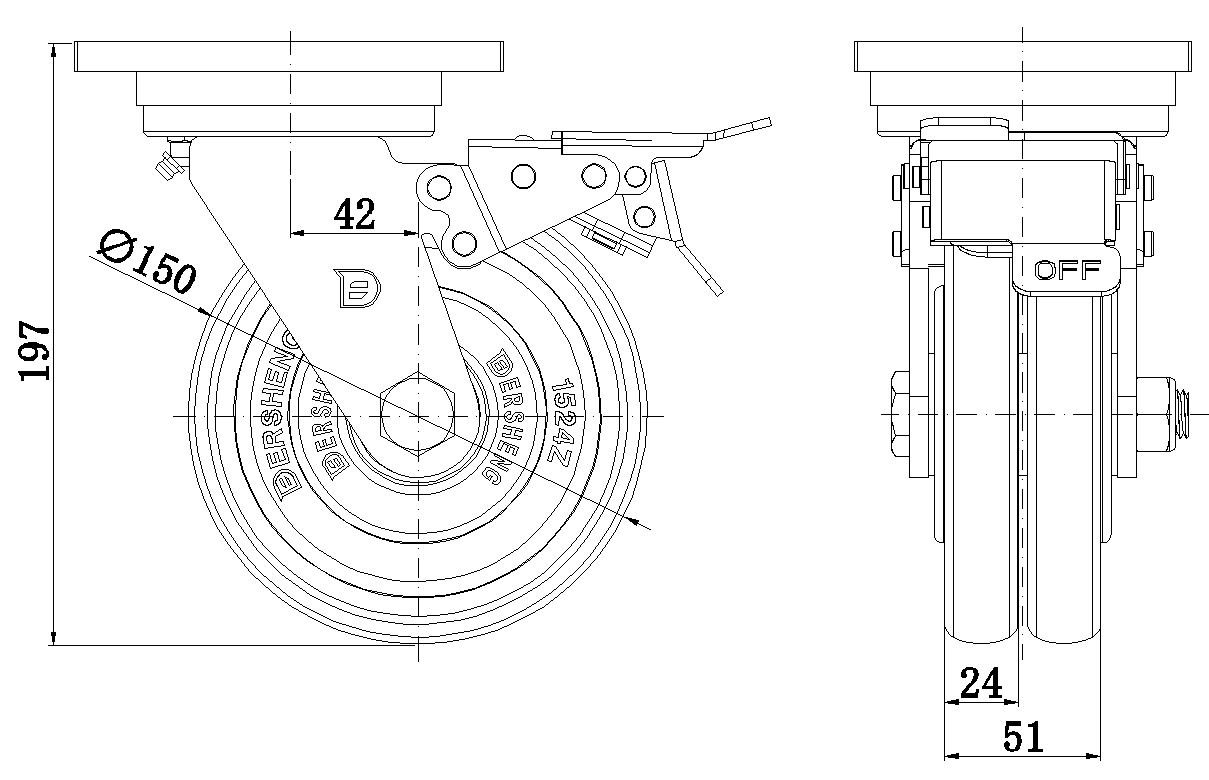

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 150mm　

　　Wheel Width 24mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 42mm　
　　Swivel Interference 324mm　
　　Overall Height 197mm　
　　Swivel Radius 162mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 550kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 825kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Front Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.98kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 150 x 24 (51) mm
KS-11020600802021
150 mm 550 Kgs 197 mm

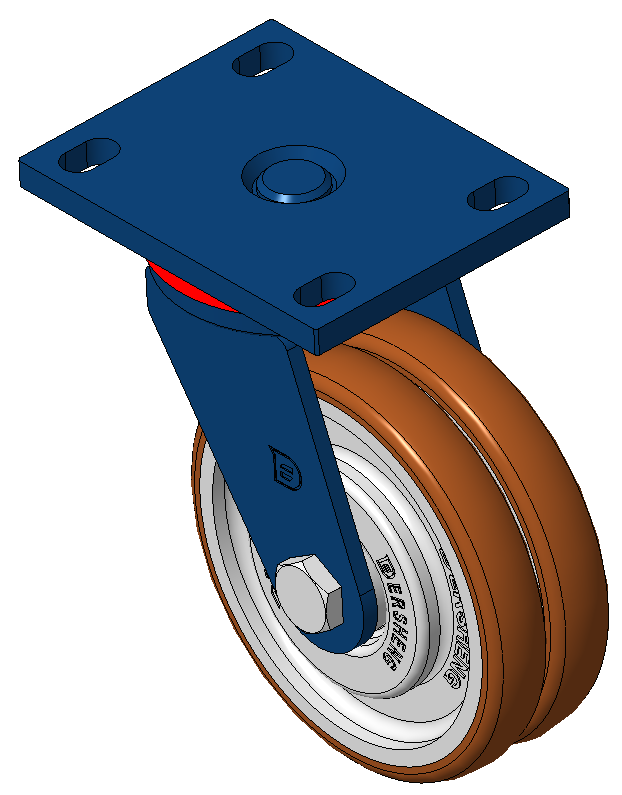

Swivel Casters with Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown Bearing—feature Ball Bearing for reduced Rolling Resistance ZQPU Dual Wheels, Ergonomic design for easier starting and turning
1102 B Type Caster Series
ZQPU (brown round) Wheel Diameter x Wheel Width 150 x 24 (51) mm
KS-11020600801021
150 mm 550 Kgs 197 mm

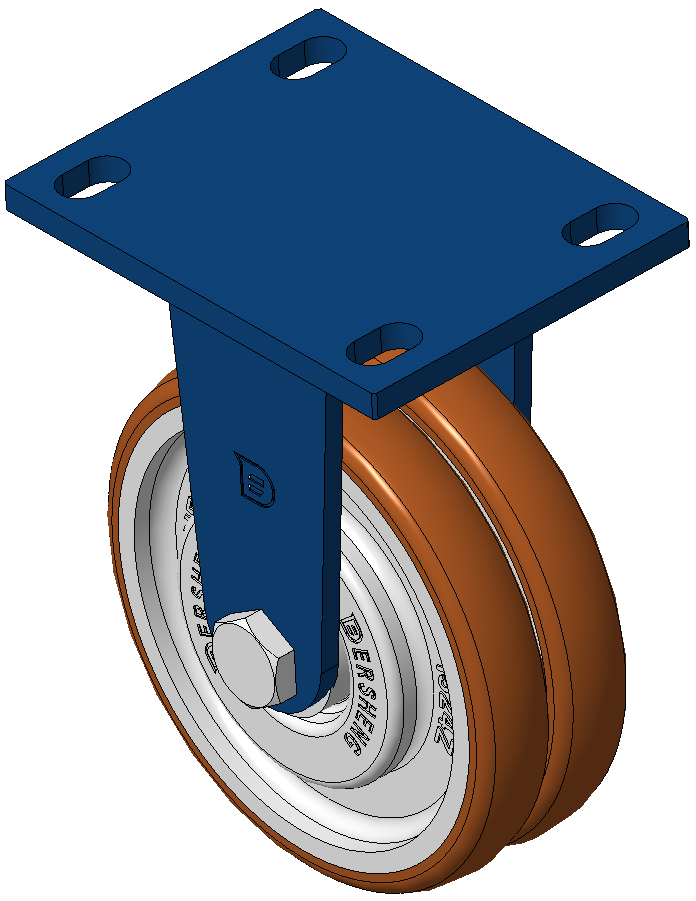

Rigid Caster with Welded Caster Fork
