QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm

Picture may differ from original product

1102 B Type Caster Series

QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm

KS-11021000532011

Wheel Diameter254mm　10-1/16＂

Load Capacity (Dynamic)900kgs　1984lbs

Overall Height307mm　12-3/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster with Welded Caster Fork, blue painted finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown.
Bearing—Ball Bearing.
Wheel tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

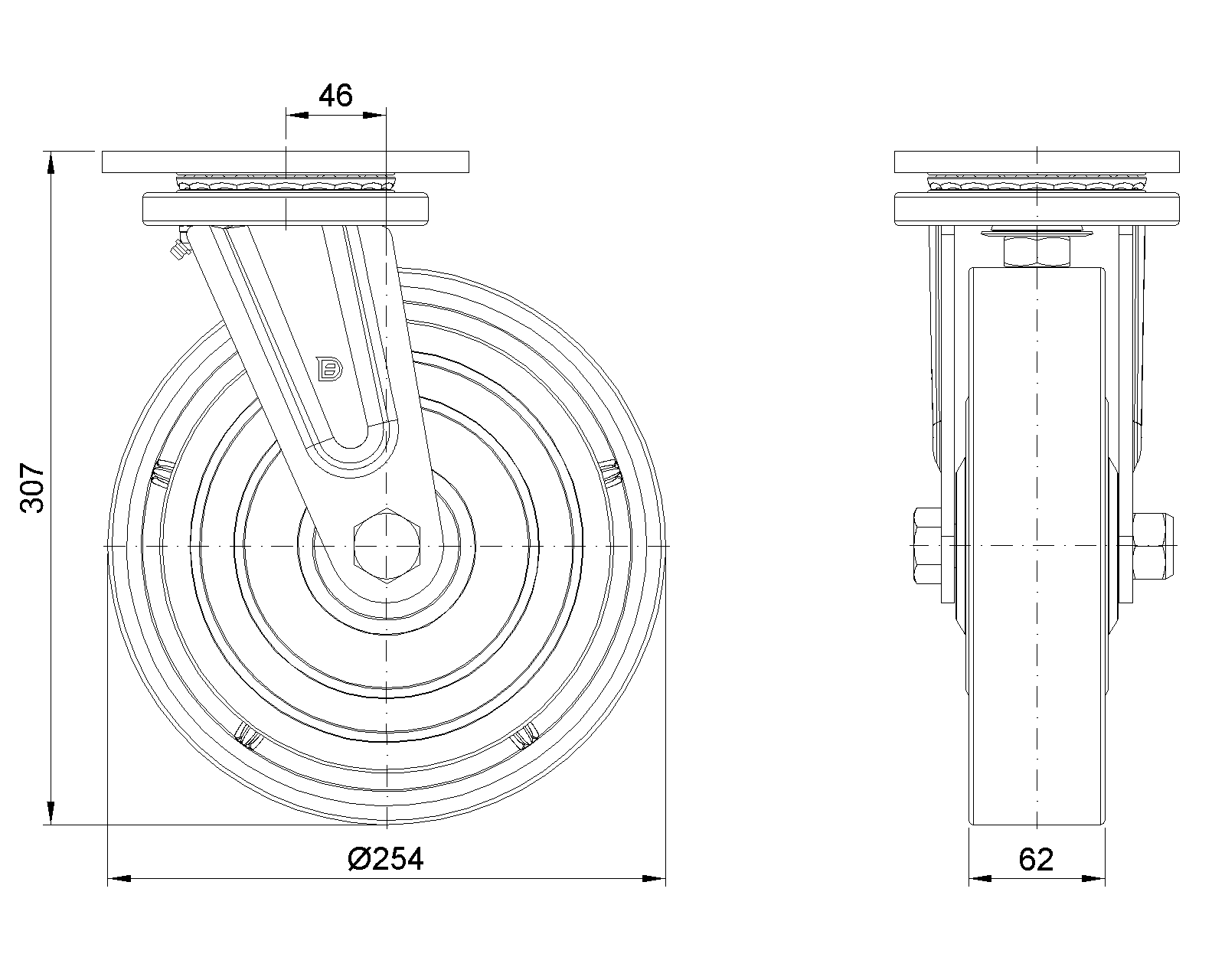

Wheel Diameter: 254mm10-1/16＂
Wheel Width: 62mm2-1/2＂
Wheel Bearing: Wheels With Ball Bearings

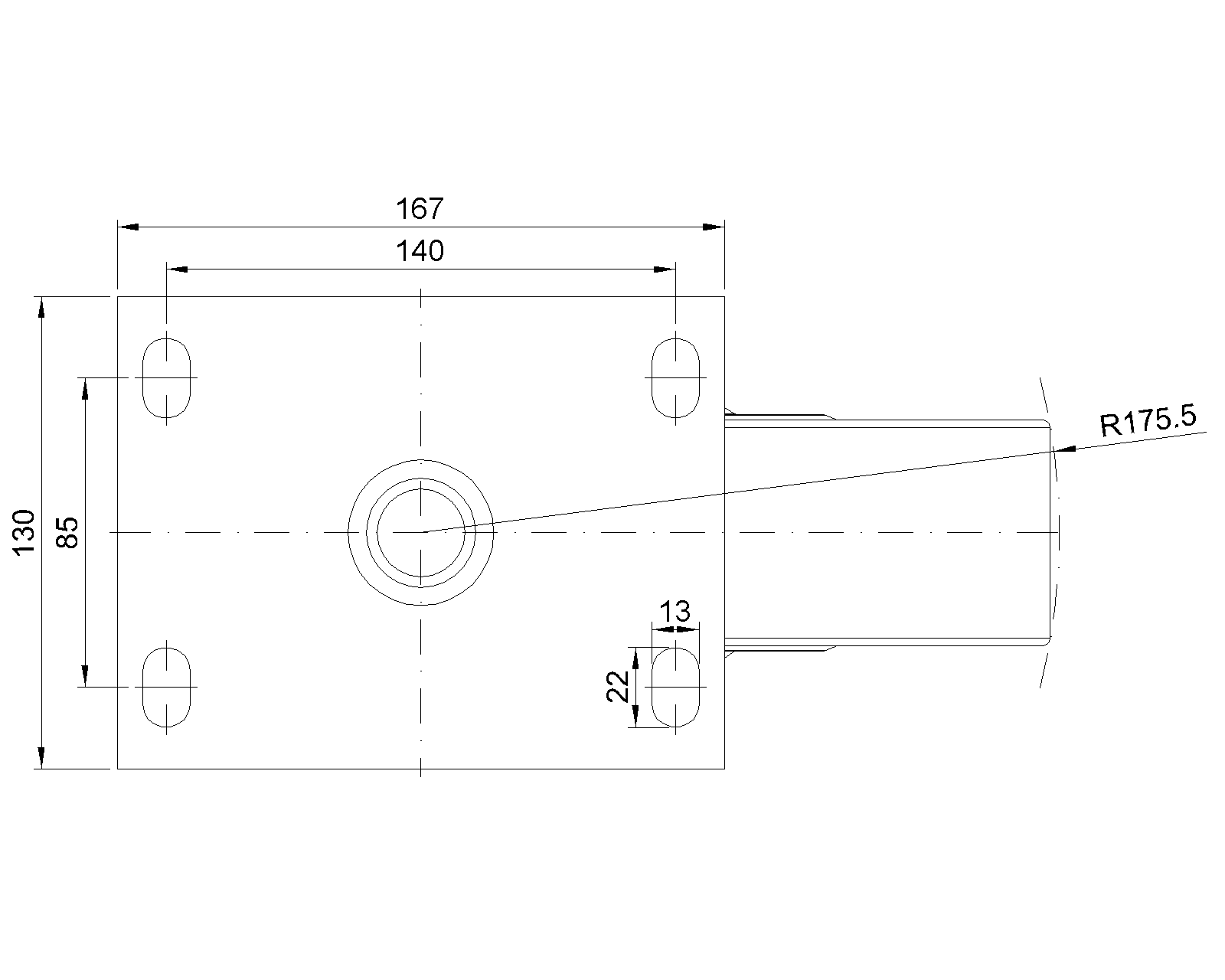

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 46mm1-7/8＂
Swivel Interference: 351mm14＂
Overall Height: 307mm12-3/16＂
Swivel Radius: 175.5mm7＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 900kgs1984lbs
Load Capacity (Static): 1350kgs2976lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 11.10kgs24.5lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
