    Product Data Sheet
1102 B Type Caster Series
　　QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm
　　EAN
　　　　　 KS-11021000531031
　　　　　 　　　

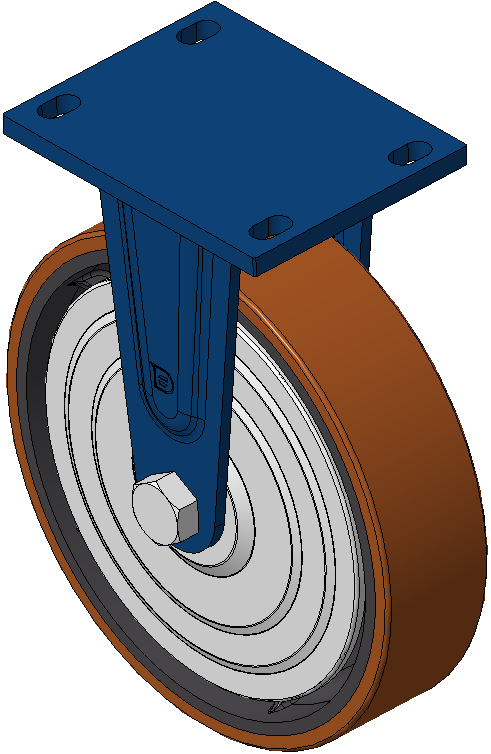

Rigid Caster with Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown Bearings – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

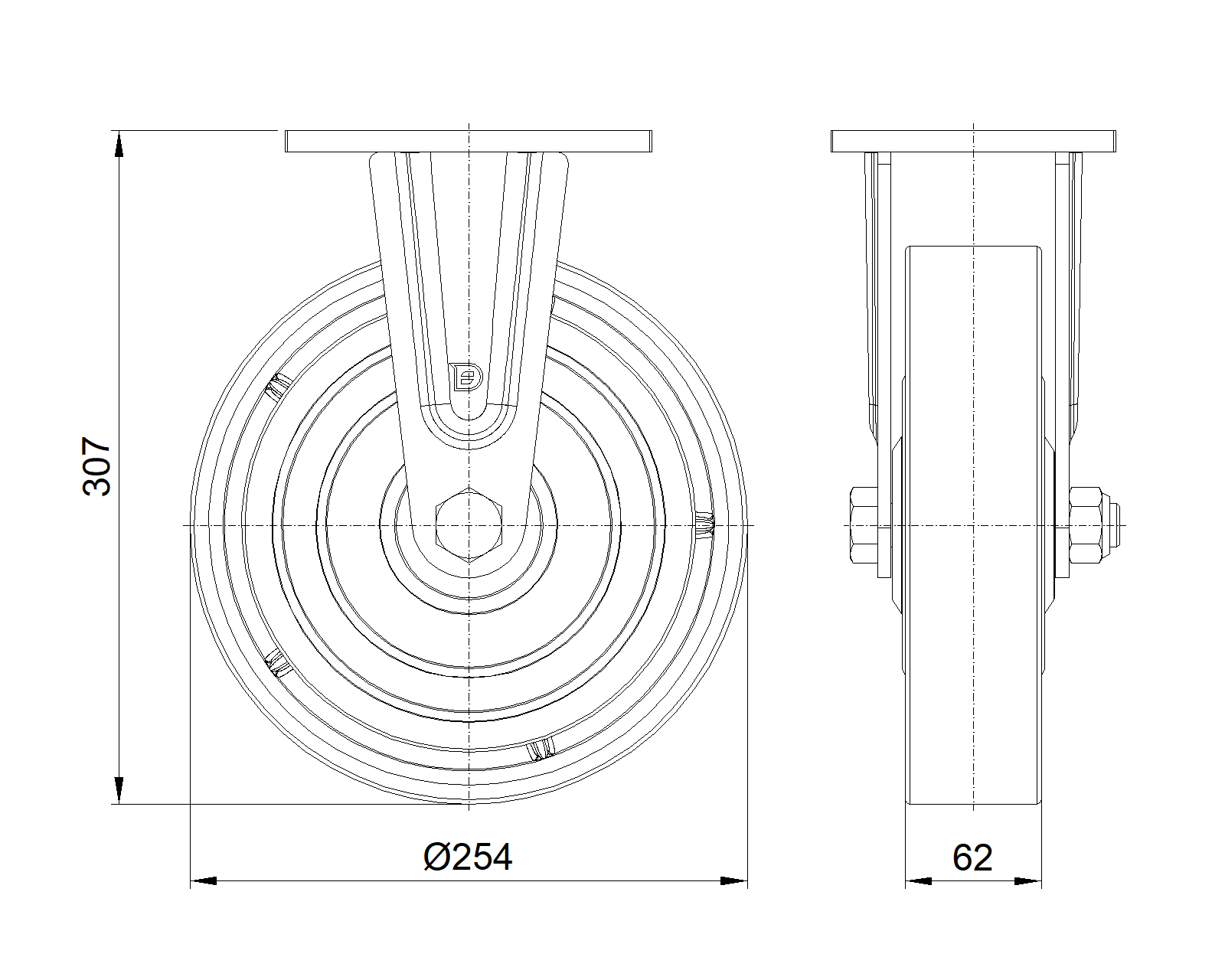

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 254mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings

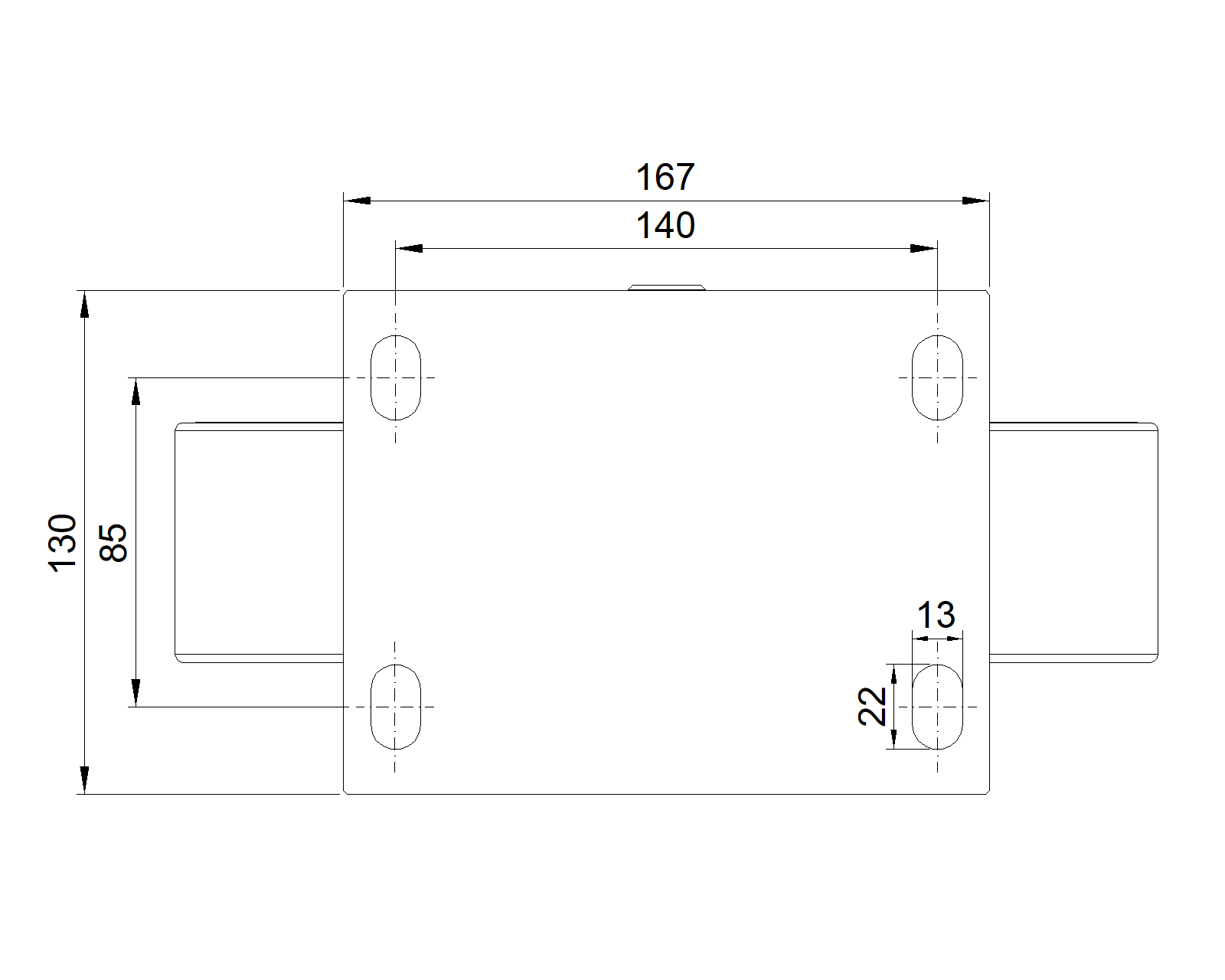

　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 307mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 900kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1350kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 9.55kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000534011
254 mm 900 Kgs 307 mm

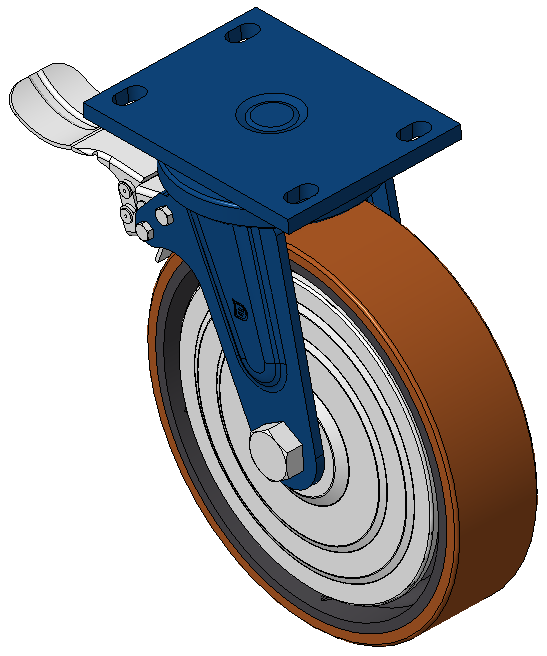

Casters with rear brake and With locking system, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron brown Bearings—Ball Bearings
1102 B Type Caster Series
QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm
KS-11021000532011
254 mm 900 Kgs 307 mm

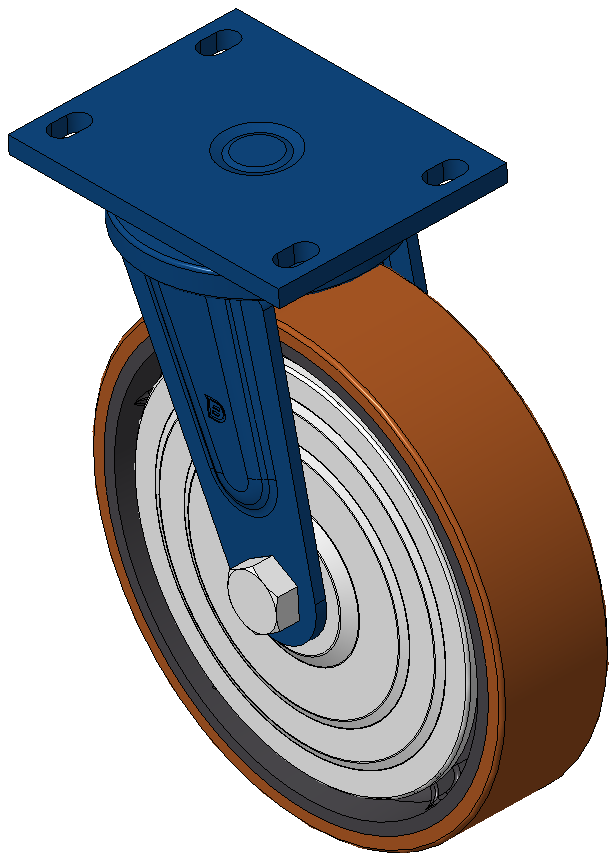

Swivel Caster with Welded Caster Fork, blue painted finish. Mounting Type - Top Plate, 140x85 Bolt Hole Spacing. Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown. Bearing—Ball Bearing.
