VQPU (brown round) Wheel Diameter x Wheel Width 250 x 62mm

Picture may differ from original product

1102 B Type Caster Series

VQPU (brown round) Wheel Diameter x Wheel Width 250 x 62mm

KS-11021000542031

Wheel Diameter250mm　10-1/16＂

Load Capacity (Dynamic)1200kgs　2646lbs

Overall Height305mm　12-1/16＂

Wheel BearingWheels With Ball Bearings

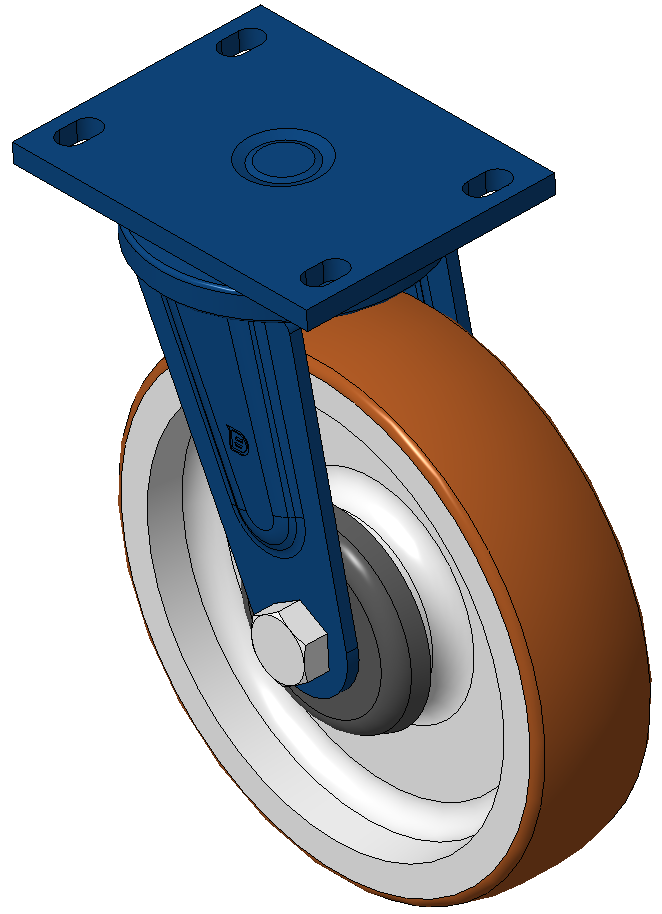

Swivel Caster with Welded Caster Fork, blue painted finish.
Mounting Type - Top Plate, 140x85 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron brown.
Bearing—Ball Bearing.
Wheel tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

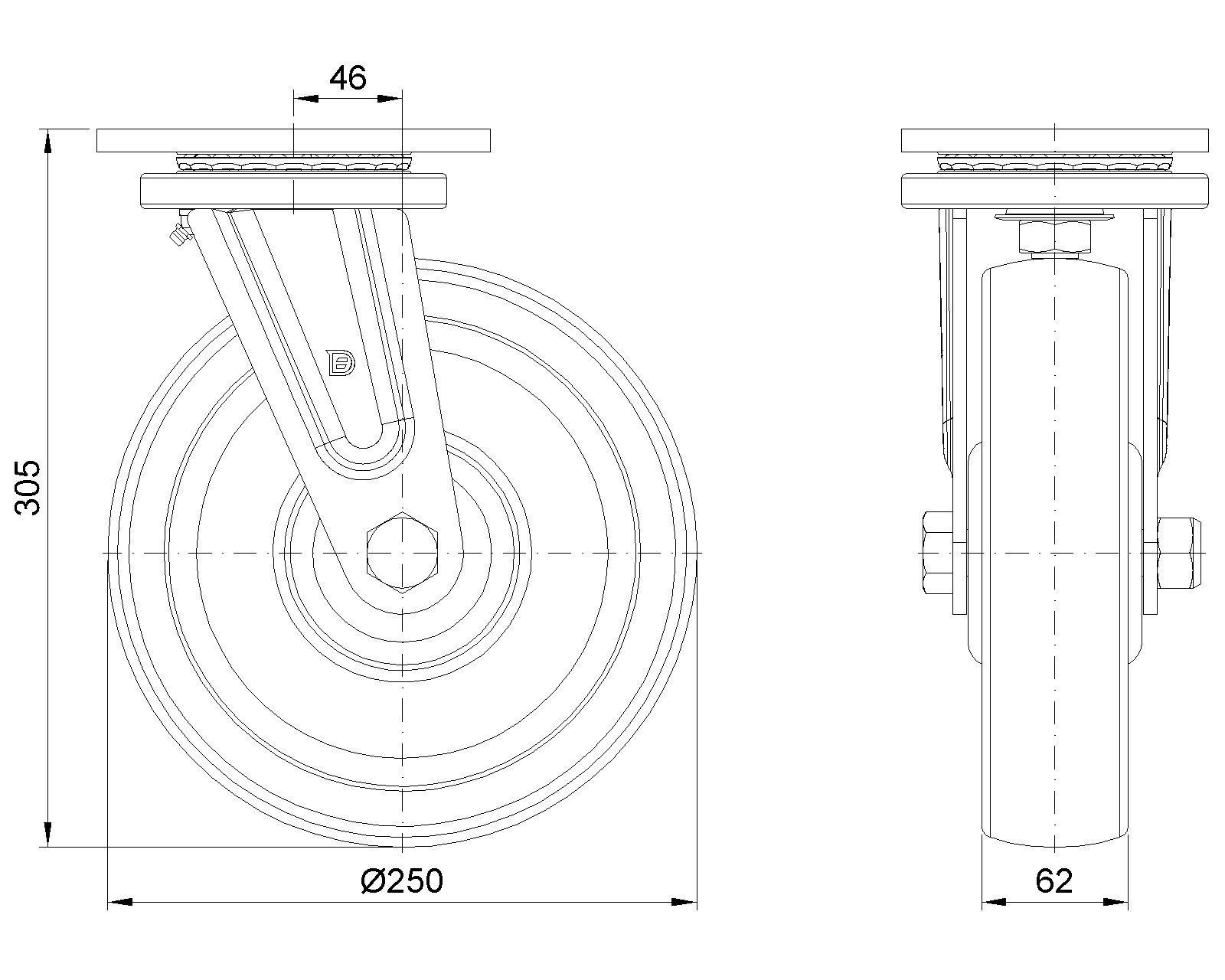

Wheel Diameter: 250mm10-1/16＂
Wheel Width: 62mm2-1/2＂
Wheel Bearing: Wheels With Ball Bearings

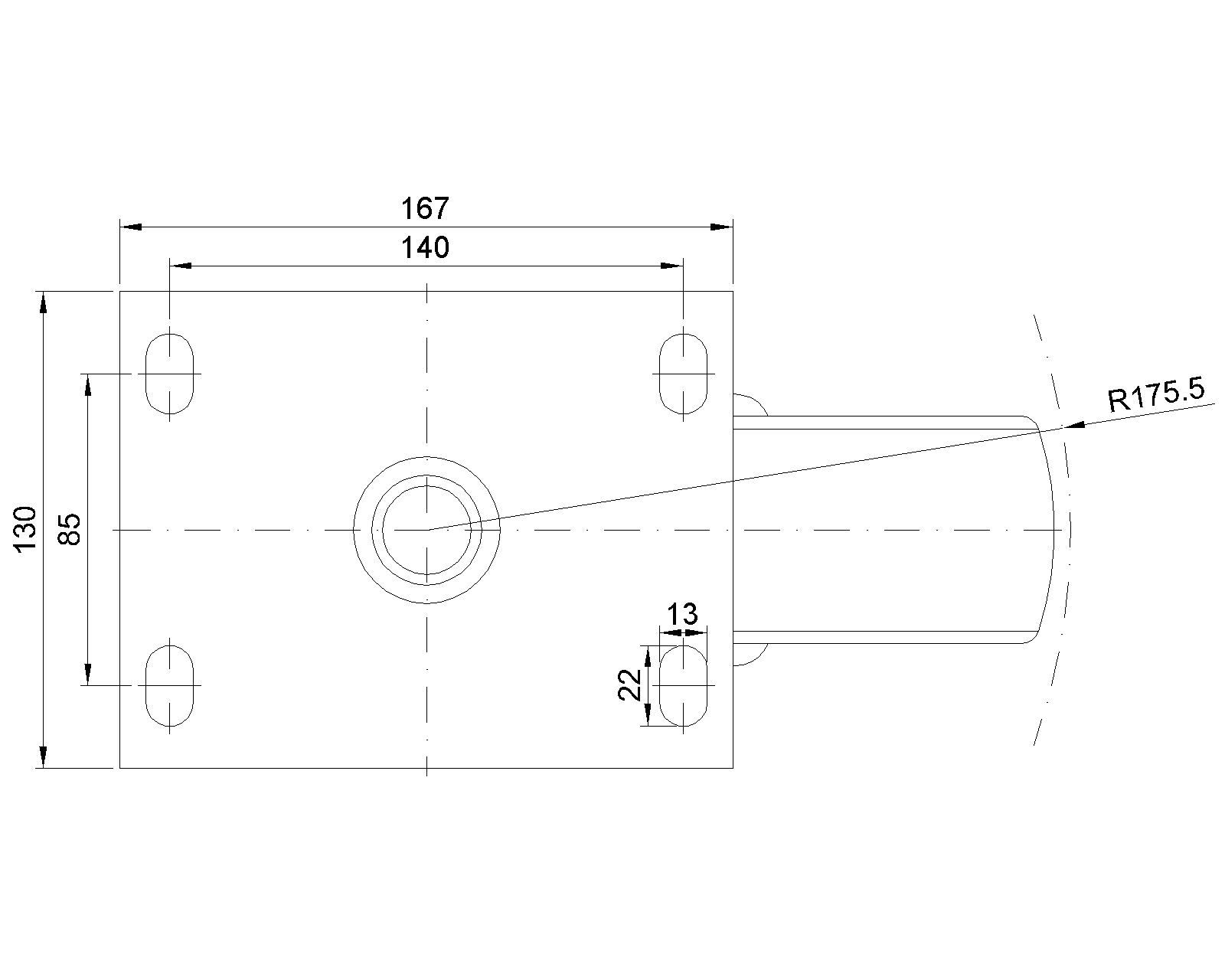

Plate Size: 167 x 130mm6-5/8＂ x 5-3/16＂
Bolt Hole Spacing: 140x85mm5-1/2＂x3-3/8＂
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 46mm1-7/8＂
Swivel Interference: 351mm14＂
Overall Height: 305mm12-1/16＂
Swivel Radius: 175.5mm7＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 1200kgs2646lbs
Load Capacity (Static): 1800kgs3968lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 12.70kgs28.0lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
