PU wheel (red arc) wheel diameter x wheel width 200x 50mm

Picture may differ from original product

1102 B Type Caster Series

PU wheel (red arc) wheel diameter x wheel width 200x 50mm

KS-11020800332111

Wheel Diameter200mm　8＂

Load Capacity (Dynamic)450kgs　992lbs

Overall Height248mm　9-15/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster with Welded Caster Fork, blue painted finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red.
Bearing—Ball Bearing.
Wheel tread: Made of high-quality polyurethane
Wheel Center: iron core/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

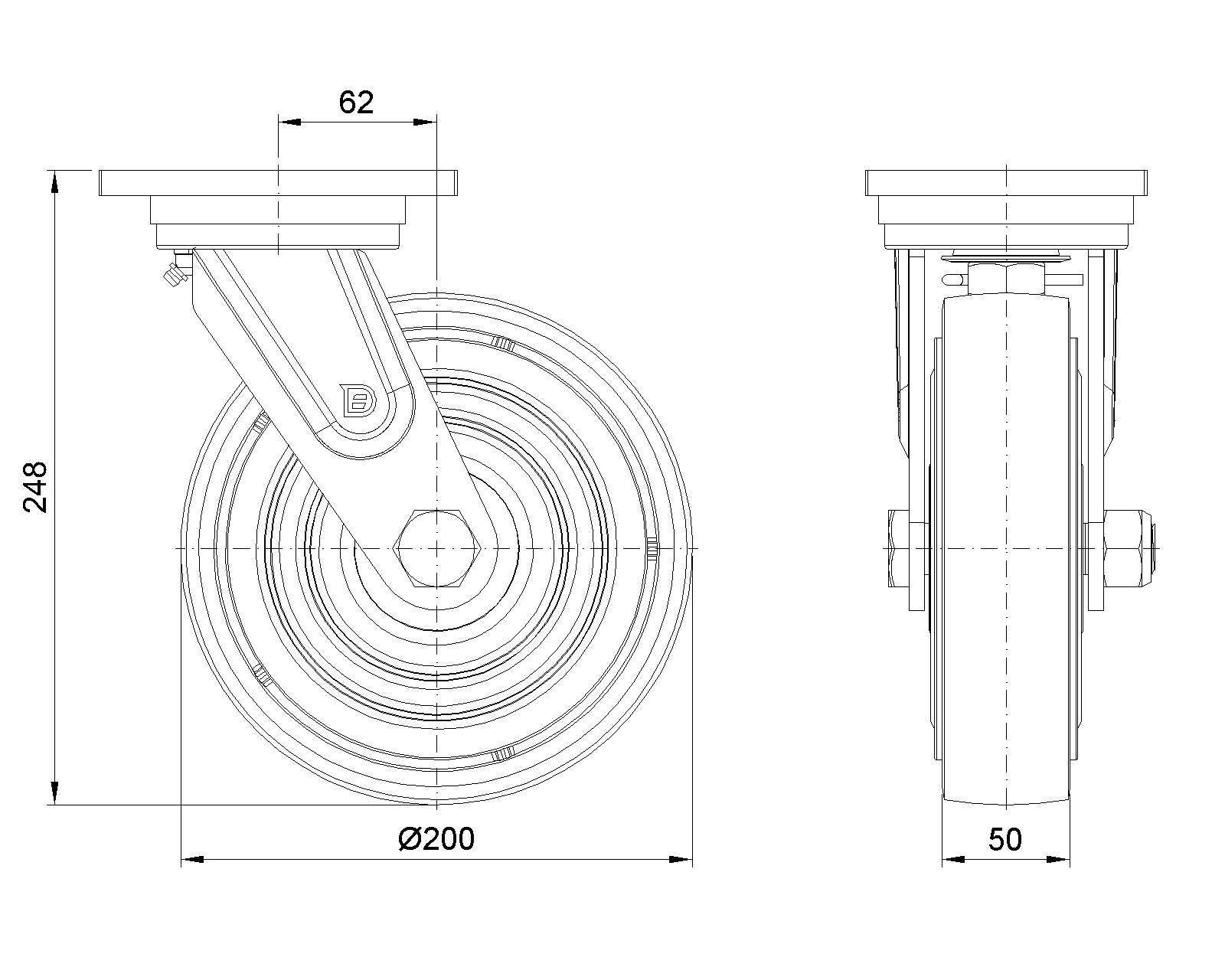

Wheel Diameter: 200mm8＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

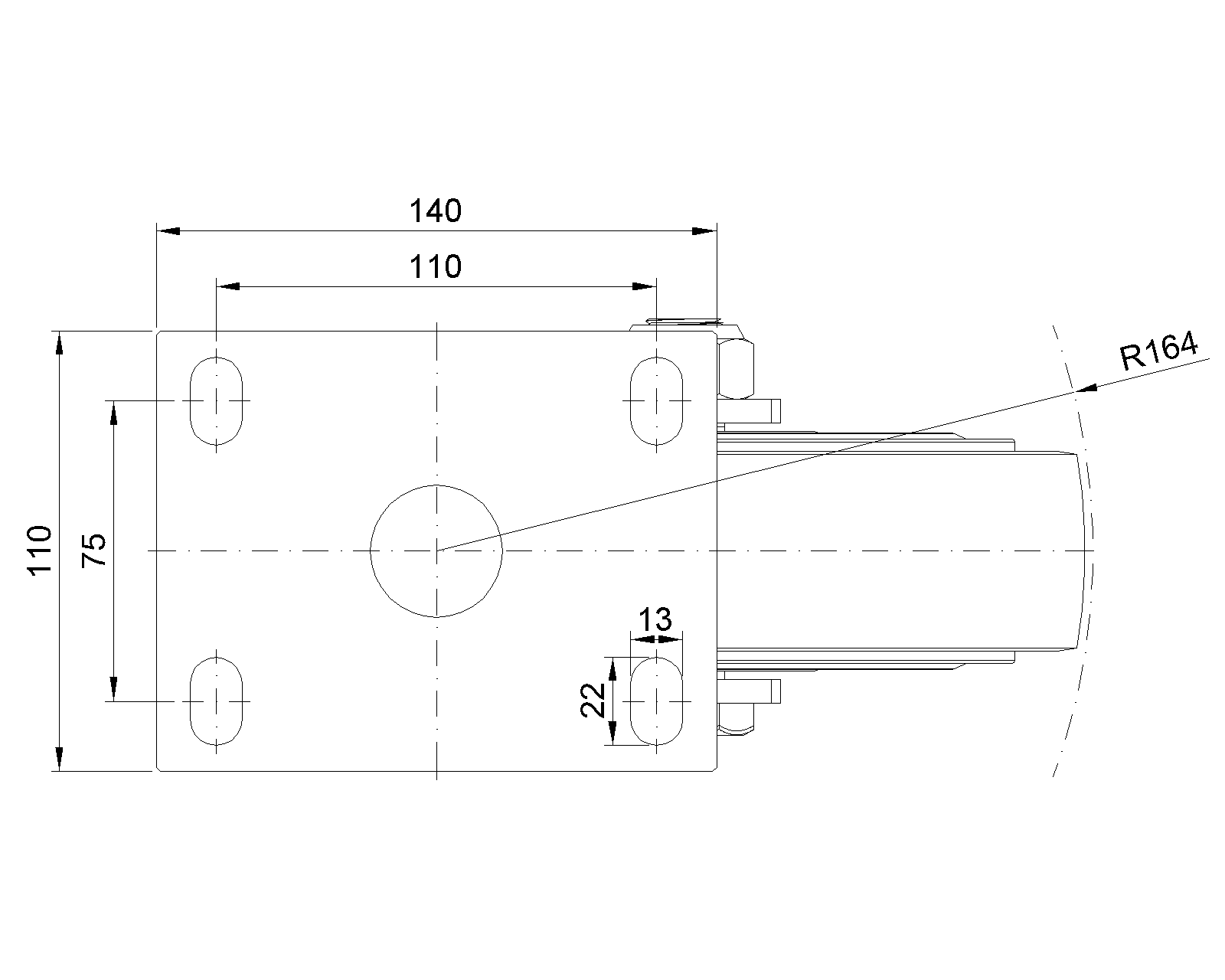

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Offset: 62mm2-1/2＂
Swivel Interference: 328mm13＂
Overall Height: 248mm9-15/16＂
Swivel Radius: 164mm6-1/2＂
Hardness Of Tread: 93±5° Shore A
Load Capacity (Dynamic): 450kgs992lbs
Load Capacity (Static): 675kgs1488lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 6.50kgs14.3lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 3

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 4
