    Product Data Sheet
1102 B Type Caster Series
　　PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11020800332111A
　　　　　 　　　

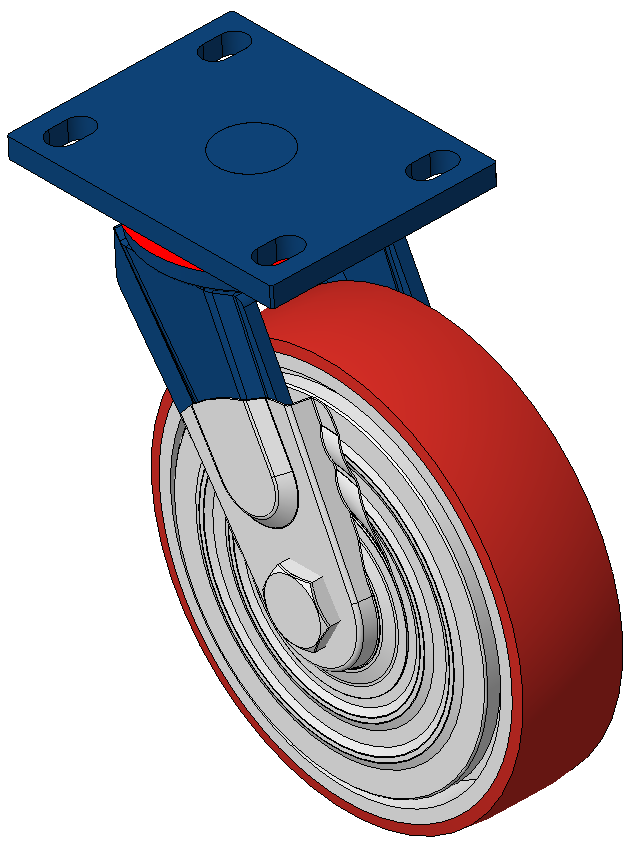

Swivel Caster with Welded Caster Fork, blue paint finish. Mounting Type - Top Plate, 110x75 Bolt Hole Spacing. Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red. Bearing—Ball Bearing with special anti-wrap caps.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

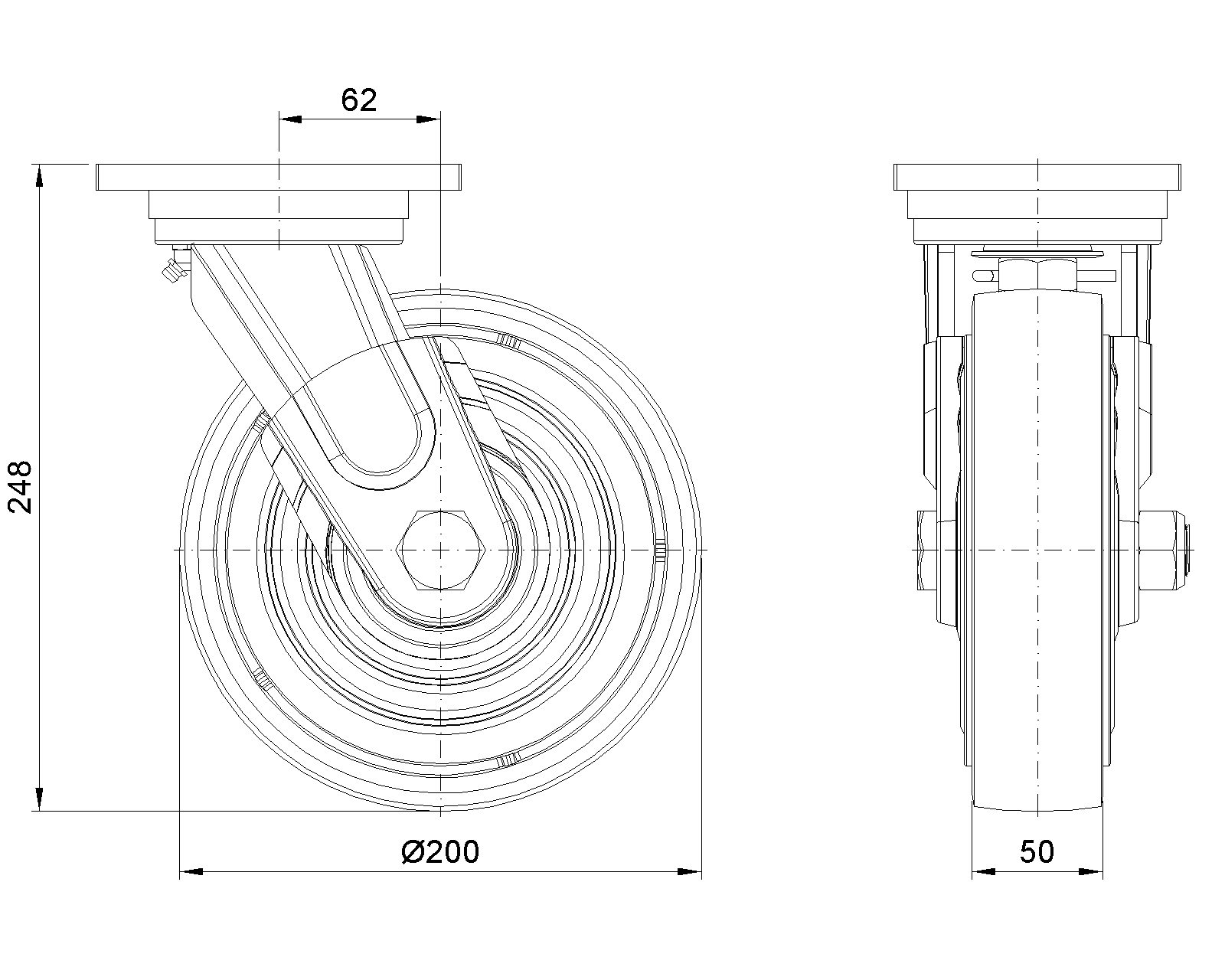

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

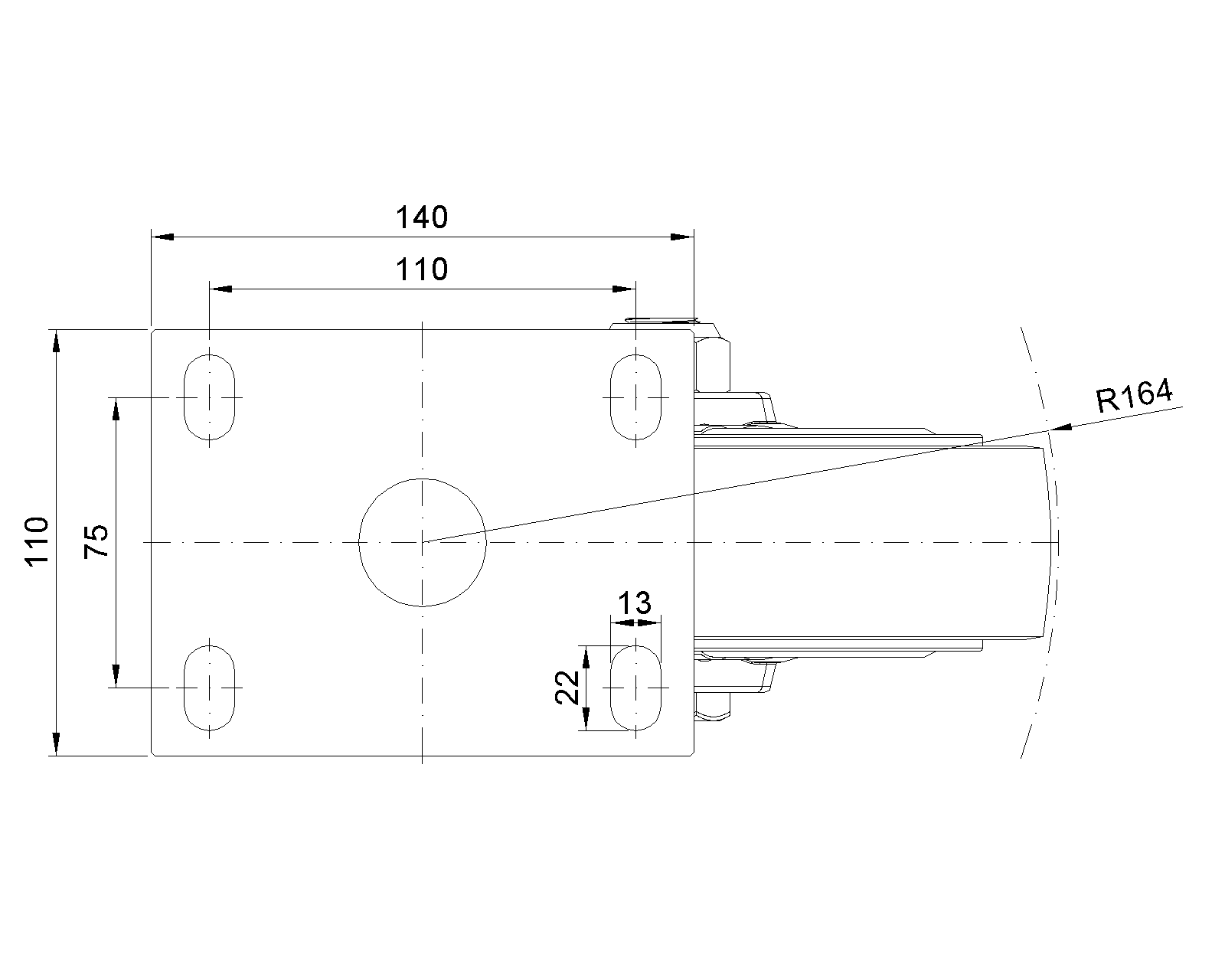

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 328mm　
　　Overall Height 248mm　
　　Swivel Radius 164mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.59kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1102 B Type Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800334171A
200 mm 450 Kgs 248 mm

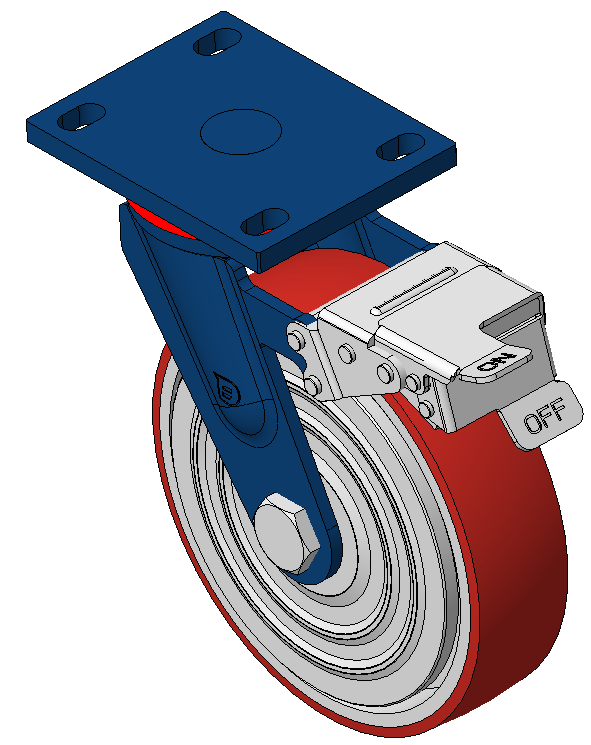

Front Brake Locking system, Welded Caster Fork, blue painted finish Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron Wheel Center, High Quality Polyurethane tread, Cast Iron red Bearing—Ball Bearing
1102 B Type Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800334181
200 mm 450 Kgs 248 mm

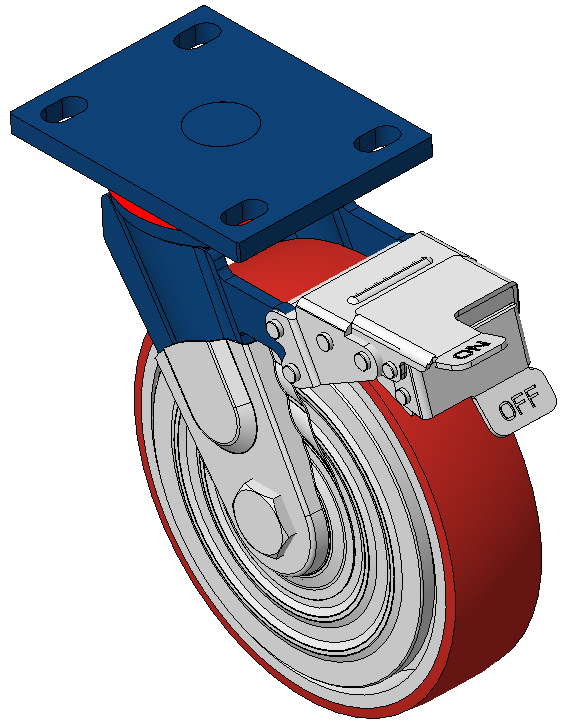

Casters with Front Brake locking system, Welded Caster Fork, blue paint surface Baseboard Mounting Type, Hole spacing 110x75 Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron red Bearing—Ball Bearing, with special Anti-thread wheel covers
1102 B Type Caster Series
PU (red round) Wheel Diameter x Wheel Width 200 x 50mm
KS-11020800332111
200 mm 450 Kgs 248 mm

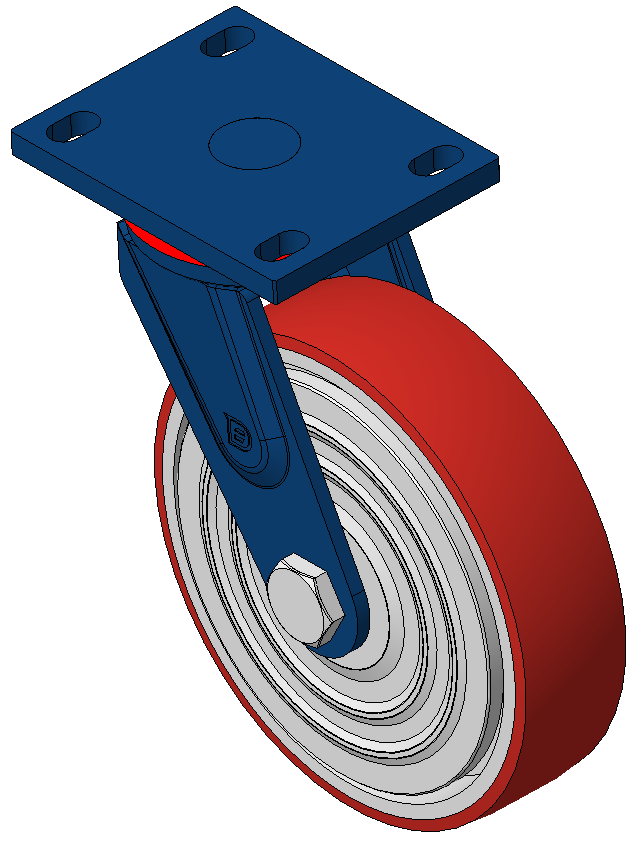

Swivel Caster with Welded Caster Fork, blue painted finish. Mounting Type - Top Plate, 110x75 Bolt Hole Spacing. Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red. Bearing—Ball Bearing.
