    Product Data Sheet
1102 B Type Caster Series
　　QPU (brown round) Wheel Diameter x Wheel Width 200 x 50mm
　　EAN
　　　　　 KS-11020800532161
　　　　　 　　　

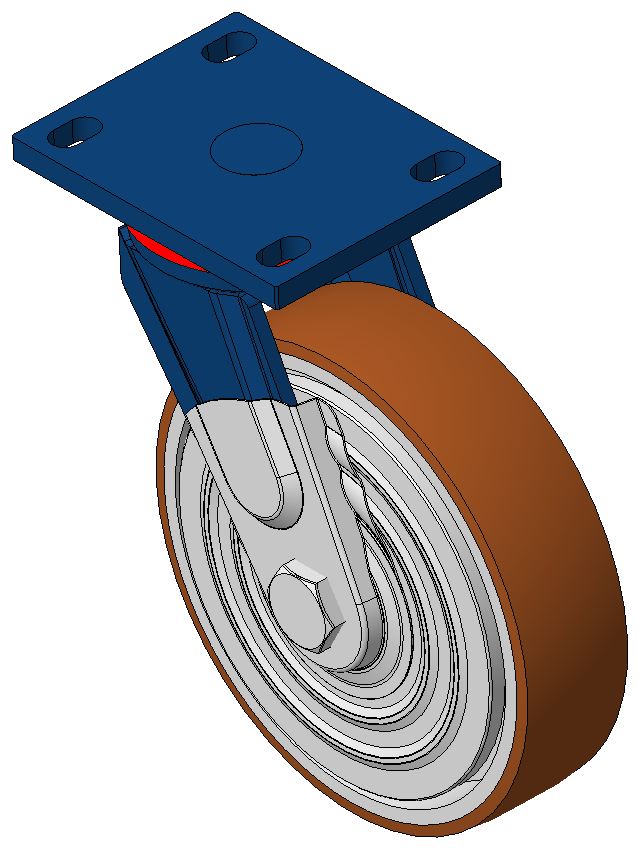

Swivel Caster with Welded Caster Fork, blue paint finish.
Mounting Type - Top Plate, 110x75 Bolt Hole Spacing.
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown.
Bearings—Ball Bearings with special Anti-thread wheel cover.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

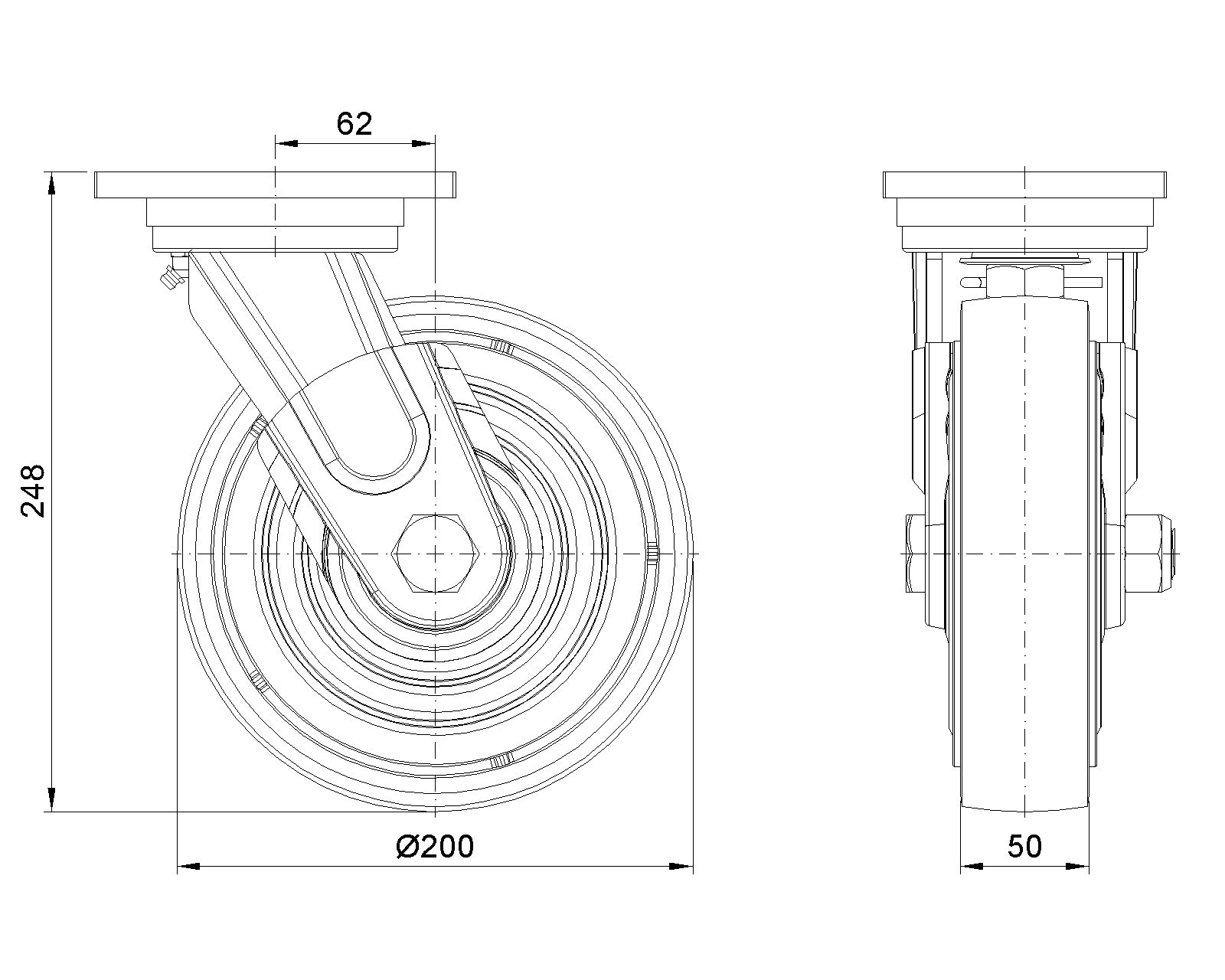

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

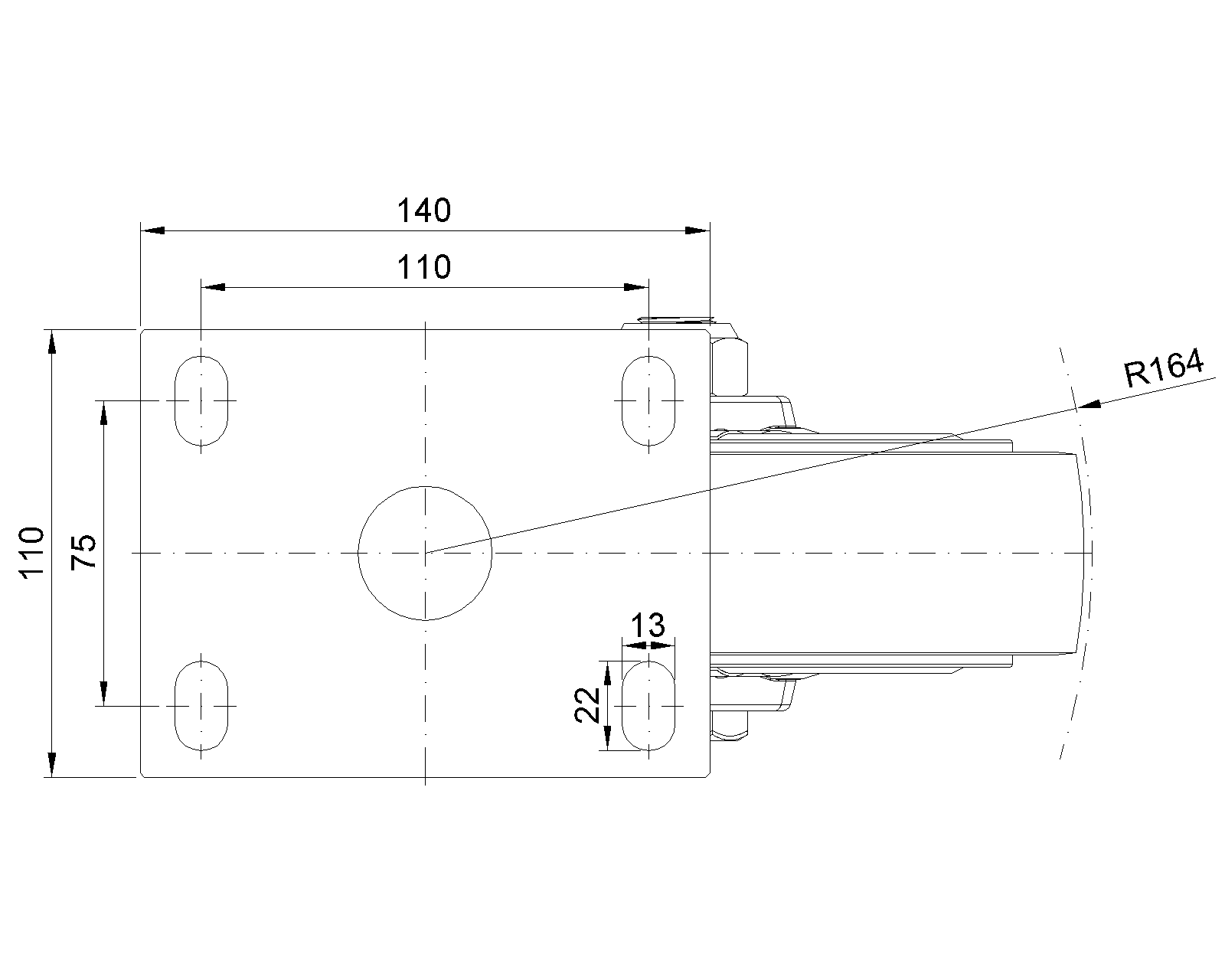

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 62mm　
　　Swivel Interference 328mm　
　　Overall Height 248mm　
　　Swivel Radius 164mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 670kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 1005kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.53kgs　
　　Standard ISO22883
　　
　　
