QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm

Picture may differ from original product

1102 B Type Caster Series

QPU (Brown Flat) Wheel Diameter x Wheel Width 200 x 50mm

KS-11020800531061

Wheel Diameter200mm　8＂

Load Capacity (Dynamic)720kgs　1587lbs

Overall Height248mm　9-15/16＂

Wheel BearingWheels With Ball Bearings

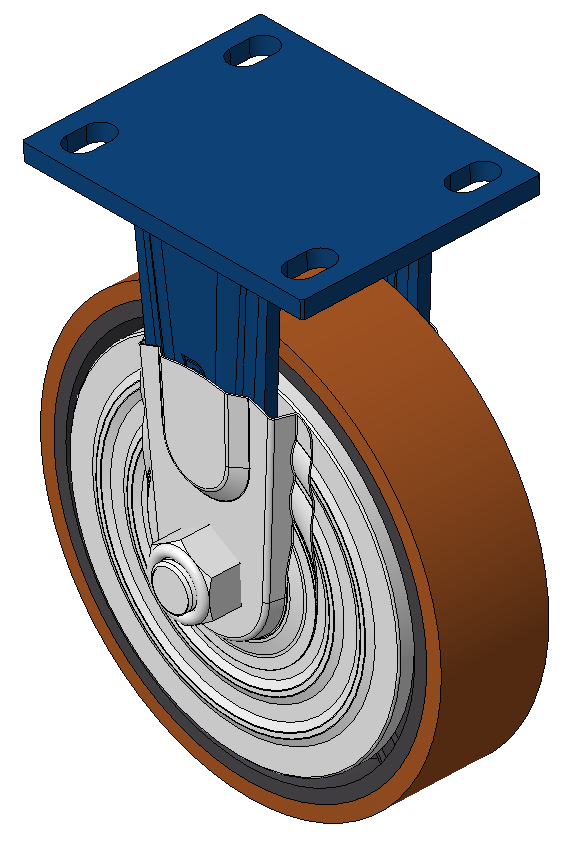

Fixed caster，Welded steel plate bracket，Blue-painted finish
Top plate mounting，Hole spacing 110x75
Cast iron wheel core，High-quality polyurethane tread，Brown
Wheel bearing—Precision ball bearing，With special anti-wrap wheel covers
Tread：High-quality polyurethane tread
Wheel core：Iron/cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

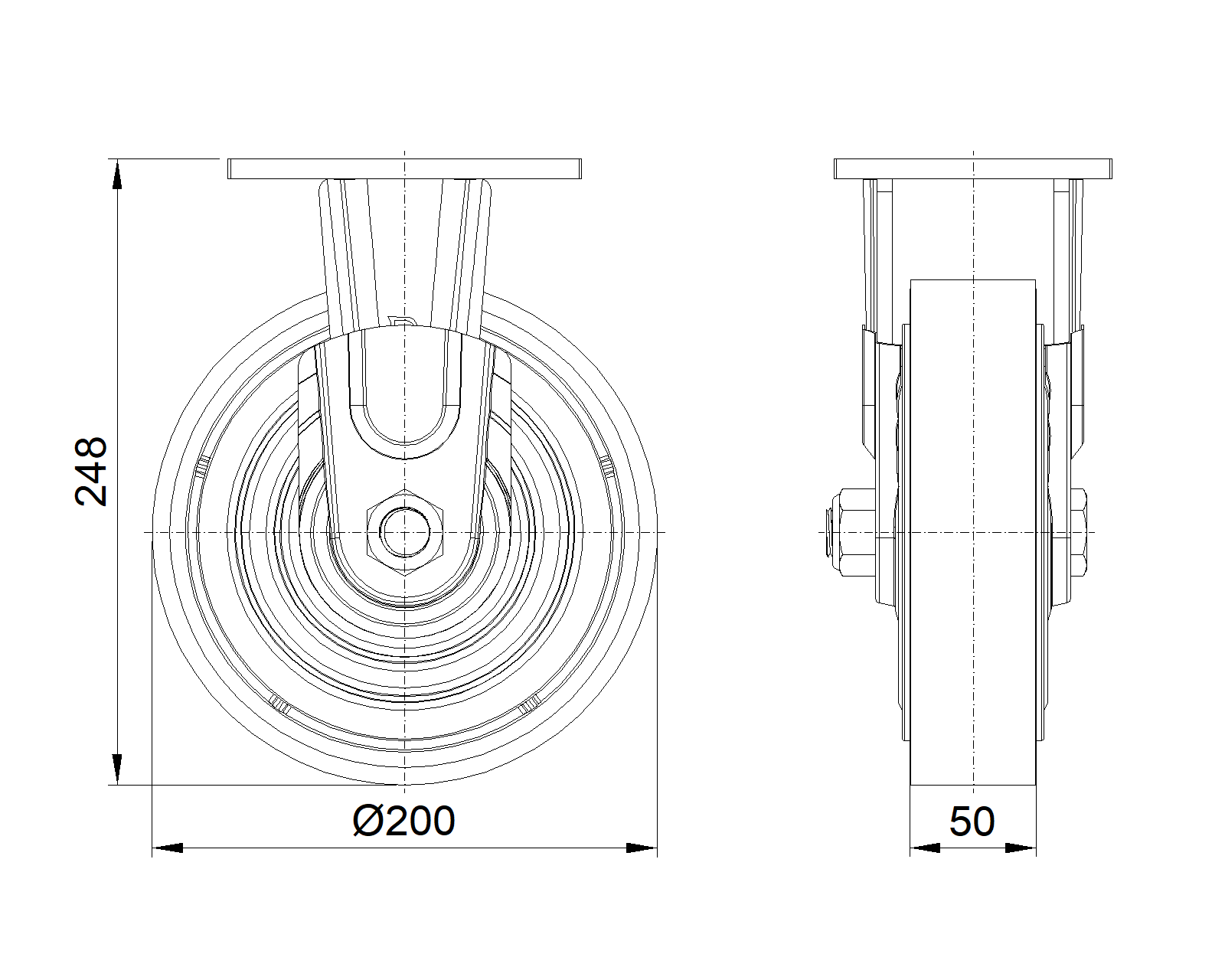

Wheel Diameter: 200mm8＂
Wheel Width: 50mm2＂
Wheel Bearing: Wheels With Ball Bearings

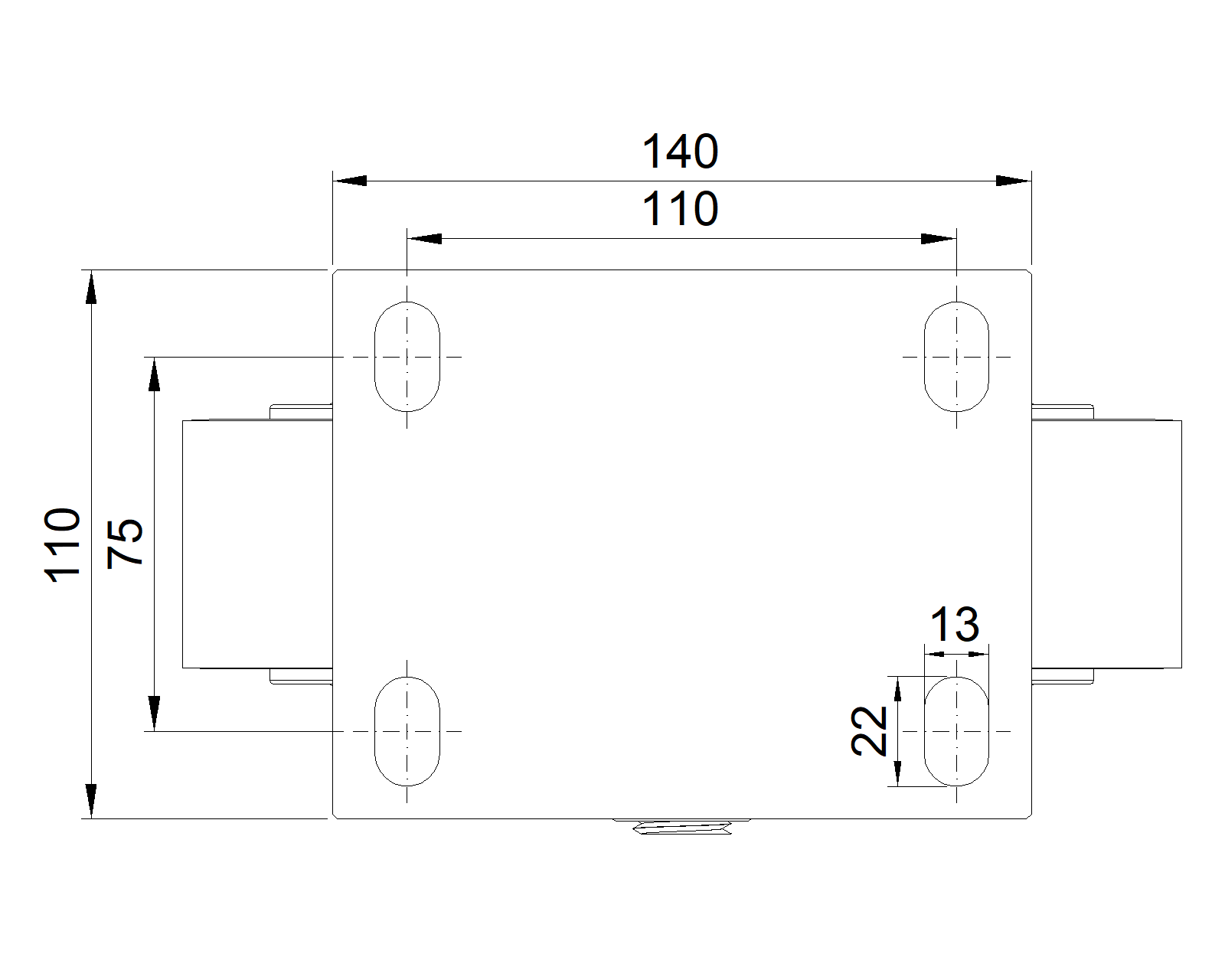

Plate Size: 140 x 110mm5-9/16＂ x 4-3/8＂
Bolt Hole Spacing: 110x75mm4-5/16＂x3”
Plate Hole: 22 x 13mm7/8＂ x 9/16＂
Overall Height: 248mm9-15/16＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 720kgs1587lbs
Load Capacity (Static): 1080kgs2381lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 5.16kgs11.4lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
