    Product Data Sheet
1109 Medium Duty/Low Profile Business Machine Caster Series
　　Nylon Wheel Diameter × Wheel Width 63 x 45mm
　　EAN
　　TW-4110902052003 　　　
　　　　　 　　　

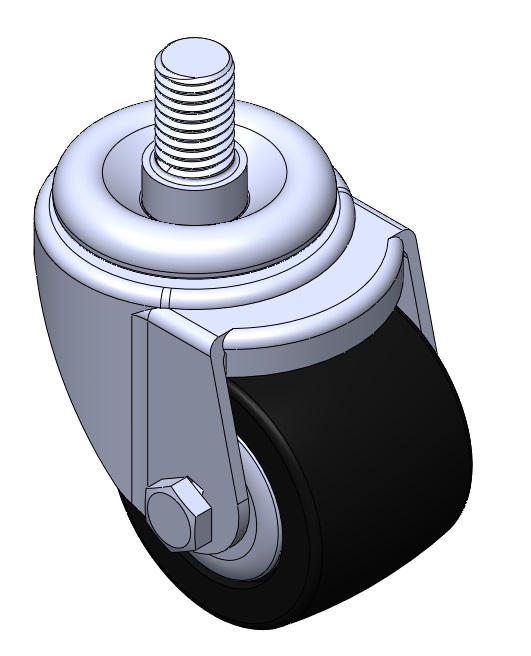

Swivel Caster, Riveted Stamping Fork - 5/8-11 threads
Zine-Plated, Mounting Type - Threaded Stem
Reinforced Polypropylene core and Wheel Tread
Bearing - Ball Bearing
　　Wheel surface: Thermoplastic
　　Wheel Center: Thermoplastic

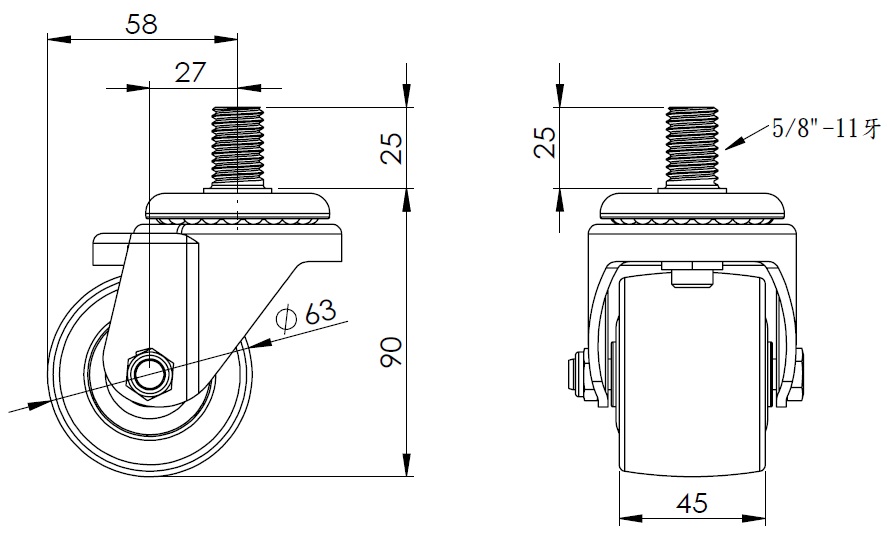

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 63mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings

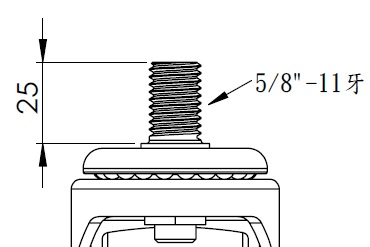

　　Threaded Stem 5/8＂-11牙
　　Threaded Length 25mm
　　Offset 27mm　
　　Swivel Interference 116mm　
　　Overall Height 90mm　
　　Swivel Radius 58mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1109 Medium Duty/Low Profile Business Machine Caster Series
Nylon Wheel Diameter × Wheel Width 63 x 45mm
TW-4110902054020
63 mm 250 Kgs 90 mm

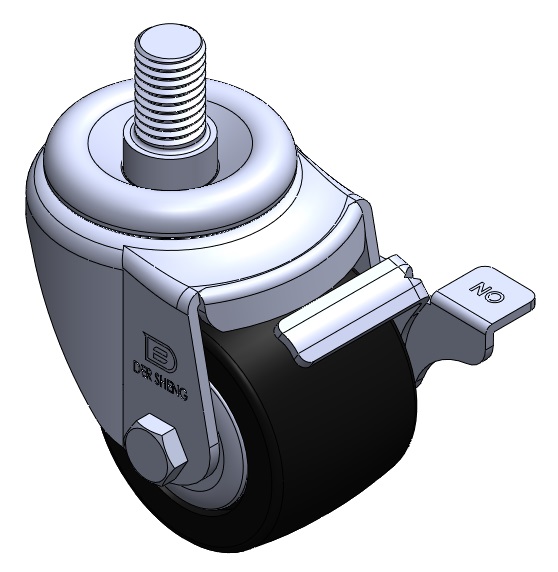

Casters with Side Brakes and With locking system. Stamping, Riveted Fork with 5/8-11 threads.
