Nylon Wheel Diameter × Wheel Width 63 x 45mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

Nylon Wheel Diameter × Wheel Width 63 x 45mm

TW-4110902054020

Wheel Diameter63mm　2-1/2＂

Load Capacity (Dynamic)250kgs　551lbs

Overall Height90mm　3-9/16＂

Wheel BearingWheels With Ball Bearings

Casters with Side Brakes and With locking system. Stamping, Riveted Fork with 5/8-11 threads.
Zine-Plated, Mounting Type - Threaded Stem.
Reinforced Polypropylene Wheel Center and Wheel Tread.
Bearings—Ball Bearings.
Wheel surface: Thermoplastic
Wheel Center: thermoplastic

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

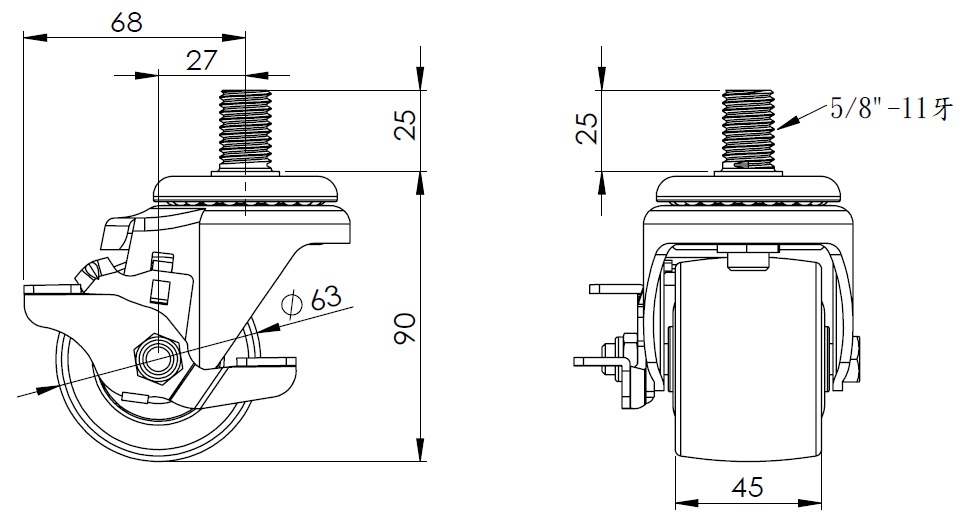

Product Data Sheet

Wheel Diameter: 63mm2-1/2＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

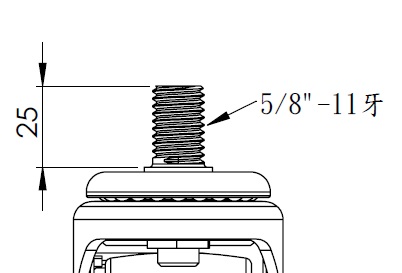

Threaded Stem: 5/8＂-11牙5/8＂-11牙
Threaded Length: 25mm1＂
Offset: 27mm1-1/16＂
Swivel Interference: 136mm5-7/16＂
Overall Height: 90mm3-9/16＂
Swivel Radius: 68mm2-11/16＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 250kgs551lbs
Load Capacity (Static): 375kgs827lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.60kgs1.3lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
