    Product Data Sheet
1109-HD American Mechanical Wheel Series
　　King Kong Wheel Diameter × Wheel Width 63 x 45mm
　　EAN
　　TW-4110902054013 　　　
　　　　　 　　　
Equipped with side (wheel) brakes and a With locking system for the Casters. Riveted and Stamping Top Plate with high-grade perforated holes. Zine-Plated Top Plate, electroplated Top Plate, Mounting Type - Top Plate device. Reinforced Polypropylene and Wheel Tread. Blue Bearing—Ball Bearings.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

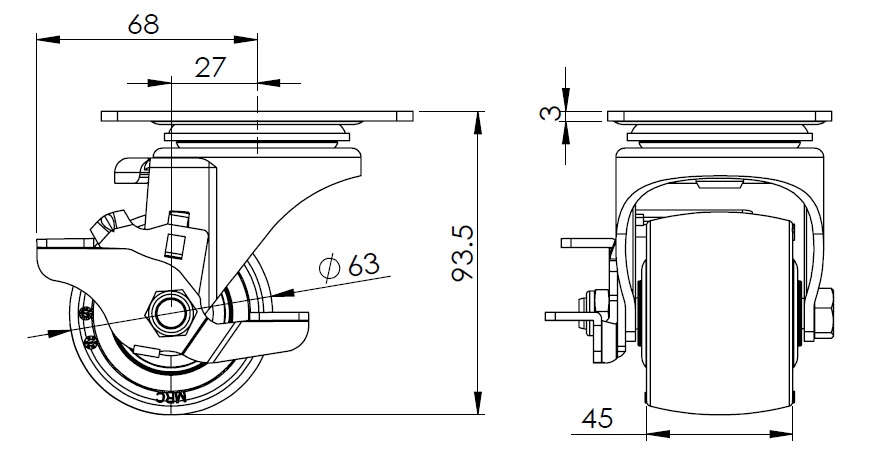

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 63mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings

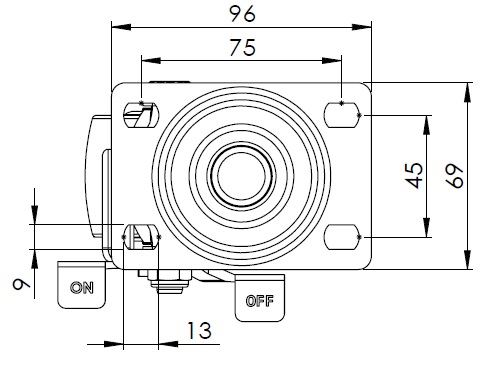

　　Plate Size 96 x 69mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 13 x 9mm　
　　Offset 27mm　
　　Swivel Interference 136mm　
　　Overall Height 93.5mm　
　　Swivel Radius 68mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
