ZQPU (Milled Blue) Wheel Diameter × Wheel Width 50× 20（41.5） mm

Picture may differ from original product

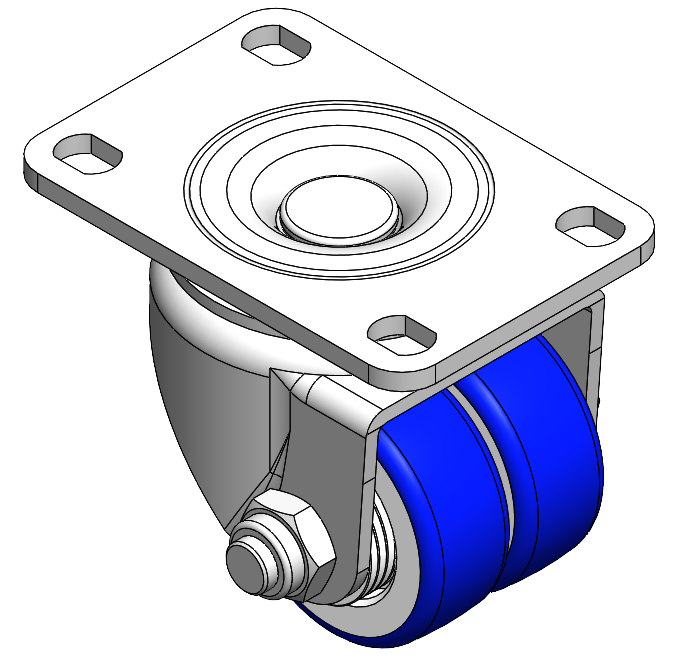

1109 Medium Duty/Low Profile Business Machine Caster Series

ZQPU (Milled Blue) Wheel Diameter × Wheel Width 50× 20（41.5） mm

YJ-11090200802073

Wheel Diameter50mm　2＂

Load Capacity (Dynamic)300kgs　661lbs

Overall Height74mm　3＂

Wheel BearingWheels With Ball Bearings

Portable Casters, Riveted and Stamping Top Plate—high-grade perforated design
Zine-Plated surface, Mounting Type - Top Plate device
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread
Blue finish, Bearing—Ball Bearings.
Wheel surface: High-quality polyurethane
Wheel Center: cast iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

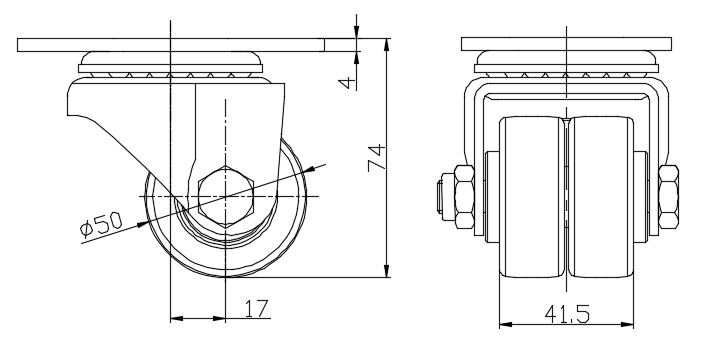

Wheel Diameter: 50mm2＂
Wheel Width: 41.5mm1-11/16
Wheel Bearing: Wheels With Ball Bearings

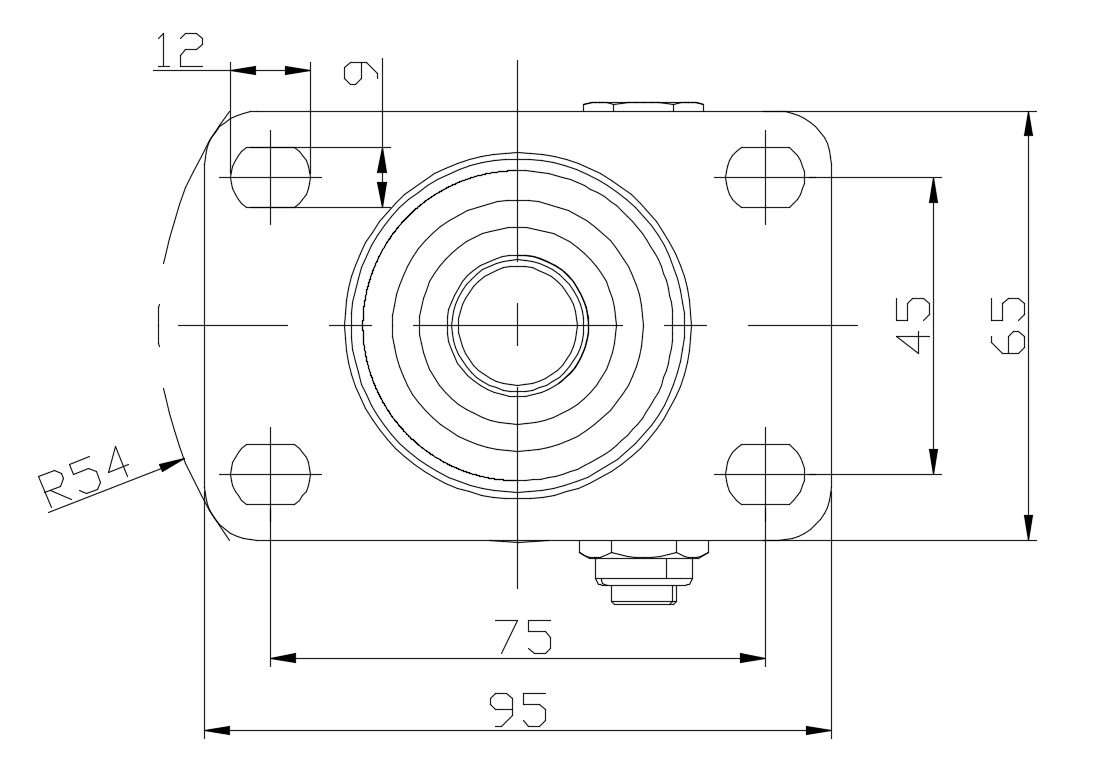

Plate Size: 95 x 65mm3-13/16＂ x 2-9/16＂
Bolt Hole Spacing: 75 x 45mm3＂x 1-13/16＂
Plate Hole: 12 x 9mm1/2＂ x 23/64＂
Offset: 17mm11/16＂
Swivel Interference: 108mm4-5/16＂
Overall Height: 74mm3＂
Swivel Radius: 54mm2-3/16＂
Hardness Of Tread: 87±5° Shore A
Load Capacity (Dynamic): 300kgs661lbs
Load Capacity (Static): 450kgs992lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.8kgs1.8lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
